Accessories for Heating bath HBR 4 control

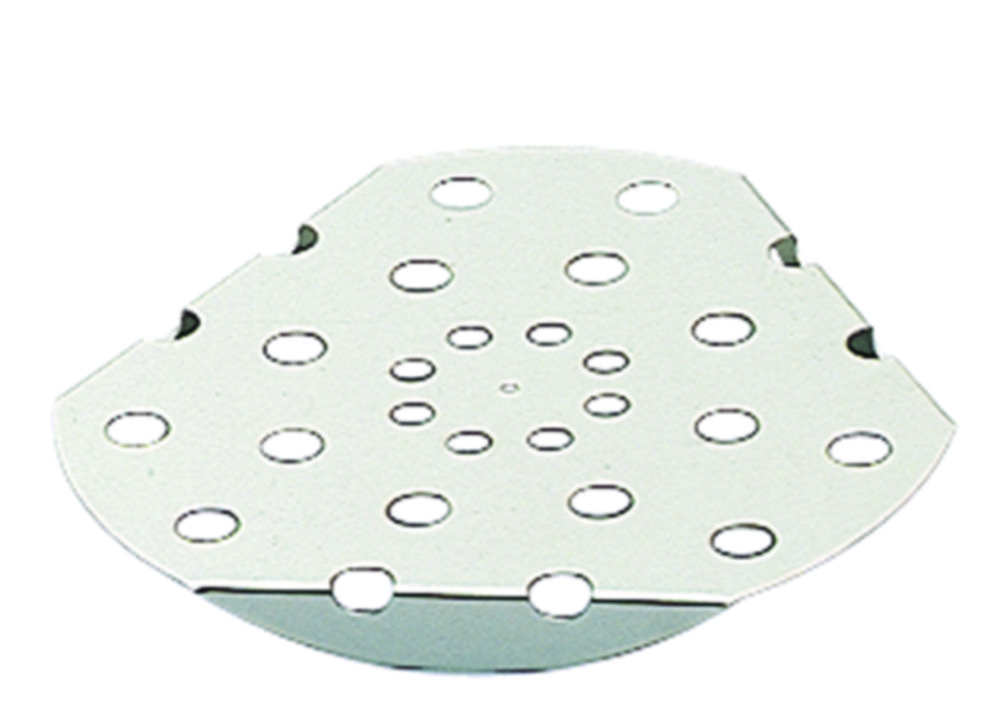

Description:	Intermediate base
Manufacturer Article Number:	0001809700
Type:	H 159
UNSPSC:	41103715

Heating bath liquid, BUDDE

Use:BUDDE heating bath liquid can be used continuously as a heating medium up to approx. 170 °C. Higher temperatures (below flash point) are possible, but will result in rapid darkening. The low pour point allows the bath liquid also to be used as a cooling medium. Mixtures with 10 % to 30 % water achieve best results.The crucial advantages of BUDDE heating bath liquid compared tothe oils or other organic liquid mainly used are:accidental spillage of water into the bath does not lead to dangerous spitting at temperatures over 100 °C, as the water dissolves in the heating bath liquid and subsequently evaporates safelyBUDDE heating bath liquid can easily be rinsed away with water which eases cleaning of laboratory equipment, e.g. distillation flasks, and also bench or floor if the bath liquid is accidentally spilled.BUDDE heating bath liquid does not foam when mixed with water.Viscosity on addition of water:BUDDE heating bath liquid is quite viscous at ambient or low temperatures, and therefore sometimes difficult to dispense. The addition of 10-20 % water reduces the viscosity and enables easier handling. If the mixture is then heated to 100 °C, the water evaporates without boiling. Further heating is only shortly delayed by this. Before next heating, water can be added again.Water solubility: BUDDE heating bath liquid can be mixed with water in any ratio. The hardness of the water has no effect on the bath liquid.

From €189.00*

Sand bath ST with performance control, thermostatic controller and connection cable

For continuous operation. Electrical sand bath with thermostatic temperature control and separate power controller. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7 m. With earthed plug.

From €1,376.00*

Quartz Sand

Annealed quality, 0.1 to 0.5 mm grain size.

From €10.75*

Heating bath HBR 4 control

The heating bath is noted for:Cylindrical bath shapeHeating elements integrated into the bath baseHeat transfer media can be low-viscous oil (50 mPas) or waterTwo carry handlesInfinitely variable safety temperature limiter according to DIN 12877Double-jacketed mantle protection against burnsDigital display for target, actual and safety temperatures as well as speedIntegrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bathRS 232 interface

From €4,802.00*

Sand bath ST with performance control, thermostatic controller and permanent connection

For continuous operation. Electrical sand bath with thermostatic temperature control and separate power controller. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet.

From €1,780.00*

Oil bath for rotary evaporators

This precise digital bath is specifically designed to be used with the Stuart rotary evaporators to give maximum efficiency for the smallest footprint. The clear LED digital display shows the actual bath temperature or the set temperature. Outer case is made from chemically resistant polypropylene.Digital temperature display, display resolution 1 °C, temperature control ±1.5 °C (water), ±3 °C (oil)Corrosion resistant bowlEasy to cleanCool touch outer casePlease note plastic coated glassware is limited to 80°C and therefore unsuitable for use with the oil bath.

From €1,121.90*

Heating Bath HB eco

Compact and ergonomic heating safety bath.Ergonomic handlesClear, black-and-white displayAlternating set-point/actual temperature displayUSB interface

From €1,431.00*

Heating bath HB 1500

The heating bath HB 1500 is developed for varied tasks. The bath can be filled with water, oil or sand. Modern microprocessors control the temperature. With measuring circuit monitoring for over- and under-temperature, sensor and line short-circuit, as well as sensor and line breakage.Microprocessor controller with 4-digits 7-segment display, 10 mm high, greenFreely configurableSelf-optimising temperature controlMeasuring and control range up to 260 °CSetting of heating power from 1 to 99 %Overtemperature switch-off >10 K + setpointWear-free internal temperature sensor at the bottom of the potOn-Off switch 2-pole, green, illuminatedSwitchable to external sensorMaterial bath/housing stainless steel, front and rear anodised aluminium

From €1,156.40*

Heating bath HB 1500-S

The heating bath HB 1500-S is developed for varied tasks. The bath can be filled with water, oil or sand. The appliance is equipped with 2 temperature controllers with microprocessor. The upper temperature controller serves as a safety temperature limiter. If the safety temperature is exceeded, the heating is switched off at all poles. The temperature is measured via an internal temperature sensor at the bottom of the pot.Microprocessor controller with 4-digit 7-segment display, 10 mm high, greenFreely configurableSelf-optimising temperature controlMeasuring and control range up to 260 °CSetting of heating power from 2 to 99 %Switchable to external sensorMaterial bath/housing stainless steel, front and rear anodised aluminium

From €1,317.30*

Sand bath SD with performance control and connection cable

For continuous operation. Electrical sand bath with stepless power control. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7 m with earthed plug.

From €1,174.00*

Sand bath SD with performance control and permanent connection

For continuous operation. Electrical sand bath with stepless power control. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet.

From €1,602.00*

Heating bath liquid

From €1,355.00*
