Accessories for Light Microscopes Educational-Line OBE and Lab-Line OBL
Product number:
6285913
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
0.07 kg
Description
Further eyepieces, phase contrast units and filters available on request. Complete fluorescence units for OBL series available on request.
Properties

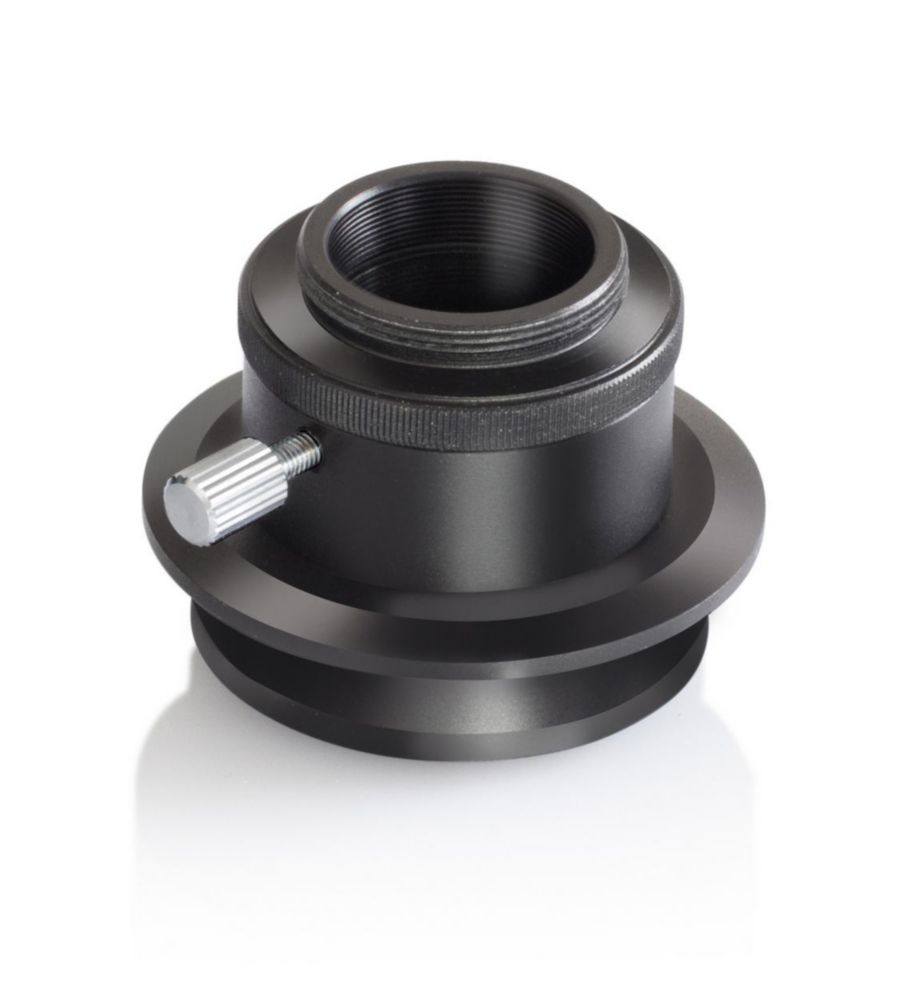

| Description: | C-Mount Adapter: 0.5x with adjustable focus |
|---|---|
| For: | OBE |
| Manufacturer Article Number: | OBB-A1137 |
