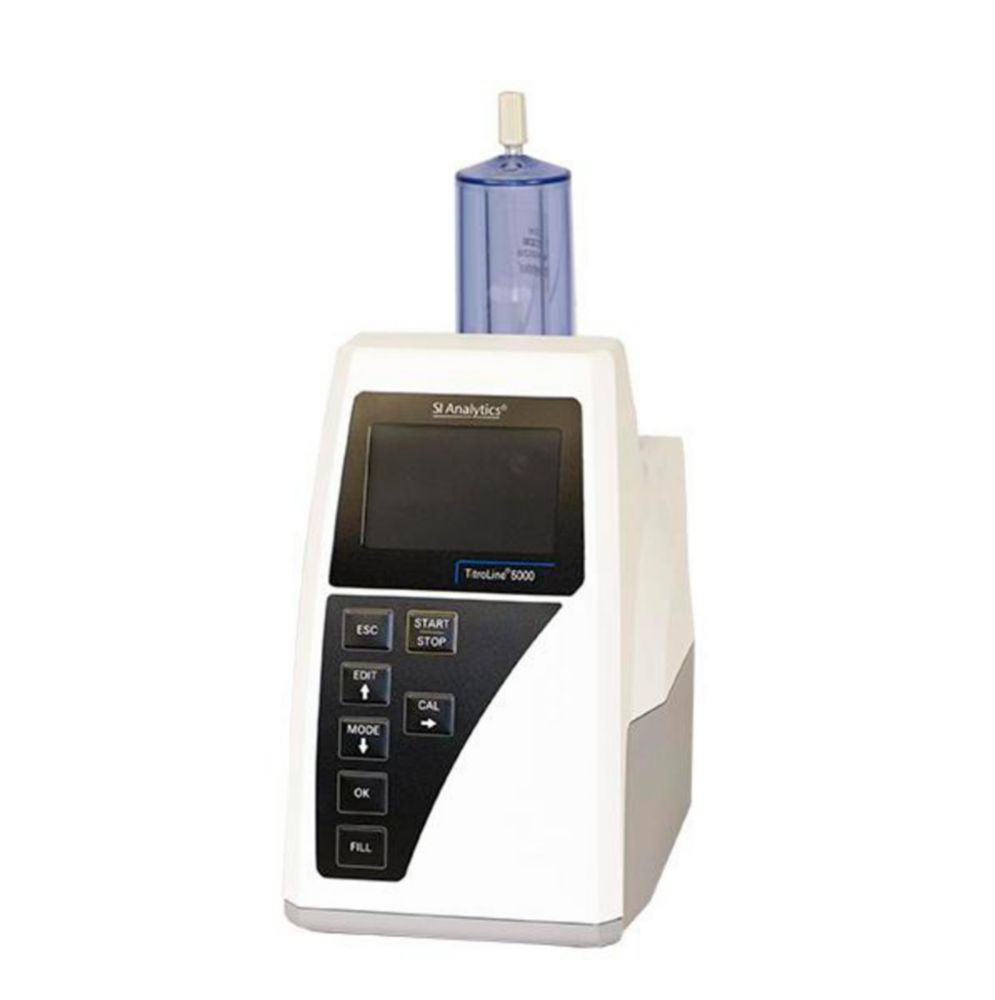

Automatic Titrator TitroLine® 5000, with 20 ml dosing unit

Motor-driven piston burette with 20 or 50ml dosing unit. For manual titrations and highly precise dosing tasks. The TITRONIC® 300 can be completely controlled from a PC via the USB- or RS-232-interface. Up to 16 burettes can be connected to one another via the RS232 interface according to the daisy chain principle. The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB).Graphics-capable TFT displayFill time: 30 secs. to 999 secs. adjustable (time depends on cylinder volume)Conformity: ISO 8665, Part 6Scope of supply: Basic unit without magnetic stirrer with ready to use assembled dosing unit with hoses, fittings and titration tip, controller TZ 3880, titration clamp Z 305, stand rod TZ 1748 and power supply 100-240 V

For Mettler-Toledo titrators.

Automatic titrators for redox and ion titrations.Create up to ten user-defined methodsSaves up to 100 titration data sets with date/time stampEasy data transfer to printer, computer or USB driveProgramming of automated titration sequencesTitrations can be performed unattendedShowcase titrations, onscreen instructions and help menus on a large color graphic touchscreen displayEasy to replace titrator partsLong lasting electrodesDisplay results in real time, in summary table and in data log (up to 100 entries)Tested and validated pre-defined methods can be loaded onto the titratorTitration of acidity of juices and wines, acidity of food, alkalinity of water, acidity and alkalinity of consumer goods, total acid number (TAN) and total base number (TBN)Scope of supply:START9100: Titrator incl. 20 ml burette, stirrer probe, dispenser probe, standard tubing kit, 1 l plastic bottle, GL38 bottle cap with drying tube, computer cable, manual on USB drive, 110-240 V power supplySTART9101: As START9100, additionally with ROSS Ultra pH electrode and probe for temperature compensation (ATC)START9102: As START9100, additionally with ROSS Sure-Flow pH electrode and probe for temperature compensation (ATC)SpecificationsTitration precision:±0.5 % RSDSpeed of stirrer probe:250 ... 3700 rpm, 5 selectable speedspH range: Resolution: Rel. accuracy:0 ... 14 0.001 / 0.01 / 0.1 (selectable) ±0.002 pHpH calibration mode:1 to 5 pointsmV range: Resolution: Rel. accuracy:-2000.0 ... +2000.0 mV 0.1 mV ±0.2 mVTemperature range: Resolution: Rel. accuracy:-5,0 ... 100.0 °C 0.1 °C ±0.2 °CDisplay:5.7'' Touchscreen, 640 x 480 resolutionBurette sizes:10 ml, 20 ml, 50 mlBurette resolution:25,600 micro-steps per motor revolution 2 million micro-steps over full stroke rangeDosing accuracy:Acc. to ISO 8655-3Dimensions (W x D x H):406 x 254 x 356 mmWeight:5.67 kgPower supply:100 ... 240 V, 50/60 HzCertification:TÜV 3-in-1, FCC, EN/EIC 61326-1, IEC 61010, IP-51

TitroLine® 7750 is the all-rounder for both potentiometric titration and volumetric KF titration. The TitroLine® 7750 combines the features of the potentiometric titrator TitroLine® 7000 and the volumetric Karl Fischer titrator TitroLine® 7500.Highly visible full color display, that can be easily viewed from a distance and extreme anglesWith new interchangeable modules (5, 10, 20, 50 ml) which all relevant reagent and unit data can be storedThanks to the 2 x USB-host, 1 x USB-PC and 2 x RS232 ports, very communicable. Connect for example, USB keyboard, USB printer, barcode reader, USB flash drives, balances, PC und further SI Analytics devices such as piston burettes and sample changersStorage of results via USB and LAN port (PDF and CSV -format) including method transferWith standard methods for potentiometric and KF titrationMeasuring input pH/mV: pH/mV-input with DIN or BNC socket, TitroLine® 7750 additionally with ID function for automatic detection of electrodeMeasuring input Dead Stop: µA-input for double platinum electrode (socket 2 x 4 mm), pole voltage adjustableTemperature: for resistance probes Pt 1000/NTC 30 kOhm (socket: 2 x 4 mm)Scope of supply: Basic unit with magnetic stirrer TM 235, with stand rod TZ 1510, titration clamp Z 305, keyboard TZ 3835 and power supply 100-240 V

TitroLine® 7750 is the all-rounder for both potentiometric titration and volumetric KF titration. The TitroLine® 7750 combines the features of the potentiometric titrator TitroLine® 7000 and the volumetric Karl Fischer titrator TitroLine® 7500.Highly visible full color display, that can be easily viewed from a distance and extreme anglesWith new interchangeable modules (5, 10, 20, 50 ml) which all relevant reagent and unit data can be storedThanks to the 2 x USB-host, 1 x USB-PC and 2 x RS232 ports, very communicable. Connect for example, USB keyboard, USB printer, barcode reader, USB flash drives, balances, PC und further SI Analytics devices such as piston burettes and sample changersStorage of results via USB and LAN port (PDF and CSV -format) including method transferWith standard methods for potentiometric and KF titrationMeasuring input pH/mV: pH/mV-input with DIN or BNC socket, TitroLine® 7750 additionally with ID function for automatic detection of electrodeMeasuring input Dead Stop: µA-input for double platinum electrode (socket 2 x 4 mm), pole voltage adjustableTemperature: for resistance probes Pt 1000/NTC 30 kOhm (socket: 2 x 4 mm)Scope of supply: Basic unit without magnetic stirrer, with stand rod TZ 1510, titration clamp Z 305, keyboard TZ 3835 and power supply 100-240 V

TitroLine® 7750 is the all-rounder for both potentiometric titration and volumetric KF titration. The TitroLine® 7750 combines the features of the potentiometric titrator TitroLine® 7000 and the volumetric Karl Fischer titrator TitroLine® 7500.Highly visible full color display, that can be easily viewed from a distance and extreme anglesWith new interchangeable modules (5, 10, 20, 50 ml) which all relevant reagent and unit data can be storedThanks to the 2 x USB-host, 1 x USB-PC and 2 x RS232 ports, very communicable. Connect for example, USB keyboard, USB printer, barcode reader, USB flash drives, balances, PC und further SI Analytics devices such as piston burettes and sample changersStorage of results via USB and LAN port (PDF and CSV -format) including method transferWith standard methods for potentiometric and KF titrationMeasuring input pH/mV: pH/mV-input with DIN or BNC socket, TitroLine® 7750 additionally with ID function for automatic detection of electrodeMeasuring input Dead Stop: µA-input for double platinum electrode (socket 2 x 4 mm), pole voltage adjustableTemperature: for resistance probes Pt 1000/NTC 30 kOhm (socket: 2 x 4 mm)Scope of supply: Basic unit with magnetic stirrer TM 235, with stand rod TZ 1510, titration clamp Z 305, keyboard TZ 3835 and power supply 100-240 V, software TitriSoft 3.5

Very compact titrator for simple routine titrations. Thanks to the standard methods the creating of methods is no longer required. Just load the method and press the start button. GLP compliant results with titration curve can be documented on a connected printer or USB-memory stick.Colour TFT display, excellent readability even from the sideStorage of results as PDF and CSV on USB stickPre-installed standard methodsMeasuring input electrode: pH/mV-input with DIN or BNC socketMeasuring input Pt 1000/NTC 30: Temperature sensor connection for resistance probes Pt 1000 or NTC 30 (socket: 2 x 4 mm)Interfaces: 1 x USB A und 1 x USB-B, 2 x RS-232-CDosing units: 20 ml or 50 ml dosing unit, interchangeableConformity: ISO 8655, part 6Following titration modes are possible:Titrations to pH, mV and µA endpoint (2 EP)Titrations to one equivalence point (pH und mV) with dynamic or linear titration additionManual titrations with the controllerDosing tasksNumber of methods: 5Typical applications for the TitroLine® 5000 are:Salt content in foodstuffs (cheese, soy sauce, ketchup)Total acidity in wine and beveragesNitrogen according to KjeldahlChloride in drinking water and other samplesAlkalinity (p + m-value)FOS/TACScope of supply: Basic unit without electrode, with ready to use assembled 50 ml dosing unit TZ 3160 with hoses, fittings and titration tip, controller TZ 3880, titration clamp Z 305, stand rod TZ 1748 magnetic stirrer TM 50 and power supply 100-240 V

Very compact titrator for simple routine titrations. Thanks to the standard methods the creating of methods is no longer required. Just load the method and press the start button. GLP compliant results with titration curve can be documented on a connected printer or USB-memory stick.Colour TFT display, excellent readability even from the sideStorage of results as PDF and CSV on USB stickPre-installed standard methodsMeasuring input electrode: pH/mV-input with DIN or BNC socketMeasuring input Pt 1000/NTC 30: Temperature sensor connection for resistance probes Pt 1000 or NTC 30 (socket: 2 x 4 mm)Interfaces: 1 x USB A und 1 x USB-B, 2 x RS-232-CDosing units: 20 ml or 50 ml dosing unit, interchangeableConformity: ISO 8655, part 6Following titration modes are possible:Titrations to pH, mV and µA endpoint (2 EP)Titrations to one equivalence point (pH und mV) with dynamic or linear titration additionManual titrations with the controllerDosing tasksNumber of methods: 5Typical applications for the TitroLine® 5000 are:Salt content in foodstuffs (cheese, soy sauce, ketchup)Total acidity in wine and beveragesNitrogen according to KjeldahlChloride in drinking water and other samplesAlkalinity (p + m-value)FOS/TACScope of supply: Basic unit, with ready to use assembled 50 ml dosing unit TZ 3160 with hoses, fittings and titration tip, controller TZ 3880, titration clamp Z 305, stand rod TZ 1748 magnetic stirrer TM 50 and power supply 100-240 V, pH combination electrode A 7780 NTC30 DIN N, buffer set

Titration sensor made of glass for reliable results in routine applications for acid/base titration. With fixed BNC cable. For aqueous media.
