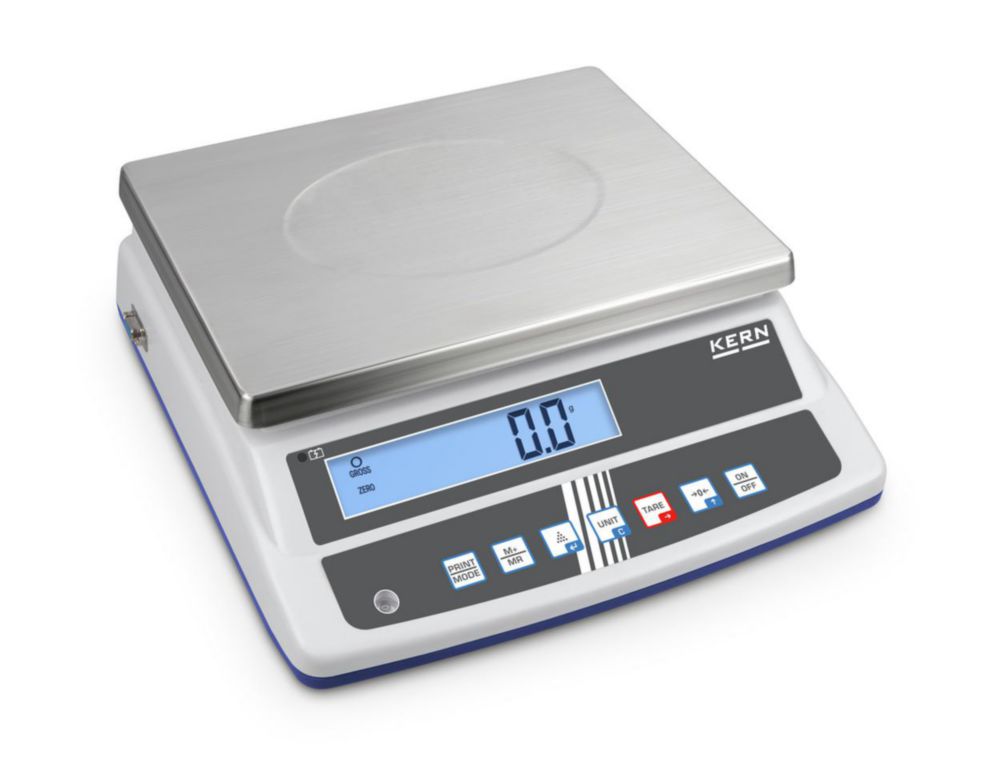

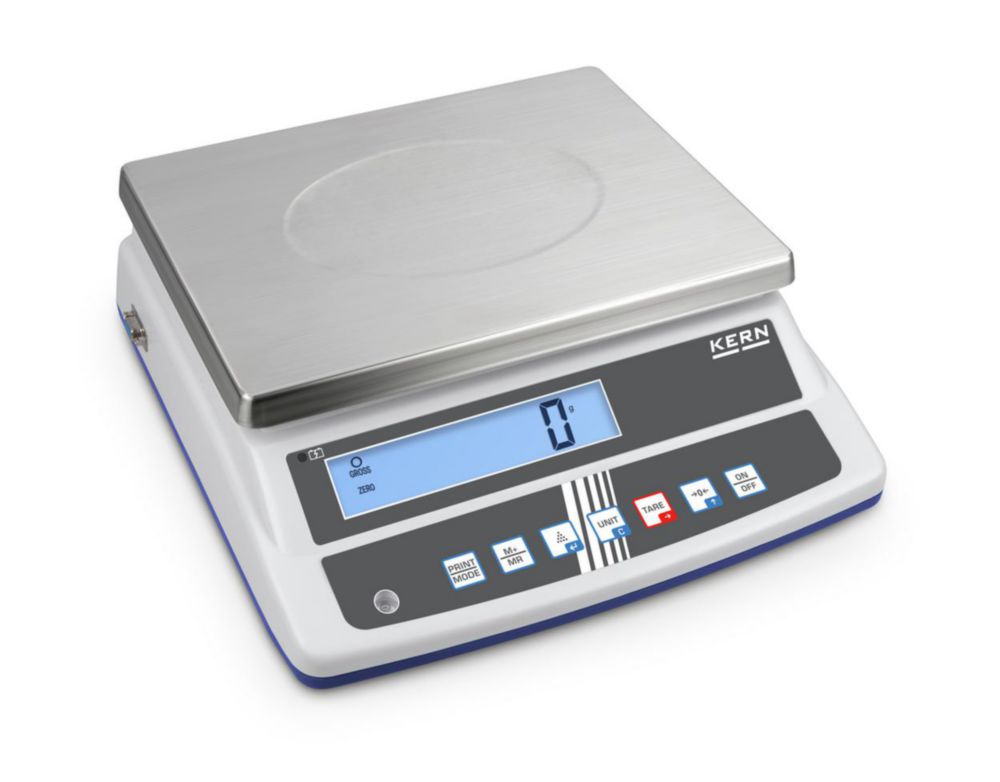

Bench balances FCD
Product number:
4709479
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
3.2 kg
Description
Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department, etc.). A visual and audible signal helps with portioning, dispensing or grading.
- LCD display
- Interfaces RS-232
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 3.7 V, Li Ion |
| Depth: | 320 mm |
| Depth weighing plate: | 300 mm |
| Dimensions (WxDxH): | 340 x 320 x 110 mm |
| Electrochemical system: | Li Ion |
| Height: | 110 mm |
| Linearity: | ±3 g |
| Manufacturer Article Number: | FCD 30K-2 |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 30000 g |
| Max. voltage: | 240 V |
| Max. voltage battery/rechargeable battery: | 3.7 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/CH |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 1 g |
| Reproducibility: | 1 g |
| Type: | FCD 30K-2 |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41111517 |
| Warranty: | 2 years |
| Weighing plate (WxD): | 230 x 300 mm |
| Weight: | 3.2 kg |
| Width: | 340 mm |
| Width weighing plate: | 230 mm |
