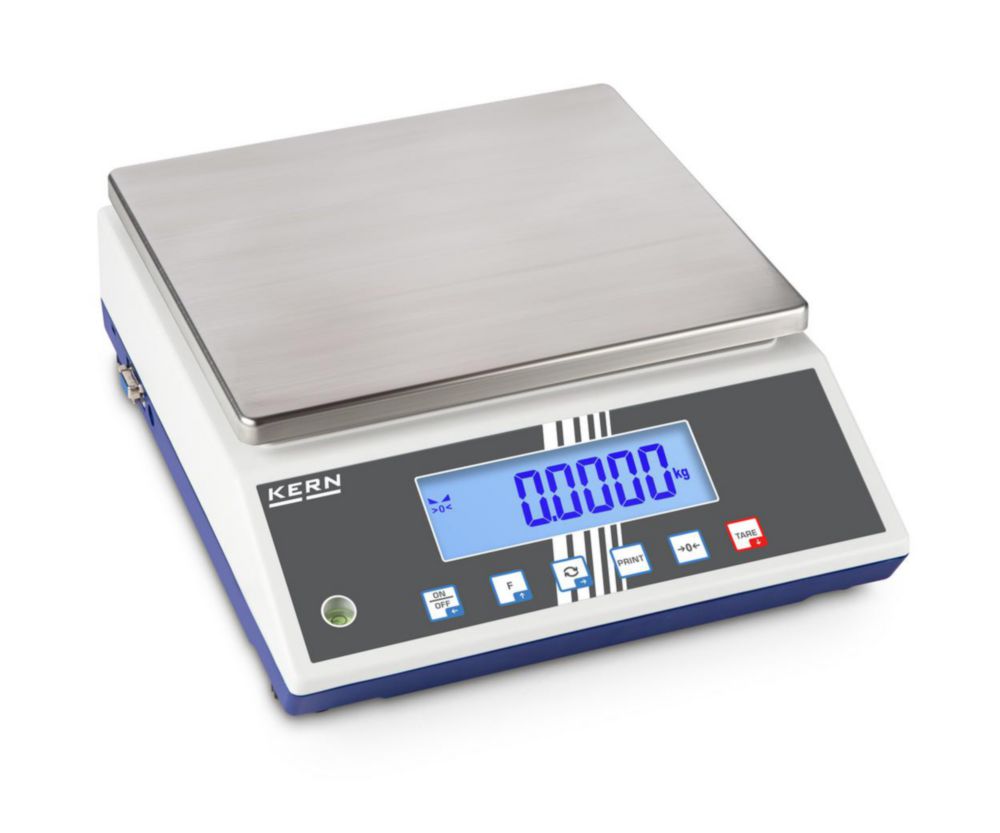

Bench scales FCB, IoT-Line
Product number:
4691225
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
3.839 kg
Description
KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet without any installation outlay. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers. A visual and audible signal helps with portioning, dispensing or grading.
Scope of supply: Bench scale, protective working cover
- Backlit LCD display
- Compact construction
- Battery or rechargeable battery operation (optional)
Scope of supply: Bench scale, protective working cover
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 270 mm |
| Depth weighing plate: | 225 mm |
| Dimensions (WxDxH): | 325 x 270 x 105 mm |
| Height: | 105 mm |
| Linearity: | ±0,3 g |
| Manufacturer Article Number: | FCB 12K-4 |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 12 kg |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,1 g |
| Reproducibility: | 0,1 g |
| Type: | FCB 12K-4 |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LCD |
| UNSPSC: | 41111517 |
| Verified calibration: | Not verifiable |
| Warranty: | 2 years |
| Weighing plate (WxD): | 252 x 225 mm |
| Weight: | 3.8 kg |
| Width: | 325 mm |
| Width weighing plate: | 252 mm |
