Cold trap CT50 Single OLÉ

Various collection, evaporator and powder flasks available on request.

Available as hand or motor liftClear digital display for monitoring the current values and separate button to display the set valuesTwo separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indicationActivated lock feature prevents inadvertent adjustmentsResidual heat indicator when >50 °CStandby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift modelsErgonomically optimized heating bath handles sit securely in your handEasily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°Grease-free operation thanks to innovative sealing technologyVentilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valveOptional cable extension. The operating panel can be detached for use outside closed fume hoodsScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.Available as hand or motor liftClear digital display for monitoring the current values and separate button to display the set valuesTwo separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indicationActivated lock feature prevents inadvertent adjustmentsResidual heat indicator when >50 °CStandby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift modelsErgonomically optimized heating bath handles sit securely in your handEasily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°Grease-free operation thanks to innovative sealing technologyVentilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valveOptional cable extension. The operating panel can be detached for use outside closed fume hoodsScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.

Every Rotary Evaporator Rotavapor® R-300 will be delivered with a transparent PLASTIC+GLAS (P+G) safety coating, a vertical glass assembly (V), NS29/32, and a vacuum pump V-300. Interface, heating bath and recirculating chiller could be chosen from the options below.InterfaceOption S: I-300, with VacuBox, Woulff bottle. Operation by navigation knob and function keys. Wide range of operating modes (manual, timer, solvent library, automatic distillation, drying). Compatible with BUCHI Rotavapor App for mobile push notifications and remote monitoring.Option P: I-300 Pro, with VacuBox, Woulff bottle. Operation by touch screen or navigation knob. Wide range of operating modes (methods, manual, timer, solvent library, automatic distillation, drying). Charting and recording possibilities (on SD card). Compatible with BUCHI Rotavapor App for mobile push notifications and remote monitoring (including charting).Vacuum pumpV-300 (1.8m3/h, 5mbar) is a chemically resistant PTFE diaphragm vacuum pump with transparent front panel to observe the membrane for highest distillation efficiency. Final vacuum: 5 mbar (±2 mbar). Suction capacity: 1.8 m3/h. Speed-controlled operation.Recirculating chiller F-305Ecological recirculating chiller. Cooling capacity: 550 W at 15 °C. Temperature range: - 10 °C to +25 °C. Rotation knob for set temperature in steps of 0.1 °C. Lock of cooling temperature. In combination with Interfaces I-300 / I-300 Pro: Temperature setting/monitoring via interface, energy-saving eco-mode and automatic ON/OFF.Heating BathOption 1: B-301. Temperature range of 20 °C to 95 °C (water). Max. evaporating flasks size: 1000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature. Fast heat up time.Option 2: B-305. Temperature range of 20 °C to 220 °C. Max. evaporating flasks size: 5000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature.

Complete solution for a rotary evaporator setup with the manual base unit including heating bath HB digital and vertical glassware. Digital displays for rotation speed and heating bath temperature allow optimal control of all distillation processes.With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, stand pole RV 8.3, hose set RV 10.5005, data cable PC 1.3

Complete solution for a rotary evaporator setup with the robust and reliable companion for all distillation tasks including heating bath HB digital and vertical glassware. This rotary evaporator is characterised by innovative features and remote control of the various components as well as increased safety through motor-driven lift, safety temperature circuit and dry-running protection.With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, table stand VC 10.400, hose set RV 10.5005, data cable PC 1.3

The rotary evaporator R-300 meets the highest needs in convenience, productivity and versatility. The rotation speed, heating temperature and lift position is shown digitally on the integrated display. Automatic change of the direction of rotation programmable.Lift SystemOption 1: Manual liftOption 2: Electronic liftHeating BathOption 1: B-301. Temperature range of 20 °C to 95 °C (water). Max. evaporating flask size: 1000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature. Fast heat up time.Option 2: B-305. Temperature range of 20 °C to 220 °C. Max. evaporating flask size: 5000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature.Standard JointSJ 29/32Glass AssemblyOption V: Vertical condenser (V): Vertical condenser used along with a recirculating chiller or tap water.Option C: Cold trap (C): Cold trap used for low boiling solvents along with e.g. dry ice for cooling.Other glass assembly configuration on requestProtective CoatingOption: Transparent PLASTIC+GLASS (P+G) safety coating. Protect against mechanical damage. In the event of breakage there is no loss of sample.

The RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio. 4 l water heating bath with digital temperature display and carrying handlesMechanical lift end-point safety stopLocking mechanism: red indicator shows unlocked position of the vapor tubeManual lift for precise positioning of the glassware, single-handed, suitable for left and right-handed operatorsAdjustable immersion angleStepless speed setting with dial control and speed displayFlask clamping mechanism with integrated push-off function for easy exchange of evaporation flasksScope of supply: Rotary evaporator RV 3 V-C, heating bath HB eco, vertical coated glassware RV 10.10

This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.Available as hand or motor lift5'' touch display for controlling the entire system including the vacuum and the cooling temperatureFor precise monitoring, the pictogram on the-display also symbolizes active functionsSeparate knobs for quick access: the right one for direct vacuum control, the left one for the rotationSetting of values either via the touch display or the separate quick access knobsDirect access to two favorites on the start screenExpandable solvent library: user defined favorites can be transfered to other devices using a USB stickUser defined evaporation processes (ramps) can be defined and savedAutomatic evaporation with the Dynamic AUTOaccurate Program (DAA)USB and Micro SD interfacesScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.Available as hand or motor lift5'' touch display for controlling the entire system including the vacuum and the cooling temperatureFor precise monitoring, the pictogram on the-display also symbolizes active functionsSeparate knobs for quick access: the right one for direct vacuum control, the left one for the rotationSetting of values either via the touch display or the separate quick access knobsDirect access to two favorites on the start screenExpandable solvent library: user defined favorites can be transfered to other devices using a USB stickUser defined evaporation processes (ramps) can be defined and savedAutomatic evaporation with the Dynamic AUTOaccurate Program (DAA)USB and Micro SD interfacesScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.

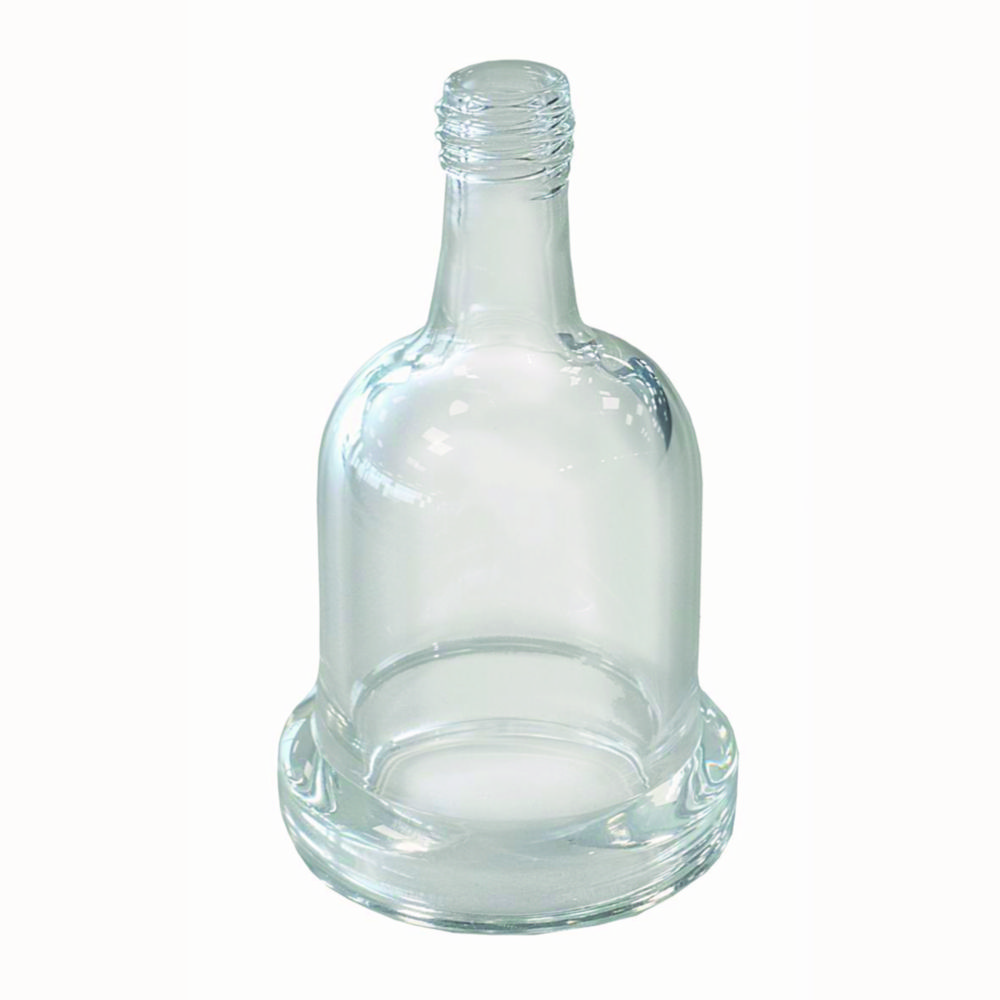

Glass accessory set consists of: glass trap body, 3 way vakuum stopcock adapter, receiving flask (1 l), quick release clamp 100 mm, O-ring DN 100.
