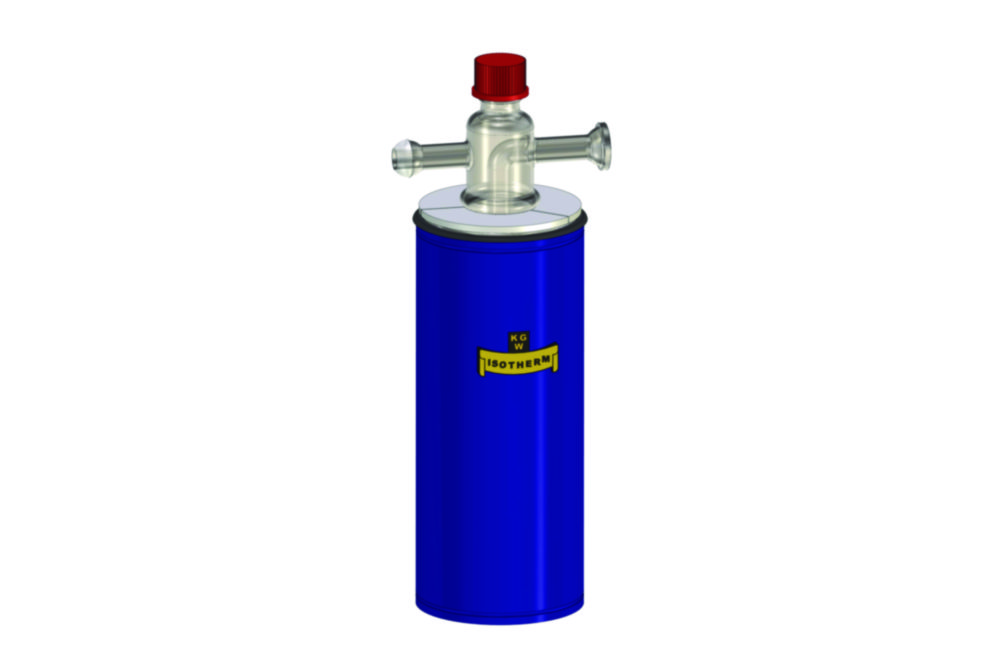

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout
Product number:
9032071
Manufacturer:
KGW Schieder GmbH
Packaging information:
Weight:
2.1 kg
Description
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
Cold traps have an additional glass thread GL 32 with screw cap as a spout.
Versions of the cold trap connections:
Scope of supply: Cold trap, support ring, Dewar flask type 12 C
The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Versions of the cold trap connections:
- S 29 = spherical ground joint S 29
- O 29 = spherical ground joint S 29 with O-ring seal
- GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm
Scope of supply: Cold trap, support ring, Dewar flask type 12 C
The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Properties
| Cold trap joints: | S 29 |
|---|---|
| Condensate capacity ml: | 150 |
| Coolant capacity ml: | 1000 |
| Dewar type: | 12 C |
| Manufacturer Article Number: | 17370 |
| Type: | KF 29-K-A |
