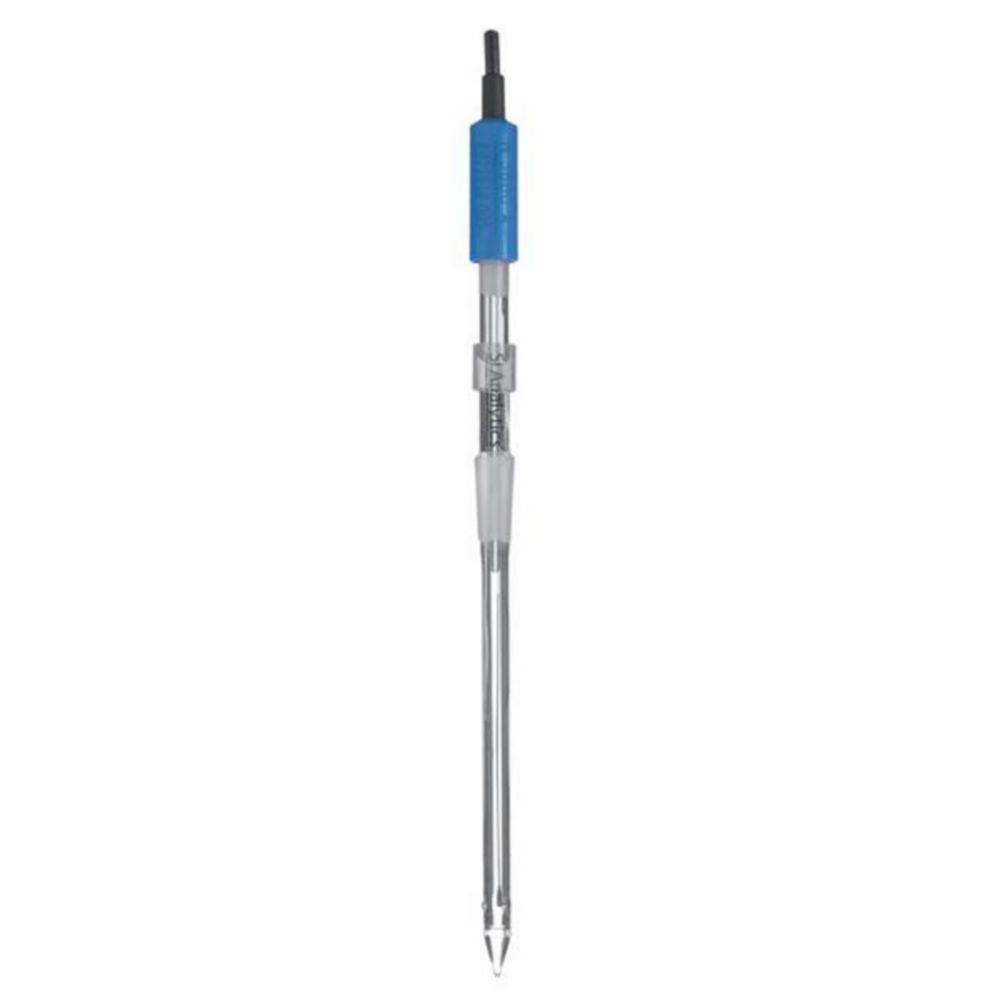

Combination pH Electrodes
Product number:
9041158
Manufacturer:
Xylem Analytics Germany (SI)
Packaging information:
Weight:
0.057 kg
Description
Properties
| Connection plug: | DIN |
|---|---|
| Diaphragm: | Platinum wire |
| Electrolyte: | KCl 3 mol/l |
| Manufacturer Article Number: | 285105127 |
| Material shaft: | Glass |
| Max. pH value: | 14 |
| Max. temperature: | 100 °C |
| Min. pH value: | 0 |
| Min. temperature: | -5 °C |
| Shaft length: | 96 mm |
| Shaft Ø: | 5 mm |
| Shape membrane: | Spear |
| Temperature: | -5 ... 100 °C |
| Temperature sensor: | Without |
| Type: | N 5800 A |
| UNSPSC: | 41-11-56-04 |
| pH range: | 0 ... 14 |
