Compact Balances EK-AEP, Ex-protected
A&D Instruments Limited
Product number:
4672675
Manufacturer:
A&D Instruments Limited
Packaging information:
Weight:
1.5 kg
Description

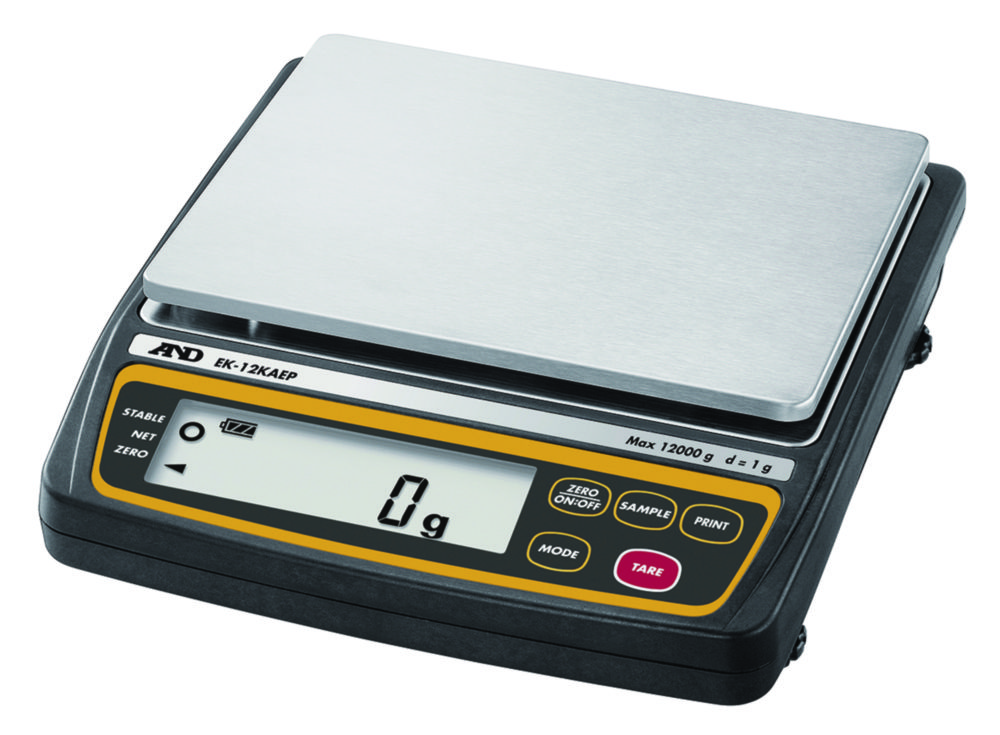

Compact, lightweight balance for precise weighing in potentially explosive atmospheres (zones 0, 1 and 2). Equipped with an optical data output for transferring measuring results to device in a distant, safe area.
Please order fibre optic cable and optical communication interface AD-1611 separately.
- Easy-to-read backlit LCD display, digit size 16 mm
- Hygienic and chemically resistant stainless steel (SUS304) weighing pan
- Comparator function for faster and more accurate filling, packing, sorting, etc
- Adjustable response characteristics depending on the degree of drafts and vibrations at the location
- Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to pcs (counting mode), % (percent mode), SG (specific gravity)
- Battery operation (4 x AA alkaline batteries 1.5 V, approx. 250 hours)
- Auto power OFF function
Please order fibre optic cable and optical communication interface AD-1611 separately.
Properties
| Battery/rechargeable battery: | 4 x AA |
|---|---|
| Depth: | 218 mm |
| Depth weighing plate: | 170 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 190 x 218 x 53 mm |
| Height: | 53 mm |
| Manufacturer Article Number: | EK-12KAEP |
| Max. load: | 12000 g |
| No. of batteries/rechargeable batteries: | 4 |
| Readability: | 1,0 g |
| Type: | EK-12AEP |
| Type of auxiliary energy: | Battery |
| UNSPSC: | 41-11-15-17 |
| Weighing plate (WxD): | 133 x 170 mm |
| Weight: | 1.5 kg |
| Width: | 190 mm |
| Width weighing plate: | 133 mm |
