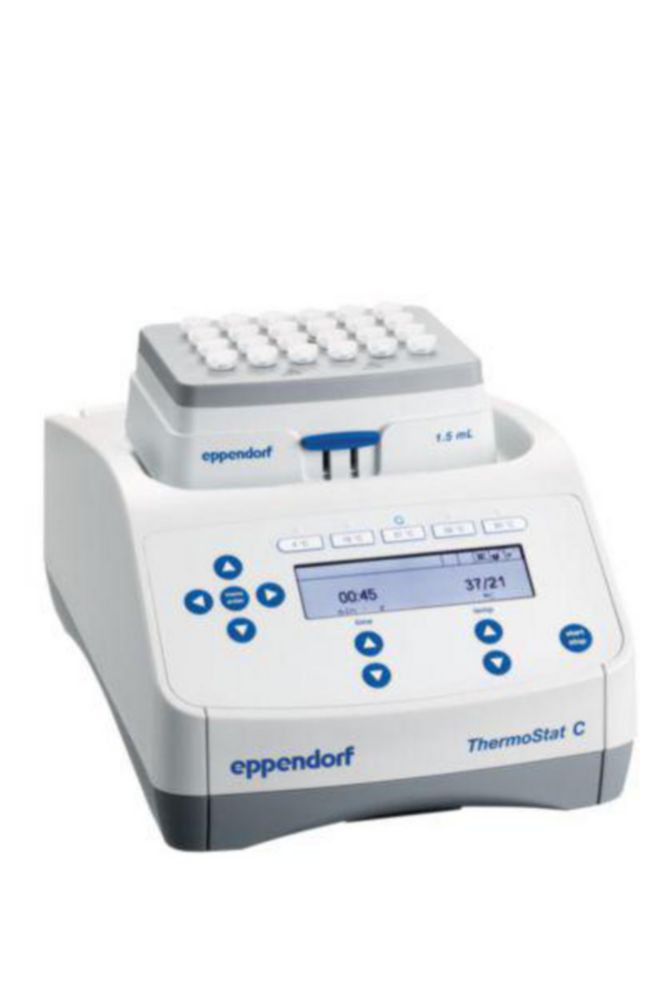

Cooling/Heating block Eppendorf ThermoStat C
Product number:
9776903
Manufacturer:
Eppendorf SE
Packaging information:
Length:
399 mm
Width:
296 mm
Height:
295 mm
Weight:
6 kg
Description
The ideal device to accurately set and maintain temperatures. Precise temperature control is achieved using optimally balanced heating and cooling elements (peltier technology). The cooling and heating temperature keys provide quick access to five important experimental temperatures (4°C, 16°C, 37°C, 56°C and 95°C). You can also individually store 15 programs.
Scope of supply: Basic device, without Eppendorf SmartBlock™
- Excellent temperature accuracy
- Precise temperature control from -10 to 110°C (110°C can be set when using 12 mm and cryo SmartBlocks™)
- Prevent condensation and improve temperature homogeneity with the new ThermoTop
- Comprehensive range of program functions
Scope of supply: Basic device, without Eppendorf SmartBlock™
Properties
| Depth: | 304 mm |
|---|---|
| Dimensions (WxDxH): | 206 x 304 x 136 mm |
| Height: | 136 mm |
| Manufacturer Article Number: | 5383000019 |
| Max. cooling rate: | 5 °C/min |
| Max. heating speed: | 9 °C/min |
| Max. temperature: | 110 °C |
| Max. voltage: | 240 V |
| Min. temperature: | -30 °C |
| Min. voltage: | 220 V |
| No. of blocks: | 0 |
| Plug type: | EU |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | RT-30 ... 110 °C |
| Temperature accuracy: | 0,5 °C |
| Temperature addition: | RT |
| Type of auxiliary energy: | Mains connection |
| Weight: | 4.3 kg |
| Width: | 206 mm |
| With timer: | Yes |
