Cuvette holders for Jenway spectrophotometers
Cole-Parmer Instrument
Product number:
9775430
Manufacturer:
Cole-Parmer Instrument
Packaging information:
Weight:
0.361 kg
Description
Properties

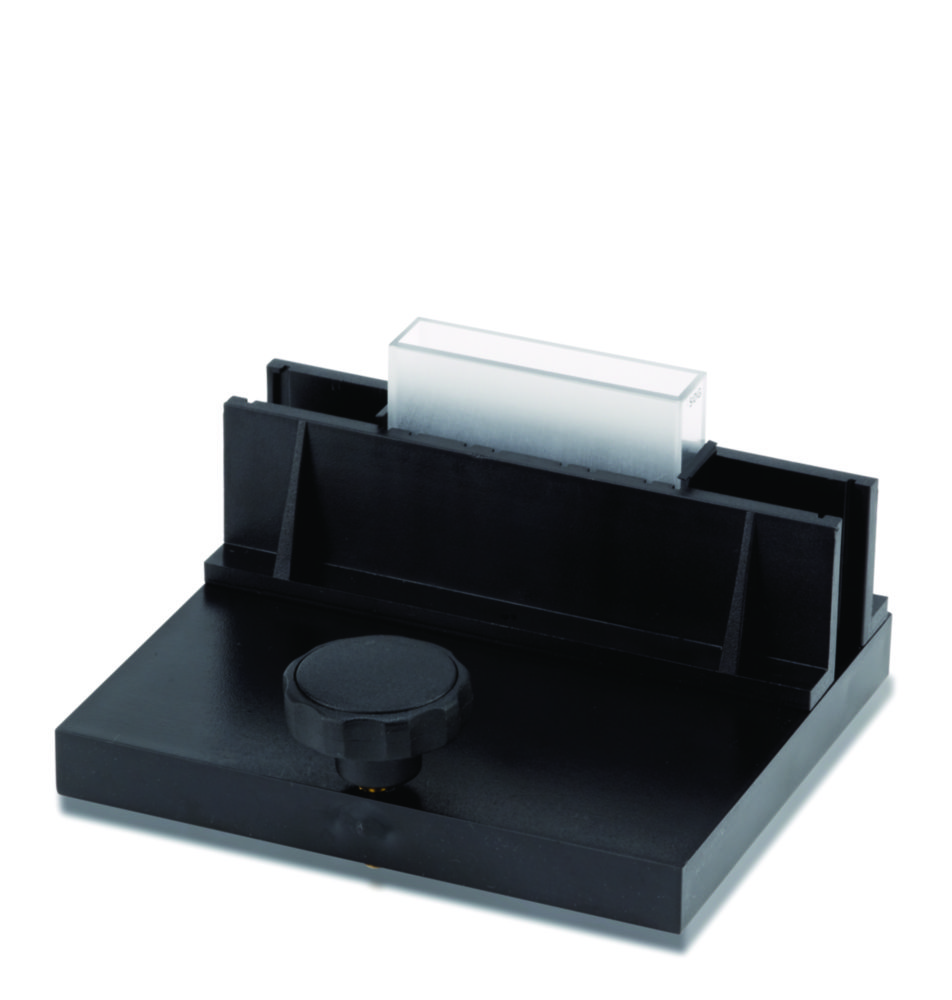

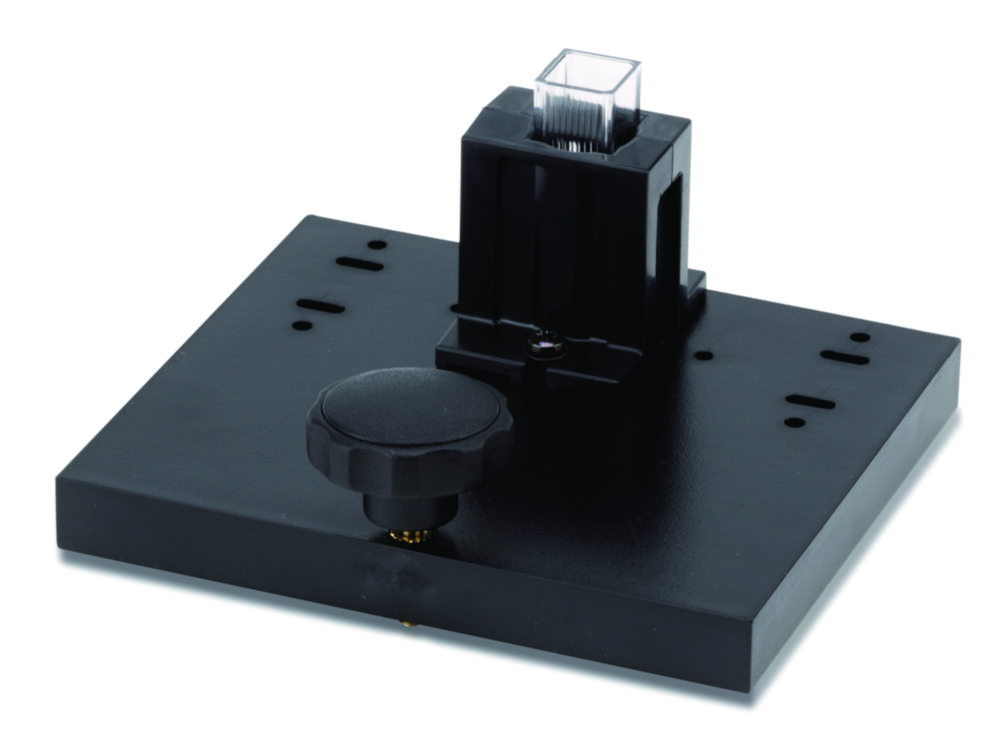

| Description: | Adjustable cuvette holder for 10 to 100 mm cuvette |
|---|---|
| For: | 6300 / 6305 / 7200 / 7205 / 7410 / 7415 / 7415 nano / Genova Plus / Genova Nano / 7300 / 7305 / 7310 / 7315 / 7615 |
| Manufacturer Article Number: | 83056-80 |
| UNSPSC: | 41-12-18-13 |
