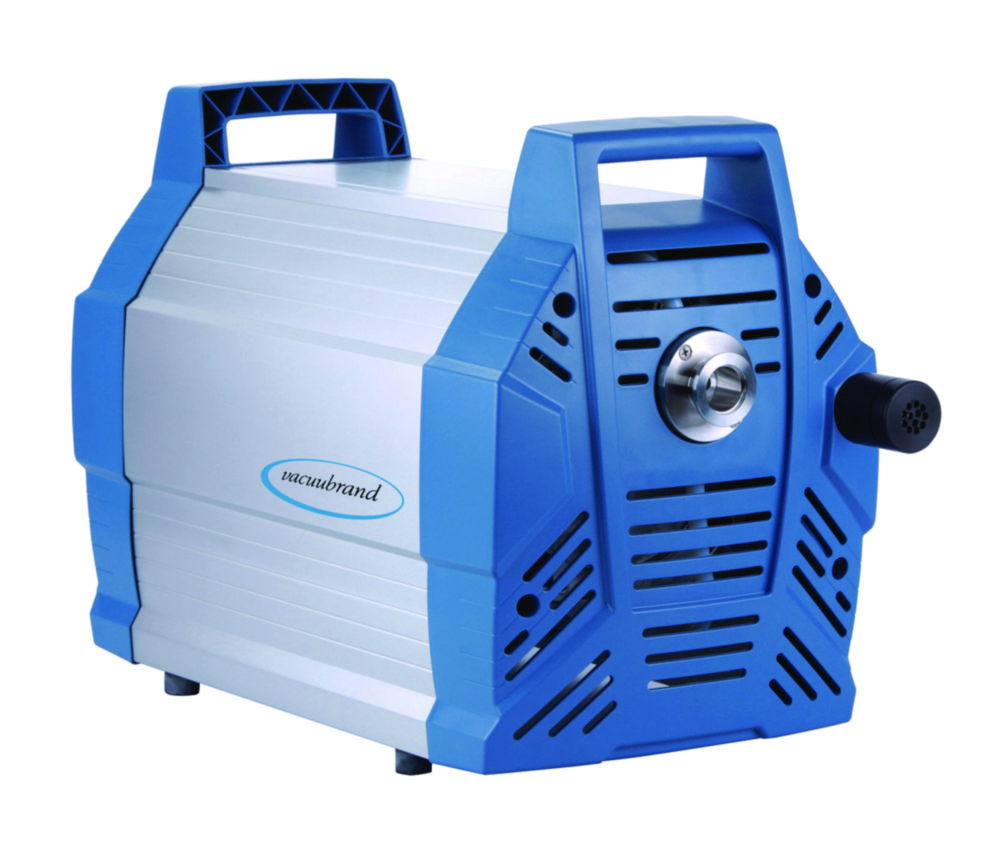

Diaphragm pumps, Aluminium
Product number:
4670553
Manufacturer:
Vacuubrand GmbH & Co.KG
Packaging information:
Weight:
21.15 kg
Description
- Improved performance, increased pumping speed (up to 16 m³/h) and better ultimate vacuum (up to 0.3 mbar). Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes
- Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applications
- Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment
- Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments
The VARIO® design provides vacuum control by precise and continuous adaption of the diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.
Country-specific power cord versions available on request.
Properties
| Connection pressure side: | G1/4" |
|---|---|
| Connection suction side: | KF DN 16 |
| Depth: | 325 mm |
| Dimensions (WxDxH): | 235 x 325 x 245 mm |
| Flow rate: | 3.3 m³/h |
| Height: | 245 mm |
| Manufacturer Article Number: | 20738151 |
| No. of stages: | 4 |
| Plug type: | CH |
| Type: | MV 2 VARIO select |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 40151502 |
| Ultimate vacuum: | 0.3 mbar |
| Width: | 235 mm |
