Dispersing heads for T 25 ULTRA-TURRAX® series
Product number:
4653934
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description

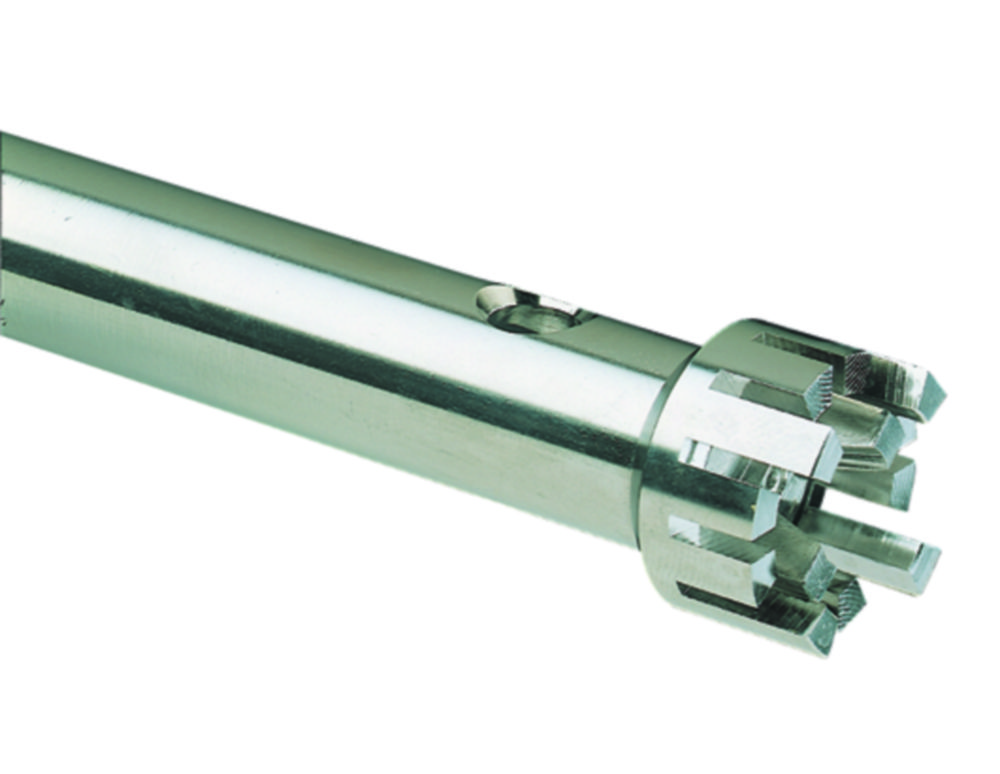

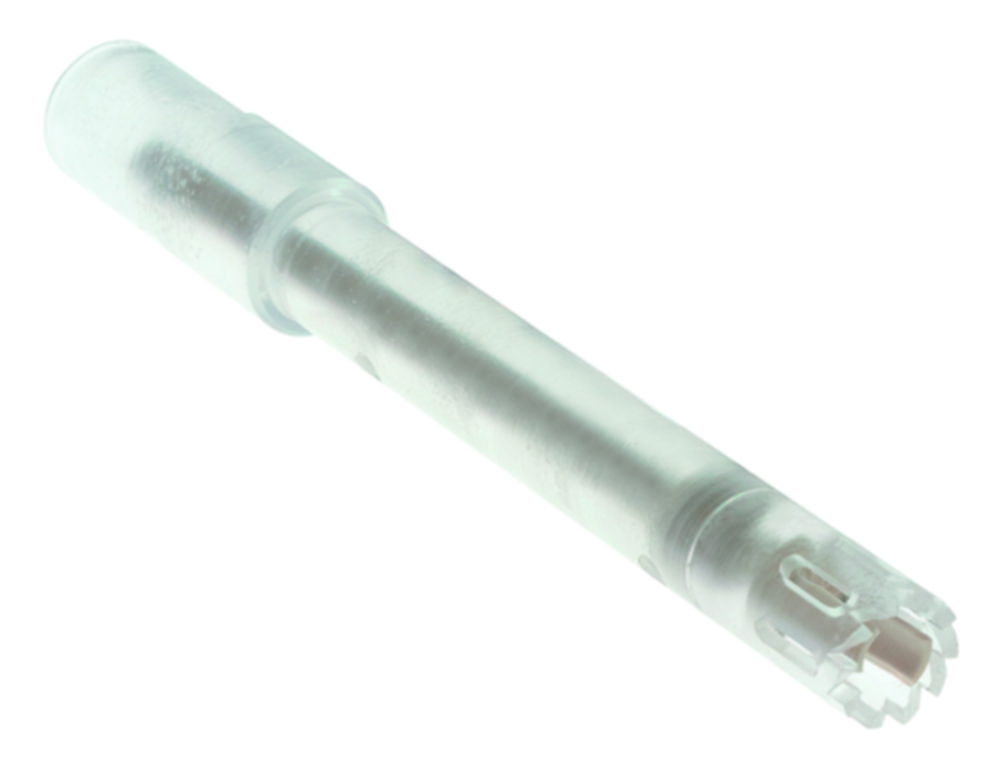

Plastic dispersing heads: Autoclavable. Stainless steel dispersing heads: Ultimate fineness: emulsions 1µm to 10µm and suspensions 5µm to 50µm, sterilisable by all methods. ST tools are recommended for use with tissue and other fibrous materials.
Properties
| Final fineness emulsion: | 1 ... 10 µm |
|---|---|
| Final fineness suspension: | 15 ... 50 µm |
| For: | T 25 easy clean, T 25 digital |
| Immersion depth: | 40 ... 185 mm |
| Manufacturer Article Number: | 0020002974 |
| Material: | FFKM/PTFE/Stainless steel |
| Max. immersion depth: | 185 mm |
| Max. temperature: | 150 °C |
| Max. working volume: | 2000 ml |
| Min. immersion depth: | 40 mm |
| Min. working volume: | 50 ml |
| Stator Ø: | 25 mm |
| Type: | S 25-KD-25 G-ST |
| Working volume: | 50 ... 2,000 ml |
| Ø rotor: | 20 mm |
