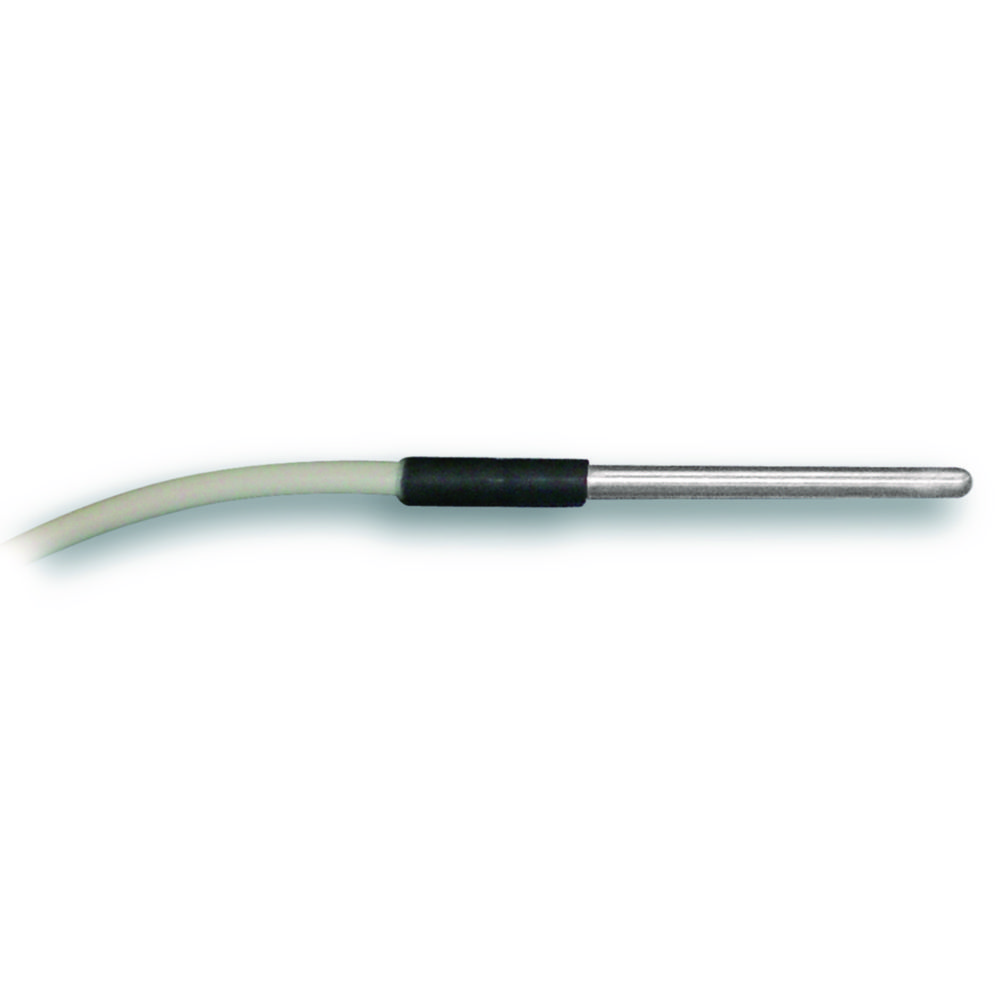

Exchangeable Pt 1000 probes TPX 25 for wireless temperature data logger EBI 25-TX
Product number:
4704963
Manufacturer:
Xylem Analytics Germany (EBRO)
Packaging information:
Description
Properties
| Cable length: | 5 m |
|---|---|
| Dimensions (ØxL): | 5 x 50 mm |
| Length: | 50 mm |
| Manufacturer Article Number: | 1341-0026 |
| Max. temperature: | 199,9 °C |
| Min. temperature: | -200 °C |
| Temperature: | -200 ... 199,9 °C |
| Type: | TPX 25-5 |
| Type of probe: | Pt 1000 |
| Ø: | 5 mm |
