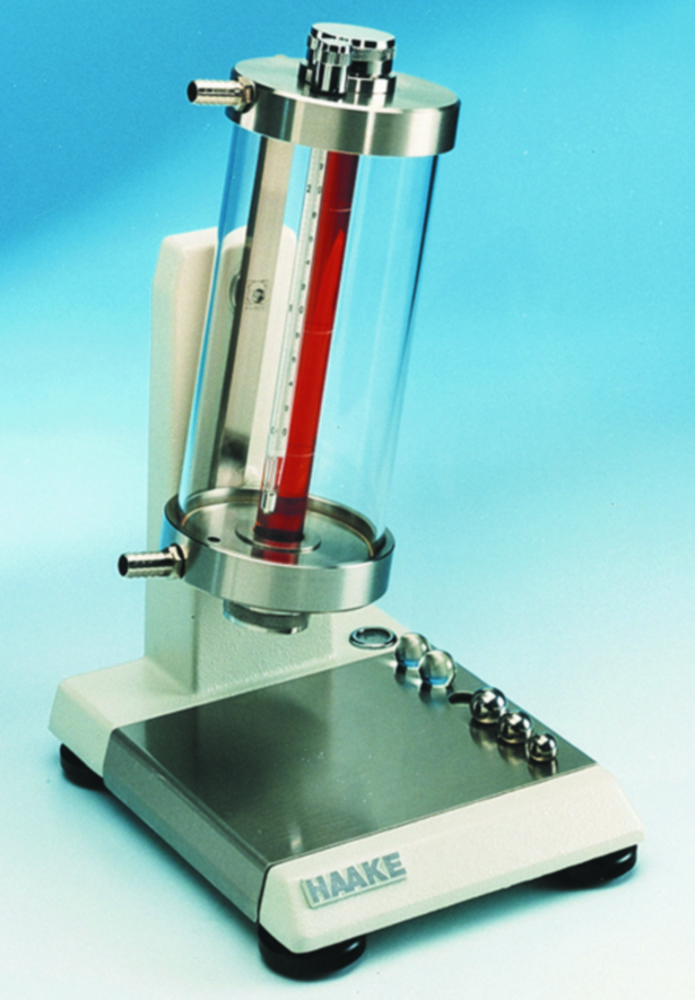

Falling Ball Viscometer HAAKE™ Type C
Product number:
9885021
Manufacturer:
Thermo Electron GmbH (Haake)
Packaging information:
Length:
348 mm
Width:
347 mm
Height:
242 mm
Weight:
4.3 kg
Description
To precisely measure the viscosity of low-viscosity, transparent Newtonic liquids and gasses per DIN 53015/ISO 12058 specifications.
Supplied with: HAAKE falling ball viscometer, type C with 6 balls, thermometer -1 to 26 °C in 0.1 °C increments, cleaning unit, test certificate and operating instructions
Supplied with: HAAKE falling ball viscometer, type C with 6 balls, thermometer -1 to 26 °C in 0.1 °C increments, cleaning unit, test certificate and operating instructions
Properties
| Manufacturer Article Number: | 356-0001 |
|---|---|
| Max. Viscosity: | 100000 mPa·s |
| Min. viscosity: | 0.5 mPa·s |
| Reproducibility: | < 0,5 % |
| Standard: | DIN 53015, ISO 12058 |
| Type: | C |
| Viscosity: | 0.5 ... 100,000 mPa·s |
Skip product gallery
Immersion flow cup with fixed nozzle
From
€142.00*
Dipping flow cups Frikmar
From
€80.40*
Flow cups with fixed nozzle
From
€156.00*
Viscometers Ubbelohde, glass, kinematic
From
€478.00*

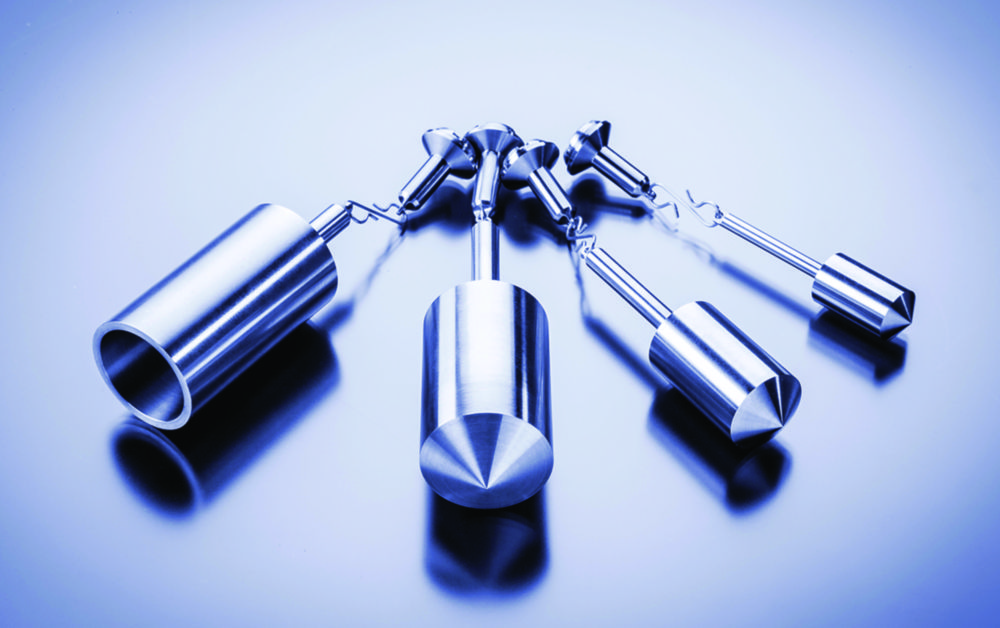

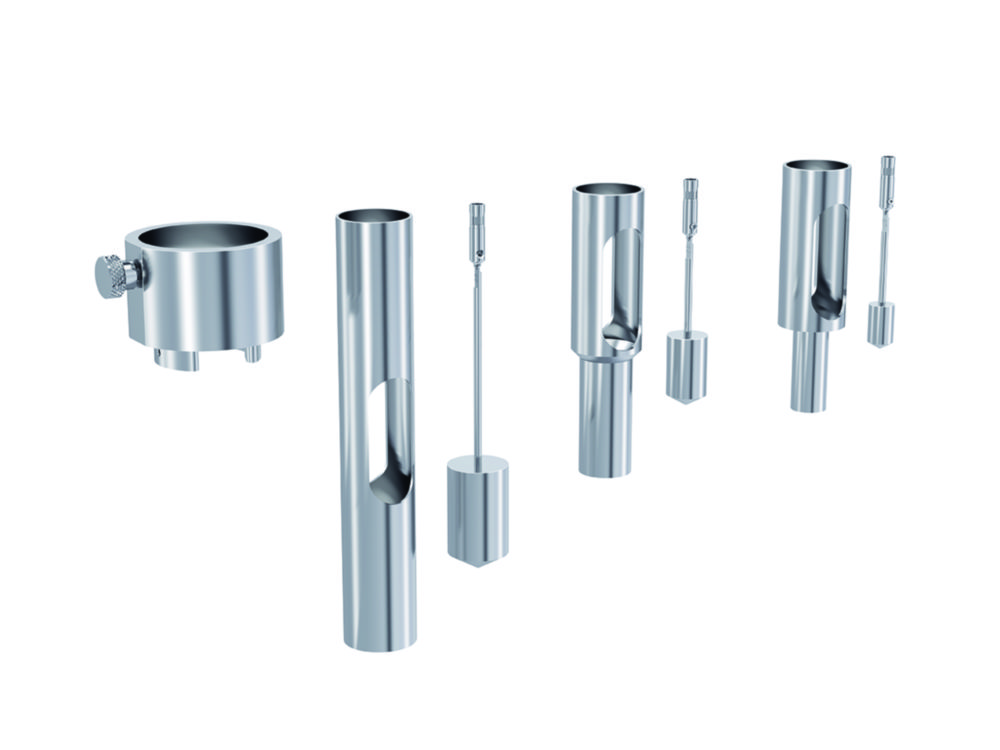

Adapter and spindle sets for Viscometers ROTAVISC
From
€201.00*

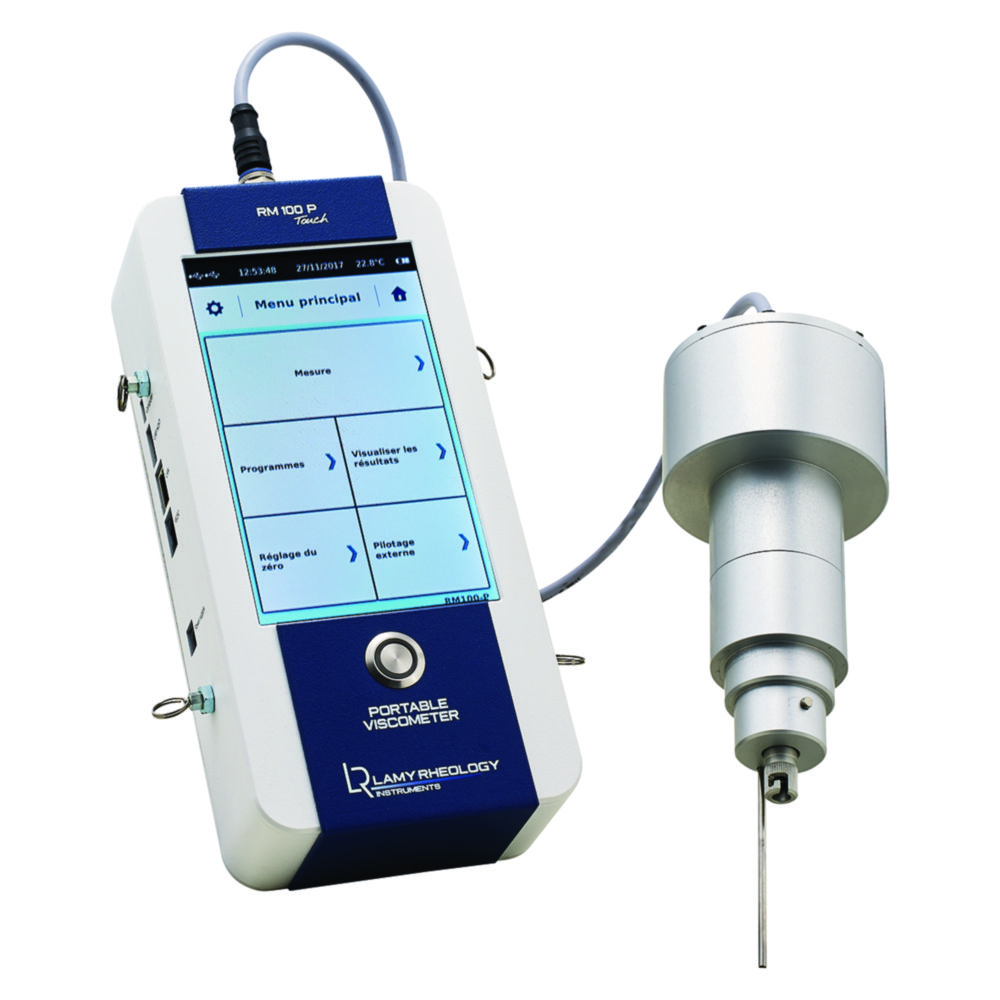

Rotary viscometer RM 100 portable
From
€5,700.00*

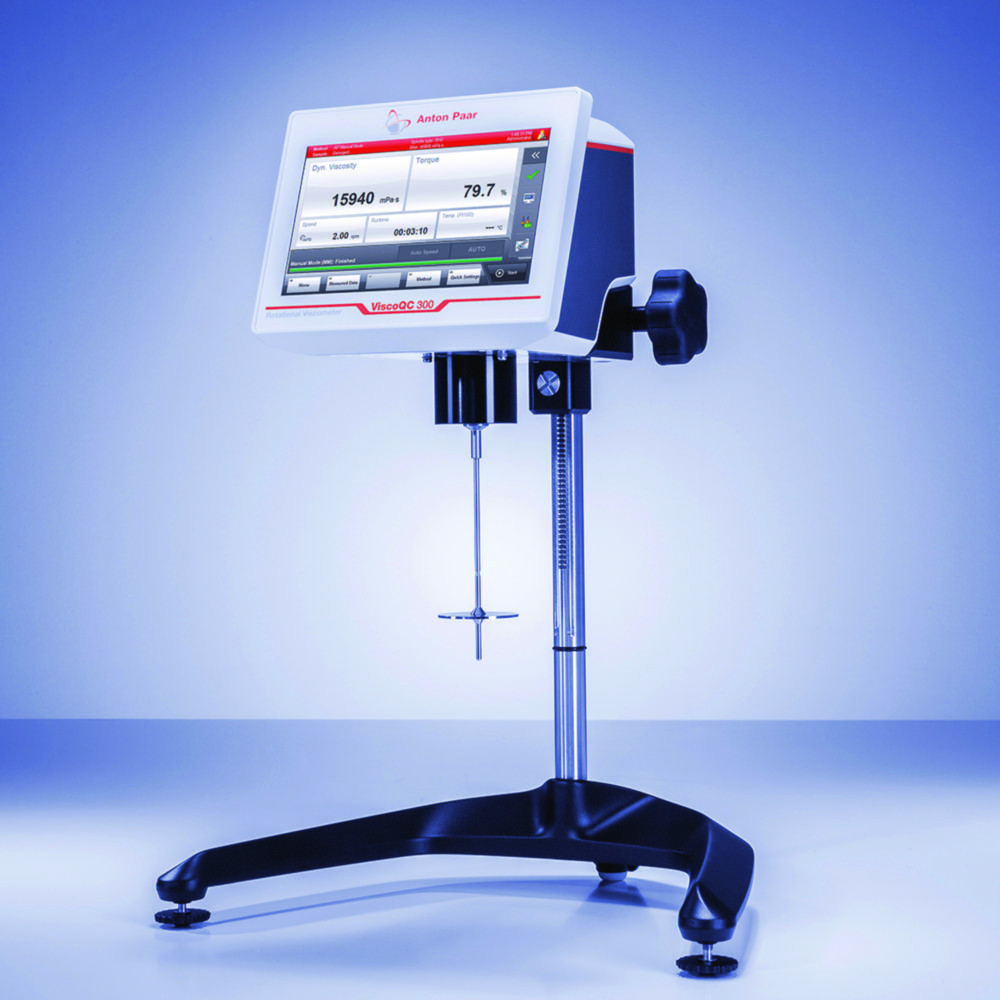

Viscometers ViscoQC 300
From
€5,200.00*

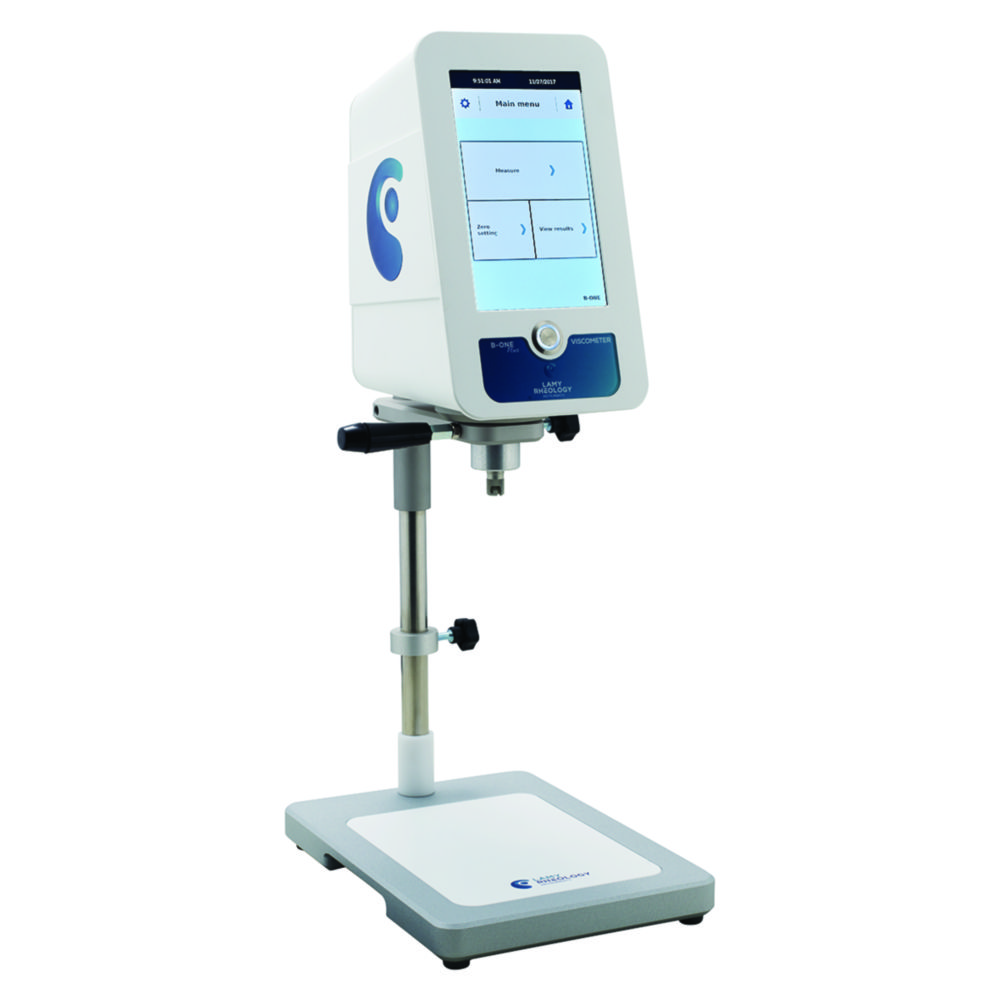

Viscometers B-ONE PLUS / FIRST PLUS
