Fine vacuum controller package VACUU·SELECT + VACUU·VIEW extended, KF DN 25
Product number:
9880867
Manufacturer:
Vacuubrand GmbH & Co.KG
Packaging information:
Weight:
5.1 kg
Description

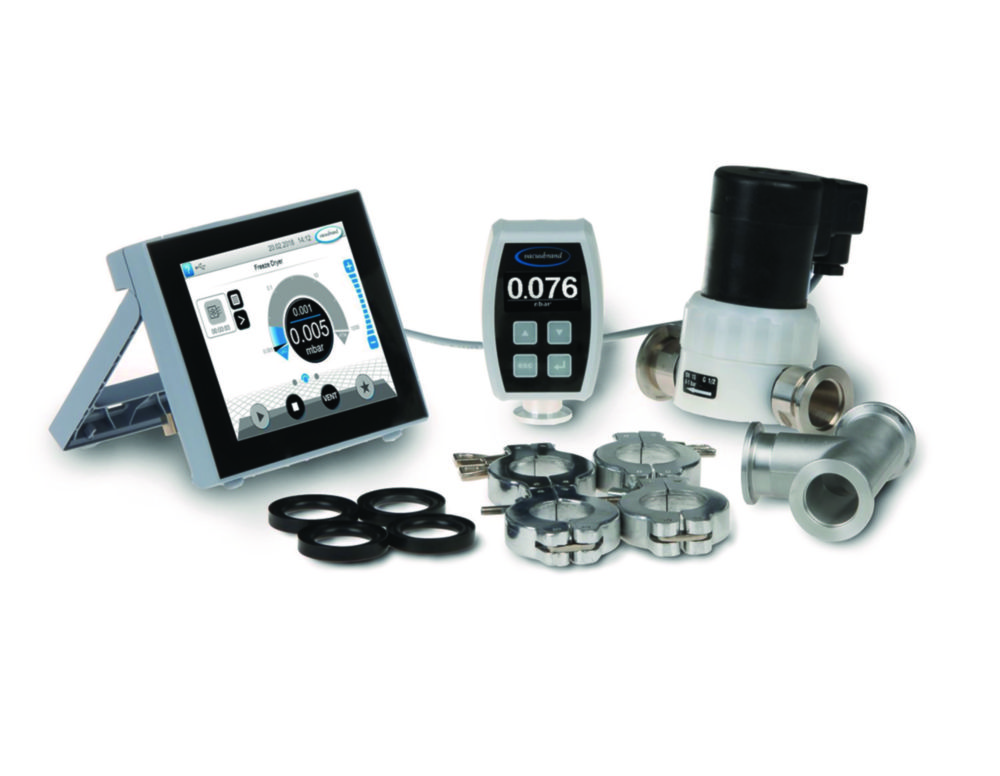

The packages enable convenient vacuum control in the fine vacuum range down to 10-3 mbar and consist of a VACUU·SELECT vacuum controller, a VACUU·VIEW extended vacuum sensor, a VV-B 15C in-line solenoid valve and all necessary small flange components. Measurement principle: Ceramic diaphragm sensor + ceramic jacketed Pirani sensor.
Suitable for our RE/RZ 9 rotary vane pumps.
Properties
| Accuracy: | ±15 % of indicated value in the range from 0.01 ... 5 mbar, ±3 mbar for >5 mbar |
|---|---|
| Manufacturer Article Number: | 20700110 |
| Max. measured value: | 1100 mbar |
| Max. permitted ambient temperature: | 40 °C |
| Measured range: | 0.001 ... 1,100 mbar |
| Min. measured value: | 0.001 mbar |
| Min. permitted ambient temperature: | 10 °C |
| Type: | VACUU·SELECT + VACUU·VIEW extended, KF DN 25 |
| UNSPSC: | 40151502 |
