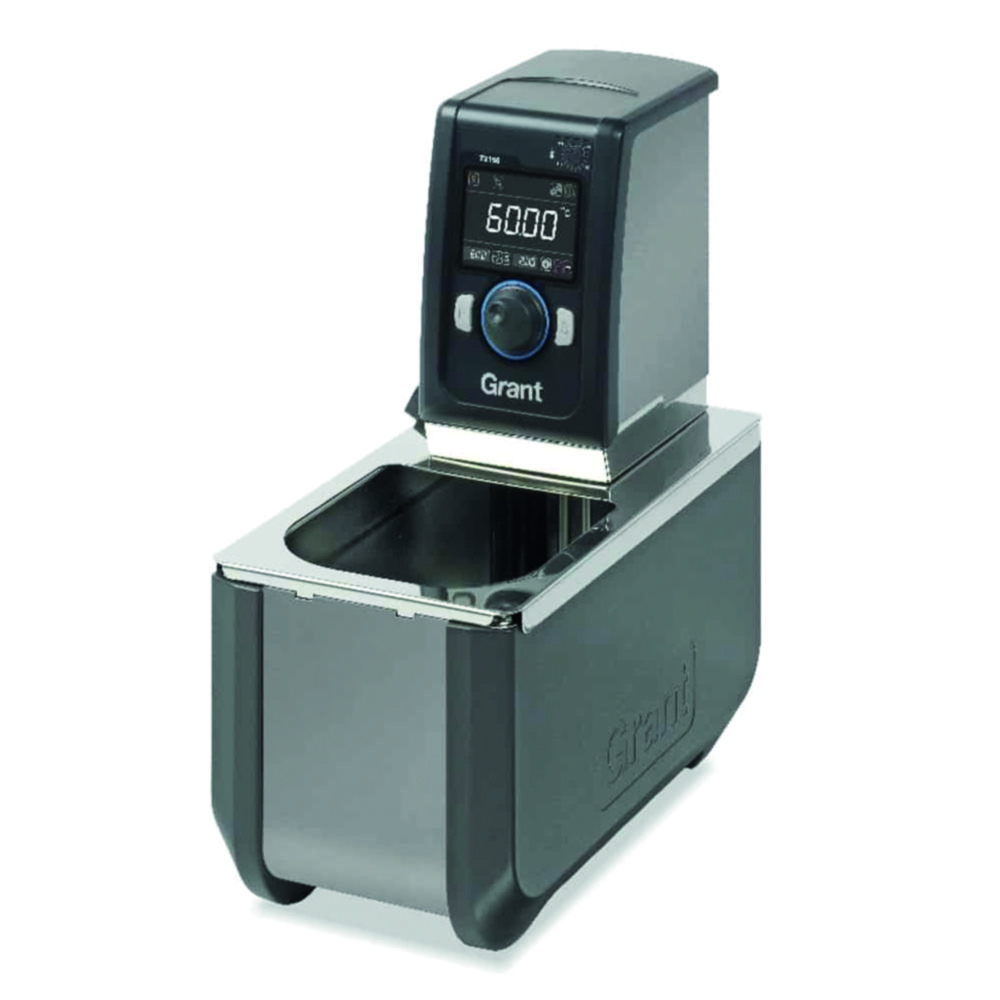

Heated circulating baths with stainless steel tank Optima™ TX150-ST series
Product number:
9699659
Manufacturer:
Grant Instruments Ltd.
Packaging information:
Length:
615 mm
Width:
491 mm
Height:
470 mm
Weight:
8.7 kg
Description
For excellent temperature stability and temperature control for demanding applications in a setting range from -15 to 150 °C.
Powerful integral pump for external fluid circulation
Large, bright full colour display with a choice of 5 languages
5 point user calibration
Low-liquid detection (float switch)
Easy to program via interface or remotely via PC / Laptop with Labwise® software
Scope of supply: Thermostat, bridge plate, stainless steel tank
For cooling below ambient temperature, please order cooler separately.
Powerful integral pump for external fluid circulation
Large, bright full colour display with a choice of 5 languages
5 point user calibration
Low-liquid detection (float switch)
Easy to program via interface or remotely via PC / Laptop with Labwise® software
Scope of supply: Thermostat, bridge plate, stainless steel tank
For cooling below ambient temperature, please order cooler separately.
Properties
| Depth int.: | 280 mm |
|---|---|
| Ext. depth: | 335 mm |
| Ext. height: | 415 mm |
| Ext. width: | 185 mm |
| Heating capacity: | 1400 W |
| Height int.: | 150 mm |
| Int. width: | 150 mm |
| Manufacturer Article Number: | TX150-ST5 |
| Material: | Stainless steel |
| Nominal capacity: | 5 l |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Temp. range °C: | Amb. +15 ... 150 |
| Temperature stability: | ±0.01 °C |
| Type: | TX150-ST5 |
| Type of auxiliary energy: | Mains connection |
| Warranty: | 3 years |
| Weight: | 5.8 kg |
