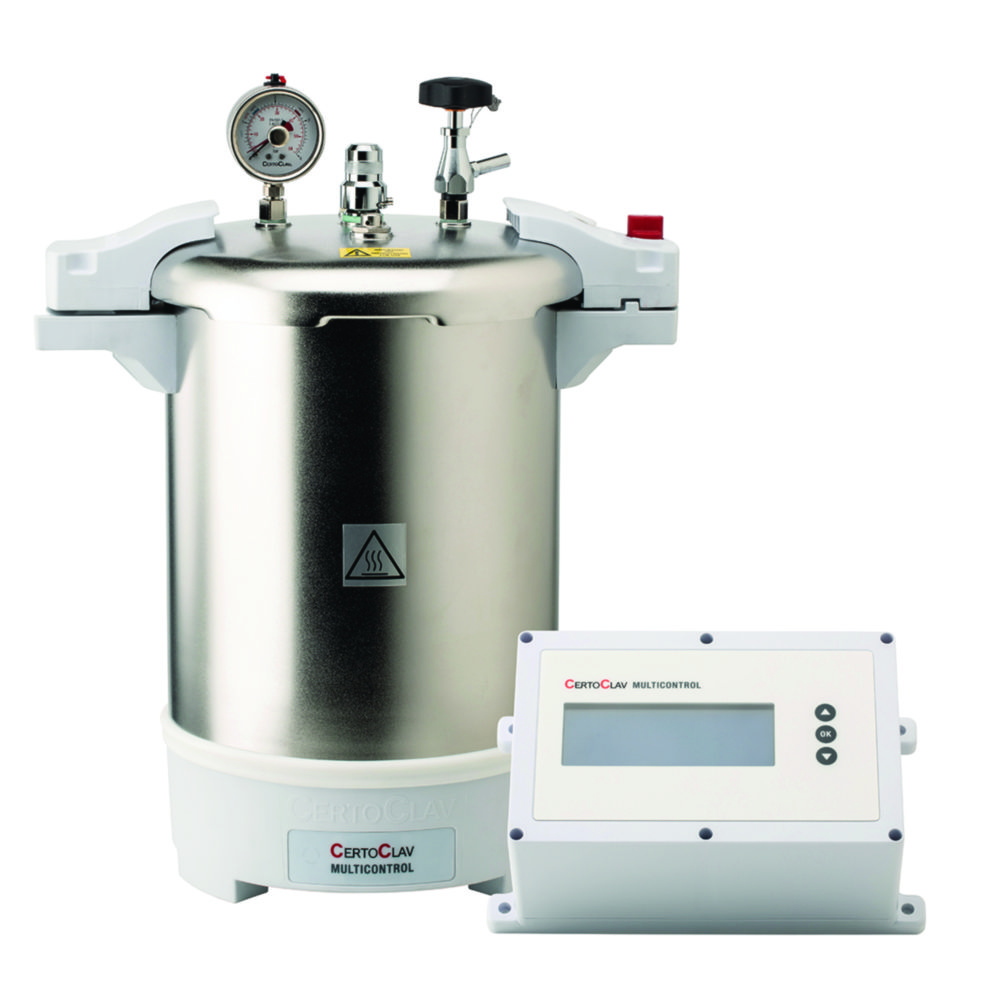

Laboratory autoclaves CertoClav MultiControl 2

HMT 230/260 FA - for standard tasks:Certified according to regulation 93/42/EECAvailable in 2 sizes with a volume of 16 or 24 liters9 sterilization programs, fully automatic: 121 °C wrapped / unwrapped solid items; with or without drying, 135 °C wrapped / unwrapped solid items; with or without drying, Liquid program: 121 °C, 40 min.Controlled by a microprocessorSimple digital displayWater tankElectromechanical overheating protectionSafety valveMechanical pressure-dependent door lockReset/emergency buttonEasy maintenanceHMT 230/260/300 MA - versatile table-top autoclave:Certified according to regulation 93/42/EECAvailable in 3 sizes with a volume of 16, 24 or 40 litersPowerful integrated vacuum pump, an essential feature for sterilizing tubes and hollow components7 sterilization programs, fully automatic: 121 °C wrapped / unwrapped (vacuum), 134 °C wrapped / unwrapped (vacuum), Liquid and prion programs, Bowie-Dick testControlled by a microprocessorProgress indicatorInternal water tankElectromechanical overheating protectionElectronic overpressure protectionPressure safety valveMechanical pressure-dependent door lockReset/emergency buttonEasy maintenanceHMT 260/300 MB - premium table-top autoclave:Certified according to regulation 93/42/EECAvailable in 2 sizes with a volume of 24 or 40 litersPowerful integrated vacuum pump, an essential feature for sterilizing tubes and hollow components5 sterilization programs, fully automatic: Sterilization of wrapped items: 121 °C - 30 min.; 134 °C - 15 min., Sterilization of unwrapped items: 121 °C - 15 min.; 134 °C - 4 min., Individual temperature selection from 105° to 135 °C, Preset prion program3 test programs: leakage test, helix test, Bowie-Dick testControlled by a microprocessorEasy operation with a LCD displayDocumentation / data storage via SD card and printerDrying program, 1- 60 minutes4 literwater tank, to be filled manually or automatically (purified water)Various safety features, e.g. safety valve or pressure-dependent door lockWith modern design, easy maintenance

Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.The vertical laboratory autoclave is suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications. The autoclave is available in two versions, each with two temperature levels. These temperature settings are controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized with and calibrated to the respective valve.Robust constructionThermostat controlledHigh heating powerVenting by flow procedureHeating integrated in the baseScope of supply: Autoclave, instrument tray, power cable

Biological control involves the use of indicators, which check whether all microorganisms were killed during the sterilisation process. The bio-indicators are unique, as they directly indicate how many microbial spores have actually been killed. Thanks to the reliability and quality of the information, the regular use of a bio-indicator can lead to an improvement in the performance of the sterilisation process and thus to better results.Features:No external laboratory is required for performance evaluationEasy handlingReasonable to use after repairs or maintenance of autoclavesApplication:Program 3.5 minutes, holding time at 121 °C or 134 °CAfter sterilisation, break the vial in order to bring the nutrient solution into contact with the spore stripResults in 48 hoursMeets EN ISO 11138 standard

Steam sterilisers are availible in wide range of chamber sizes between 55 l and 195 l, universal installation options as a free-standing or tabletop unit and numerous configurations provide individual solutions meeting your specific requirements. Typical areas of application for our units include all microbiological laboratories in research institutions, universities, quality controls in the pharmaceutical and food industries as well as waste sterilization, for example in the field of medical diagnosis. Laboklav series autoclaves are characterized by their reliability and quality. We manufacture our products exclusively in Germany to high and continuously monitored quality standards. Our units are TÜV-certified and approved for series production. They comply with the following standards:Pressure Equipment Directive 97/23/EUDIN 58950: Sterilization - Steam sterilizers for pharmaceutical productsDIN 58951: Sterilization - Steam sterilizers for laboratory useNo accessories included, please inform us in your order if a horizontal or vertical device is required.Specifications55 | 100 | 135 | 160 | 195Chamber volume:55 l | 100 l | 135 l | 160 l | 195 lChamber dimensions (Diam. x D):410 x 460 mm | 410 x 760 mm | 500 x 660 mm | 500 x 760 mm | 500 x 990 mmOuter dimensions of free-standing unit (W x H x D):740 x 765 x 600 mm | 740 x 1065 x 600 mm | 840 x 965 x 700 mm | 840 x 1065 x 700 mm | 840 x 1215 x 700 mmOuter dimensions of tabletop unit (W x H x D):740 x 600 x 765 mm | 740 x 600 x 1065 mm | 840 x 700 x 965 mm | 840 x 700 x 1065 mm | 840 x 700 x 1215 mmWeight:115 kg | 185 kg | 195 kg | 210 kg | 245 kgMax. allowable pressure (PS):2,8 barMax. allowable temperature (TS):143 °CHeating power of steam generator:3-6 kW, selectable | 6 kW, selectable | 6-10 kW, selectable | 6-10 kW, selectable | 10 kWElectrical connection:3N 400 V ~, 50 Hz, 16 ASterilization temperature:98 ... 135 °C, adjustable

Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.The fully automated, vertical laboratory autoclave is suitable for extended/ long- term cycles, material tests, HAST Test, Pressure Cooker Test, ICP-TM 650, culture media preparation, sterilisation of waste, unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials and rubber. It is operated with a 7-inch, robust, high-resolution touch screen. All operating steps are explained with videos directly on the CertoTouch. Individual sterilisation programs, which include several time and temperature steps can also be created directly on the CertoTouch. Once the autoclave is connected to the Internet via WLAN, it can be connected to the CertoCloud, an automatic process documentation. With this automatic documentation, the autoclave meets all GLP requirements.Automatic venting in fractional flow processElectric exhaust vapour valveElectronic safety lockTime and temperature individually editableEthernet, LAN, WiFiHeating integrated in the floorScope of supply: Autoclave, CertoTouch screen, instrument tray, PT100 media sensor, power cable, CertoCloud basic license

The compact and space saving table top units of the Laboklav 25 series provides you most applications of bigger table top units:sterilisation of liquids in open and lightly closed vessels, also with air re-cooling systemsterilisation of instruments, also with pre-vacuum and drying vacuumwaste sterilisation at 134 °Coptional exhaust air filtration systemvolume of chamber: 25 lmax. permissible pressure: 2.8 barsterilising temperature: 98 to 138 °CA unique design meets innovative technical solutions:optimal use of chamber volume - sufficient for 5 x 1 l standard bottle incl. caplid made of temperature resistant safety glass and lid cover made of safety glassLED front lightning to visualise cycle progressmotor driven and self-checking closing mechanismflexible temperature reference sensor PT100 as serial functionThermolocking device according to IEC 61010-2-40Chamber volume/Chamber size25L useable , Ø 265mm x 465mm Chamber illumination by white LED lightLoad:e.g. 5 x 1L bottle up to 5kg instrumentsDimensions (W x D x H): Space requirement on the table: Weight:440mm x 540mm x 660mm 440mm x 550mm + 110 for door overhang approx. 65kgMax permissible pressure (PS): Max. permissible temperature (TS):2.8 bar 138°CChamber material:Stainless steel, chamber lid made from temperature proof safety glassHousing:Powder coated, red; Front cover from transparent safety glass; Process illumination (LED) in Blue, Red and GreenSteam generation:Integrated steam generator with dry heating elementsHeating power: Electrical connection:2kW 230V ~ 50 Hz, 16ALid closing system:Motorized closing systemSterilisation temperature: Feed water supply:98 to 135 °C, adjustable Integrated feed water tank with manual fillingExhaust steam condensing:Included, discharge into integrated condensate tankThermo locking acc. to IEC 61010-2-43 (TRB 402):Integrated with flexible reference temperature sensor opening, temperature adjustableControl:Micro processor with LCD Display; Code protected access to programming levels; Serial interface RS 485; Internal storage chip to store cycle data of approx. 150 cycles, visualisation and print out at a later stage is possibleProgramms:Up to 10 programms, depending on the integrated option, all programmes can be individualizedNorms and regulations:Manufactured in Germany in full compliance with the relevant norms and regulations. Serial approval by German TUV, CE marking according Pressure Device Directive (Commissioned by factory service at an additional cost)

Built-in printer IT:Must be installed ex factory, please order with autoclave.For Models: AES-12, AES-28, AES-50, AES-75, AES-110, AES-150, AE-28-DRY, AE-50-DRY, AE-75-DRY, AE-110-DRY, AE-150-DRY, AHS-50-N, AHS-75-N, AH-21-L, AHS-50-DRY, AHS-75-DRYBuilt-in printer IT/TS:Must be installed ex factory, please order with autoclave.For Models: AE-50-B, AE-75-B, AE-110-B, AE-150-B, AH-21-B, AHS-50-B, AHS-75-B, AE-20-MP, AE-40-MP, AE-60-MP, AE-80-MP, AE-100-MPTable top printer ITS:Print program number, cycle number, temperature, date and hour of the run. Error messages are also printed. With RS 232 interface. Only for AES-12 / AES-28 / AES-50 / AES-75 / AES-110 / AES-150 / DRYBuilt-in printer IT/TLVMust be installed ex factory, please order with autoclave.For TLV/Series

Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.CertoClav Classic is suitable for sterilisation of unwrapped solids without hollow bodies, liquids, bottles, instruments, synthetic materials, culture media preparation and waste sterilisation.A precision thermometer, a control valve and a precision manometer with drag indicator ensure exact processes and perfect results for all applications. The model is available in two versions, each with two temperature levels. The respective temperature level is set via the control valve in the lid. The valves cannot be interchanged as the thermostat of the appliance is matched and adjusted to the respective valve. The water supply is a mixture of tap water and demineralised water.Our autoclaves are protected by a multiple safety system. It consists of a pressure relief valve, a pressure valve, a safety lid lock to prevent opening under pressure and a BI metal fuse to prevent the appliance from overheating.Touchscreen controlRobust construction, low-maintenanceTransportable and location-independentThermostat controlIntegrated timerVenting in flow processHeating integrated in the baseScope of supply: Autoclave, instrument tray, power cable
