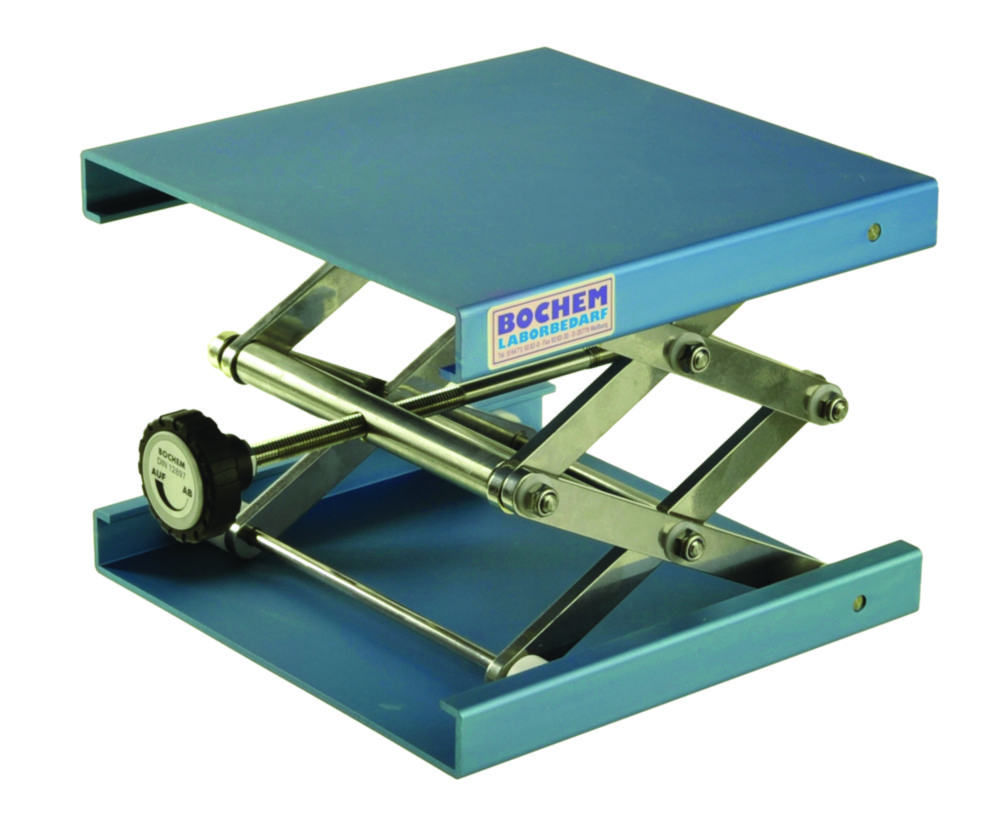

Laboratory jacks, aluminium anodized
Product number:
9118979
Manufacturer:
BOCHEM Instrumente GmbH
Packaging information:
Length:
338 mm
Width:
318 mm
Height:
115 mm
Weight:
6.051 kg
Description
Blue. For the operating load a distinction is made between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack.
- All models are manufactured according to DIN 12897
- Scissor technology with reduced tolerances
- Scissor-construction made of 18/10-stainless steel
- Ergonomic knob, rounded and user friendly
- Models Type A have a simple adjusting wheel, which can be operated by hand
- Models Type B have a special adjusting wheel, which is used with the included ratchet
Properties
| Adjustable height: | 130 ... 470 mm |
|---|---|
| Colour: | Blue |
| Depth: | 300 mm |
| Dimensions (WxD): | 300 x 300 mm |
| Manufacturer Article Number: | 11081 |
| Material: | Stainless steel 1.4301 |
| Max. adjustable height: | 470 mm |
| Max. dyn. load capacity: | 12 kg |
| Max. stat. load capacity: | 60 kg |
| Min. adjustable height: | 130 mm |
| Type: | B |
| Type of coating: | Anodised |
| Width: | 300 mm |
