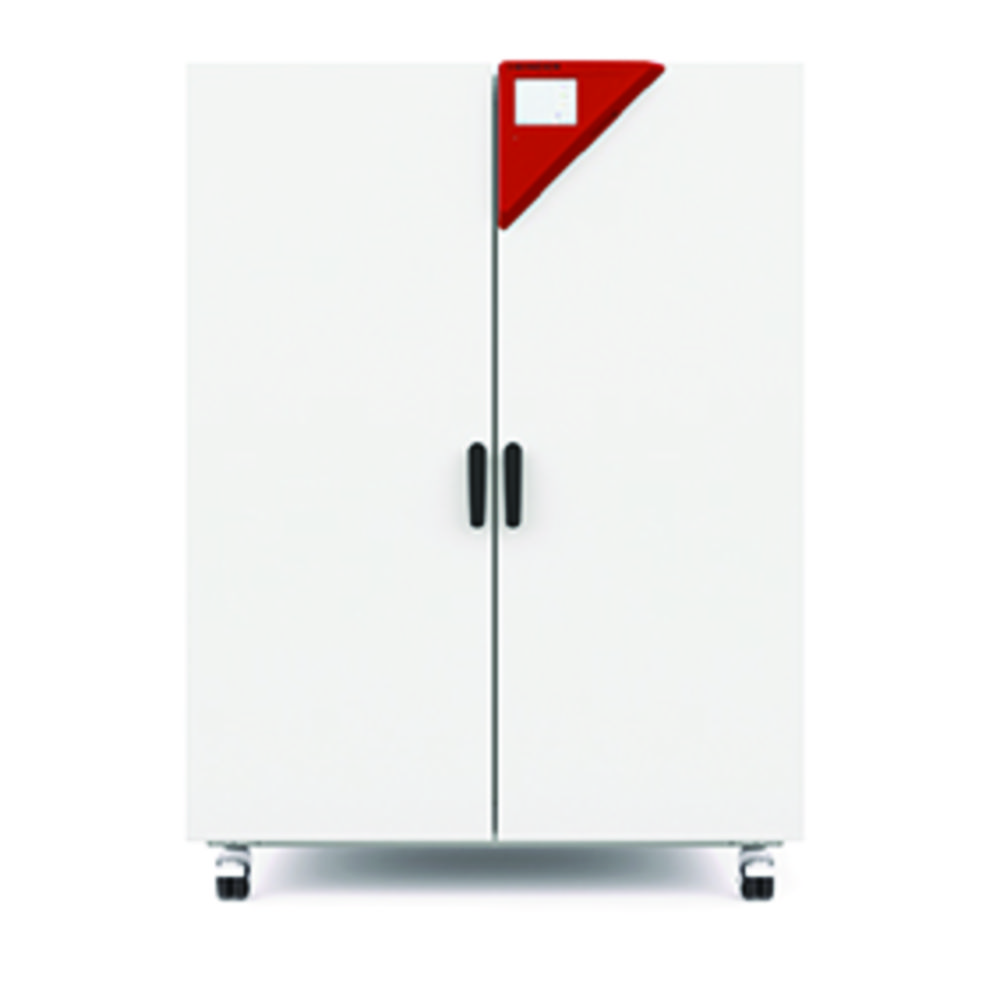

Material test chamber M
€15,279.00*
Content:
1
Delivery according to order confirmation
Product number:
4705575
Manufacturer:
BINDER GmbH
Packaging information:
Description
The material test chambers are suitable for material testing and ageing tests thanks to their versatile programming options. Powerful fan with high air flow rate ensures fast heat-up.
- High temperature accuracy thanks to APT.line™ technology with increased heating output
- Reinforced fan with adjustable speed
- Electromechanical control of the exhaust air flap
- Touchscreen controller with time-segment and real-time programming
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
- Failsafe function-backup sensor Pt 100
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 2 chrome-plated racks
Properties
| Depth int.: | 565 mm |
|---|---|
| Ext. depth: | 816 mm |
| Ext. height: | 1590 mm |
| Ext. width: | 1160 mm |
| External dimensions (WxDxH): | 1,160 x 816 x 1,590 mm |
| Height int.: | 1300 mm |
| Int. width: | 1000 mm |
| Internal dimensions (WxDxH): | 1,000 x 565 x 1,300 mm |
| Manufacturer Article Number: | 9010-0374 |
| Max. no. of inserts: | 16 |
| Max. temperature: | 300 °C |
| Max. voltage: | 400 V·3/N/PE |
| Min. temperature: | +14 °C |
| Nominal capacity: | 735 l |
| Plug type: | CEE |
| Power supply: | 400 V·3/N/PE, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 6 kW |
| Temperature: | RT+14 ... 300 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,6 K (150 °C) |
| Type: | M 720 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 170 kg |
Skip product gallery
From
€71.60*
Accessories
BINDER GmbH
BINDER GmbH
Shelves for BINDER chambers and incubators, stainless steel
Shelves made of stainless steel, perforated.If you are ordering replacement shelves, please provide the serial number prior to ordering, since it might be necessary to order other shelves with different dimensions.
Skip product gallery
Constant climate chambers KBF-S ECO
From
€12,331.00*

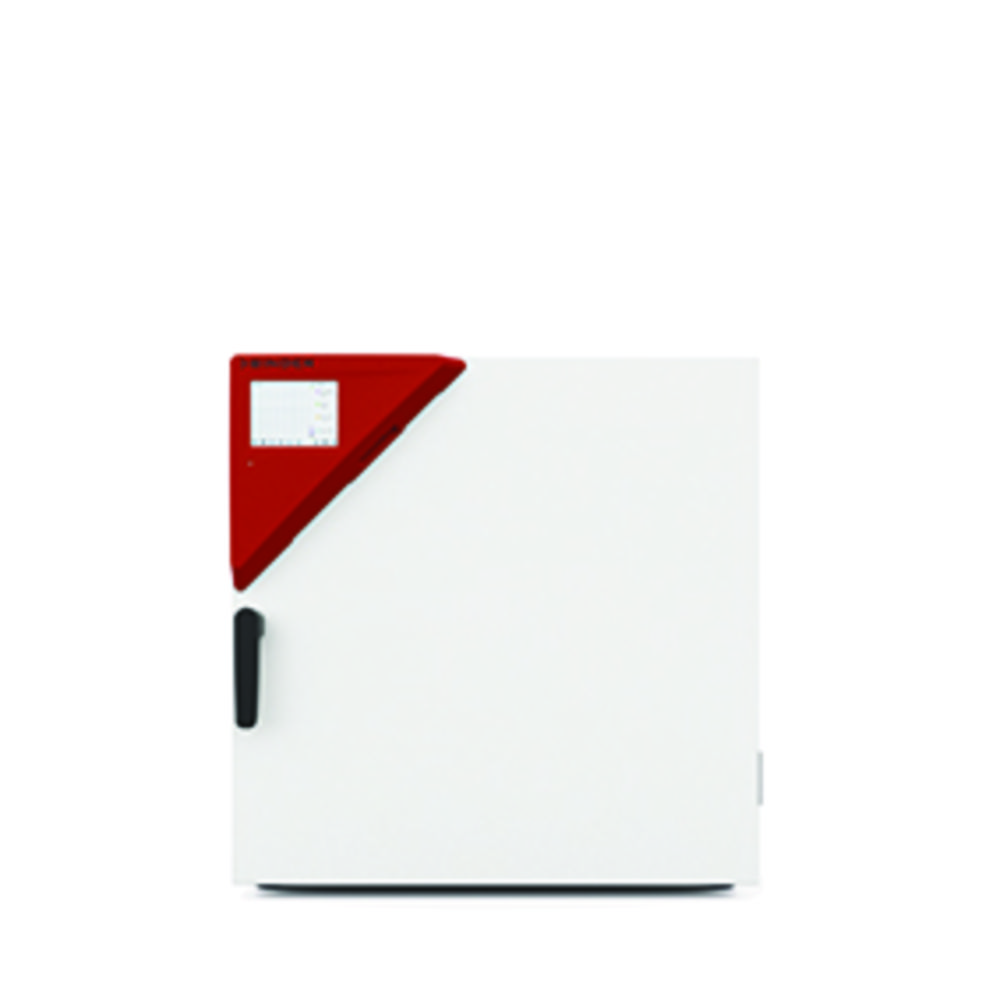

Material test chamber FP series
