Multi-position magnetic stirrers RO 5/10/15 series
Product number:
9720222
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Length:
735 mm
Width:
218 mm
Height:
85 mm
Weight:
6.257 kg
Description

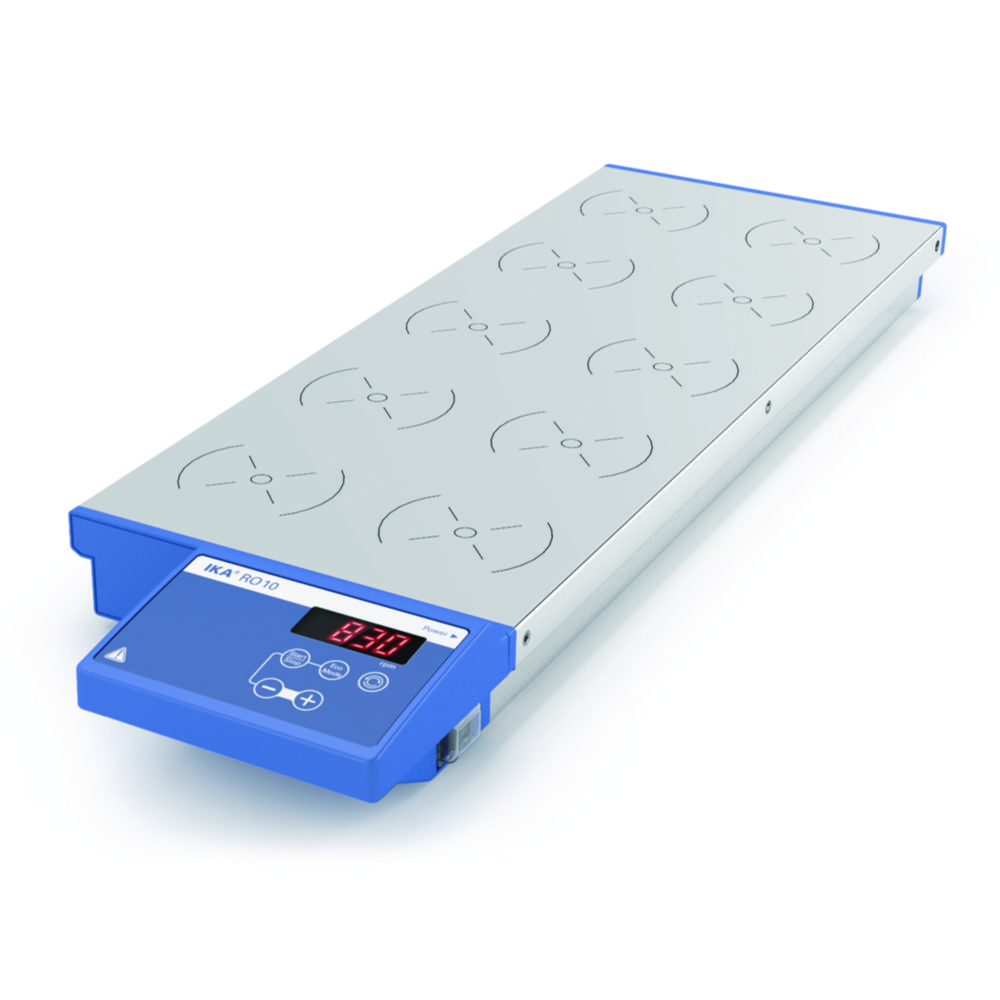

Without heating. 5, 10 or 15-position digital magnetic stirrers, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.
- Adjustable reverse operation
- Eco-mode for a low self-warming of the surface
- Wear free magnetic coils
- Error Code Display
- Easy operation with touch keypad
- Suitable for continuous operation
- Adjustable speed in increments of 10rpm
Properties
| Colour housing: | Blue |
|---|---|
| Depth: | 570 mm |
| Depth working area: | 470 mm |
| Dimensions (WxDxH): | 190 x 570 x 60 mm |
| Display: | Digital |
| Height: | 60 mm |
| IP code: | IP 40 |
| Manufacturer Article Number: | 0003691000 |
| Material stirring surface: | Stainless steel 1.4301 |
| Max. permitted ambient temperature: | 40 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 1200 1/min |
| Max. voltage: | 240 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 0 1/min |
| Min. voltage: | 100 V |
| No. of stirring positions: | 10 |
| Permitted ambient temperature: | 5 ... 40 °C |
| Plug type: | EU/UK/CH/US/AUS/CN |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 25 W |
| Speed: | 0 ... 1,200 1/min |
| Stirring capacity per position: | 400 ml |
| Stirring centre distances: | 90 mm |
| Type: | RO 10 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41103806 |
| Weight: | 5 kg |
| Width: | 190 mm |
| Width working area: | 190 mm |
| With timer: | No |
| Working area (WxD): | 190 x 470 mm |
