Optima® WAX capillary columns for GC
Product number:
9003770
Manufacturer:
Macherey-Nagel GmbH & Co. KG
Packaging information:
Description

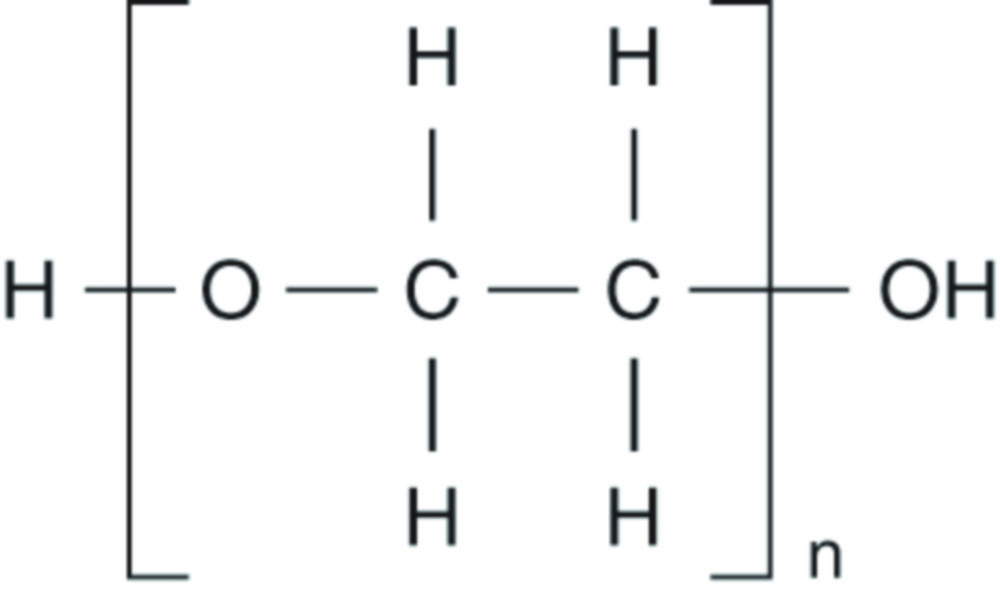

polyethylene glycol 20000 daltons
USP G16
polar phase
recommended for solvent analysis and alcohols
suitable for aqueous solutions
similar phases: Premabond® CW 20 M , DB-Wax, Supelcowax, HP-Wax, HP-INNOWAX, Rtx-Wax, CP-Wax 52 CB, Stabilwax, 007-CW, BP20, AT-Wax, ZB-Wax
Max. temperature for isothermal operation 240°C, max. temperature for short isotherms in a temperature programme: 250°C,
for 0.53 mm ID columns the max. temperatures are 220 and 240°C, resp.
Custom-made columns to your specifications available on request.
Each column is individually tested and supplied with test certificate and test chromatogram, but without fittings or ferrules.
Column ends are melted or closed with septa. Additionally, we supply the corresponding test mixture with each column.
USP G16
polar phase
recommended for solvent analysis and alcohols
suitable for aqueous solutions
similar phases: Premabond® CW 20 M , DB-Wax, Supelcowax, HP-Wax, HP-INNOWAX, Rtx-Wax, CP-Wax 52 CB, Stabilwax, 007-CW, BP20, AT-Wax, ZB-Wax
Max. temperature for isothermal operation 240°C, max. temperature for short isotherms in a temperature programme: 250°C,
for 0.53 mm ID columns the max. temperatures are 220 and 240°C, resp.
Custom-made columns to your specifications available on request.
Each column is individually tested and supplied with test certificate and test chromatogram, but without fittings or ferrules.
Column ends are melted or closed with septa. Additionally, we supply the corresponding test mixture with each column.
Properties
| Film thickness: | 0.50 µm |
|---|---|
| Int. Ø: | 0.32 mm |
| Length: | 25 m |
| Manufacturer Article Number: | 726296.25 |
| Material column: | Quartz glass |
| Max. temperature programme: | 250 °C |
| Polarity: | Polar |
| Temperature max isotherm: | 240 °C |
| USP listing: | G16 |
