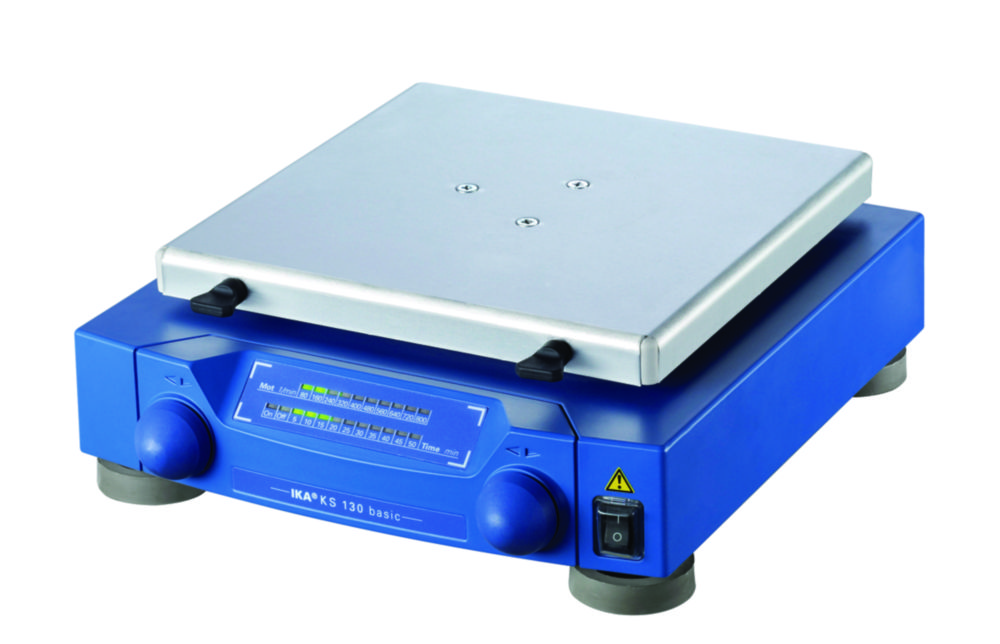

Orbital shaker, KS 130 basic
Product number:
9838150
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Length:
393 mm
Width:
380 mm
Height:
165 mm
Weight:
9 kg
Description
Small, quiet running, low-friction shaker with effective orbital movement and a maximum loading of 2 kg.
Attachments not included - Please order separately.
- Electronic speed control and timer adjustment
- LED scale bar speed and time display
- Large selection of attachments for different container types and sizes
- Timer 5 to 50 min/continuous
Attachments not included - Please order separately.
Properties
| Depth: | 316 mm |
|---|---|
| Dimensions (WxDxH): | 270 x 316 x 98 mm |
| Display: | Scale |
| Height: | 98 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0002980000 |
| Max. loading capacity: | 2 kg |
| Max. permitted ambient temperature: | 50 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 800 1/min |
| Max. voltage: | 240 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 80 1/min |
| Min. voltage: | 220 V |
| Permitted ambient temperature: | 5 ... 50 °C |
| Plug type: | EU |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 45 W |
| Shaking stroke: | 4 mm |
| Speed: | 80 ... 800 1/min |
| Type: | KS 130 basic |
| Type of movement: | Orbital |
| UNSPSC: | 41103811 |
| Weight: | 8.8 kg |
| Width: | 270 mm |
| With timer: | Yes |
