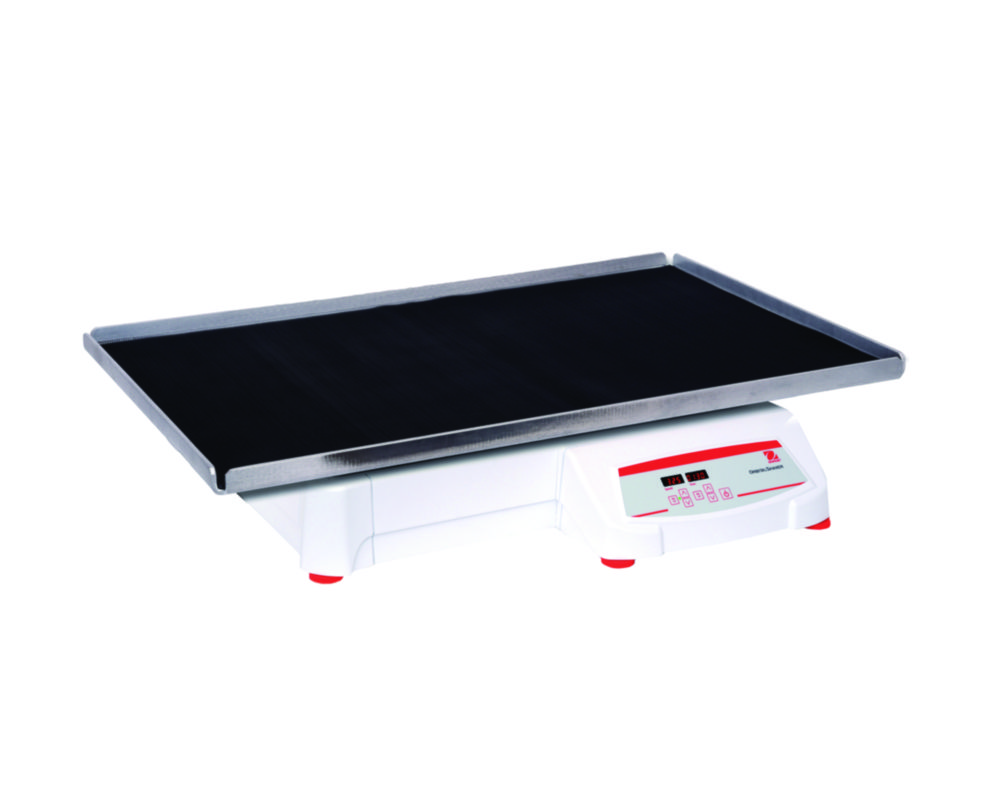

Orbital shaker SHHD, digital

With load capacities from 16 to 68 kg and over 70 accessory options, the Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted.

Triple Eccentric Drive
Speed Ramping Feature
Spill-Resistant Design
Suitable for CO₂ environments

Patented Accu-Drive Shaking System
Touchpad Control with Independent LED Displays for speed and time
Speed Calibration Mode
RS232 Interface
Load Sensor and Overload Protection
Audible Alarm
Timer 1 s to 160 h

Scope of supply: Shaker incl. built-in tray and non-slip rubber mat

Depth:	729 mm
Depth moving table:	610 mm
Dimensions (WxDxH):	678 x 729 x 170 mm
Display:	Digital
Height:	170 mm
Manufacturer Article Number:	30391865
Max. loading capacity:	45.4 kg
Max. permitted ambient temperature:	60 °C
Max. relative humidity rate:	80 %
Max. speed:	500 1/min
Max. voltage:	230 V
Min. permitted ambient temperature:	-10 °C
Min. speed:	15 1/min
Moving table (WxD):	610 x 610 mm
Permitted ambient temperature:	-10 ... 60 °C
Plug type:	EU
Power supply:	230 V, 50/60 Hz
Power supply frequency:	50/60 Hz
Rated capacity:	80 W
Shaking stroke:	25 mm
Speed:	15 ... 500 1/min
Type:	SHHD4525DG
Type of movement:	Orbital
UNSPSC:	41103811
Weight:	90.8 kg
Width:	678 mm
Width moving table:	610 mm
With timer:	Yes

Variants table
Buy	Unit price	Content	Delivery time	Preview	Product number	Depth	Depth moving table	Dimensions (WxDxH)	Height	Manufacturer Article Number	Max. loading capacity	Max. speed	Min. speed	Moving table (WxD)	Rated capacity	Shaking stroke	Speed	Type	Weight	Width	Width moving table
