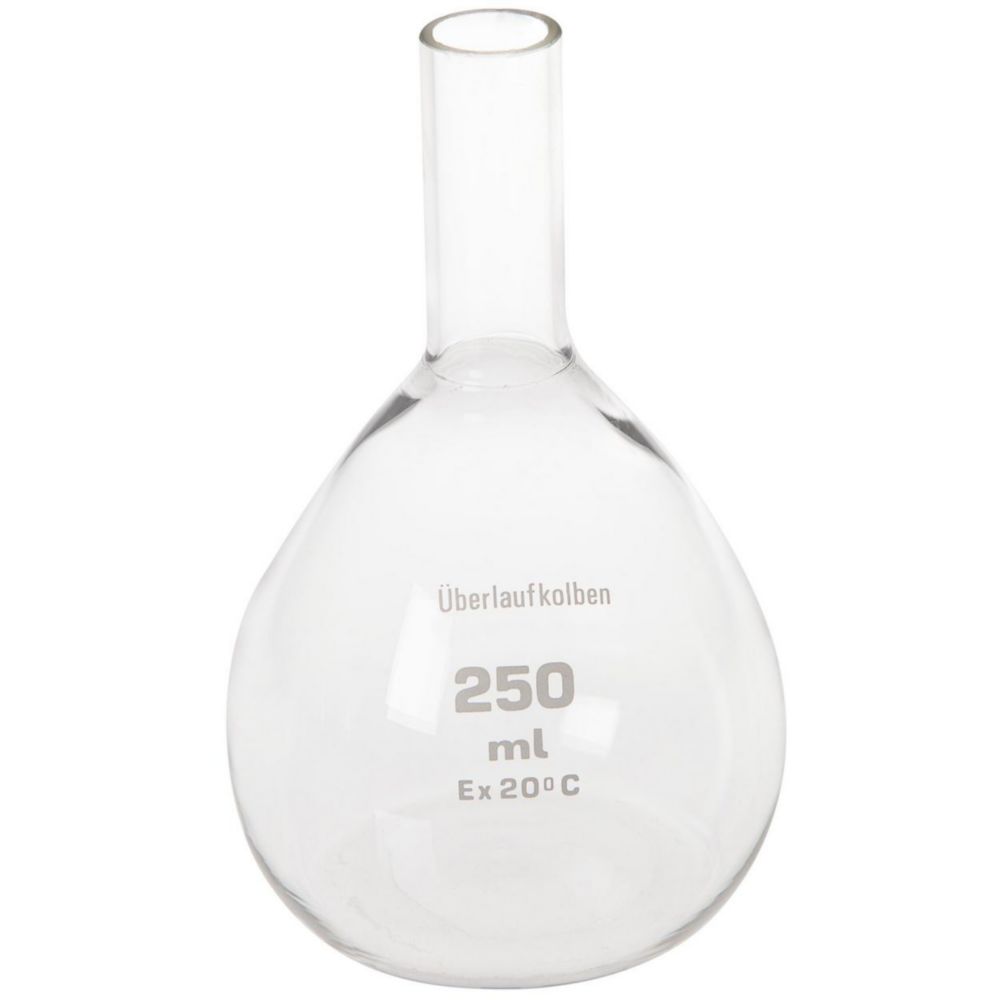

Overflow Measuring Flask for OxiTop®
Product number:
6201993
Manufacturer:
Xylem Analytics Germany (WTW)
Packaging information:
Weight:
0.069 kg
Description
Glass measuring flask with fixed volume doses for the easy and accurate measurement of the required sample volume for respirometric BSB measurements.
Properties
| Manufacturer Article Number: | 209070 |
|---|---|
| Nominal capacity: | 250 ml |
| UNSPSC: | 41-12-18-05 |
