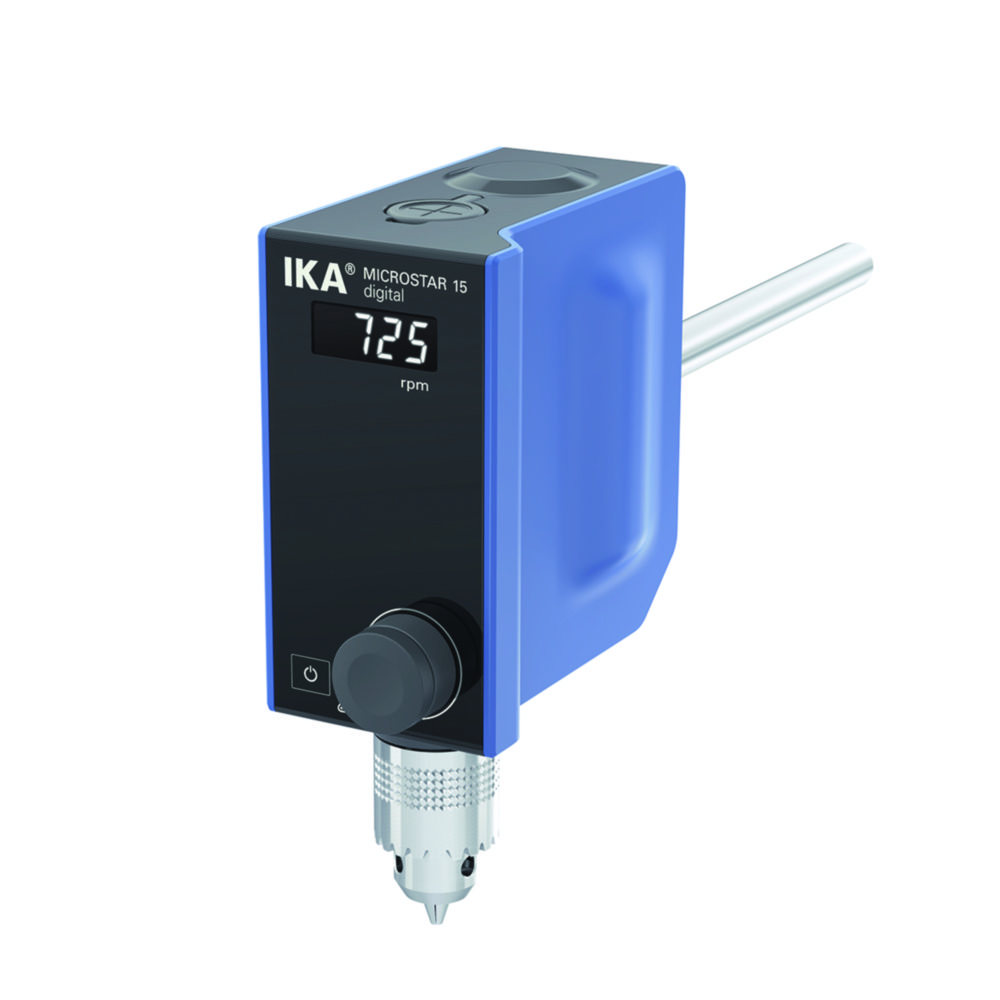

Overhead Stirrers MICROSTAR Digital
Product number:
6313057
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Length:
376 mm
Width:
261 mm
Height:
110 mm
Weight:
2.371 kg
Description
These powerful overhead stirrers convince with perfect basic functionalities. They have a compact, space-saving design and are easy-to-use.
- Operation via a stable rotary knob
- Hardened glass display for maximum visibility and chemical resistance
- Display clearly shows the rotational speed
- Regular software updates can be made rapidly and simply via the USB interface
- Chemical resistant housing
- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
- 10 years warranty
Properties
| Clamping range: | 0.5 ... 8 mm |
|---|---|
| Depth: | 126 mm |
| Dimensions (WxDxH): | 60 x 126 x 173 mm |
| Display: | Digital |
| Height: | 173 mm |
| IP code: | IP 54 |
| Manufacturer Article Number: | 0025004883 |
| Max. Viscosity: | 8000 mPa·s |
| Max. clamping width: | 8 mm |
| Max. speed: | 1000 1/min |
| Max. stirring capacity: | 10 l |
| Max. torque: | 15 Ncm |
| Max. voltage: | 240 V |
| Min. clamping width: | 0.5 mm |
| Min. speed: | 0 1/min |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 32 W |
| Speed: | 0 ... 1,000 1/min |
| Type: | MICROSTAR digital 15 |
| Type of auxiliary energy: | Mains connection |
| Warranty: | 10 years |
| Weight: | 1.26 kg |
| Width: | 60 mm |
| With timer: | No |
