PF - laboratory-flange triple clamp, 18/10 stainless steel
Product number:
9224853
Manufacturer:
BOCHEM Instrumente GmbH
Packaging information:
Length:
543 mm
Width:
182 mm
Height:
165 mm
Weight:
2 kg
Description

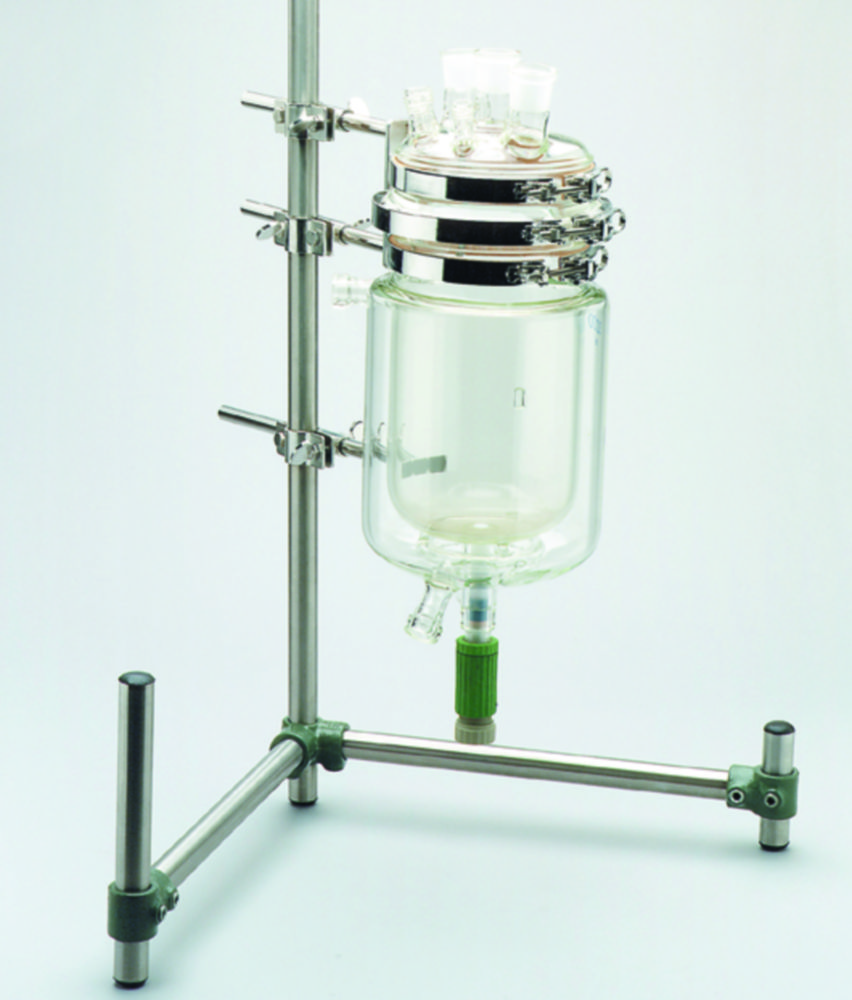

Holder for all PF- laboratory flasks for the alternating removal of vessel and lid. This special quick-release fastener ensures that the two laboratory flat flanges of reaction tube and flat flange lid are connected and, in addition, that the reaction tube and flat flange lid are held individually (optimal flange angle 45°). Without accessories.
Properties
| Clamping range: | 150 mm |
|---|---|
| Manufacturer Article Number: | 17023 |
| Material: | Stainless steel 1.4301 |
| Max. clamping width: | 150 mm |
| Shaft Ø: | 15 mm |
