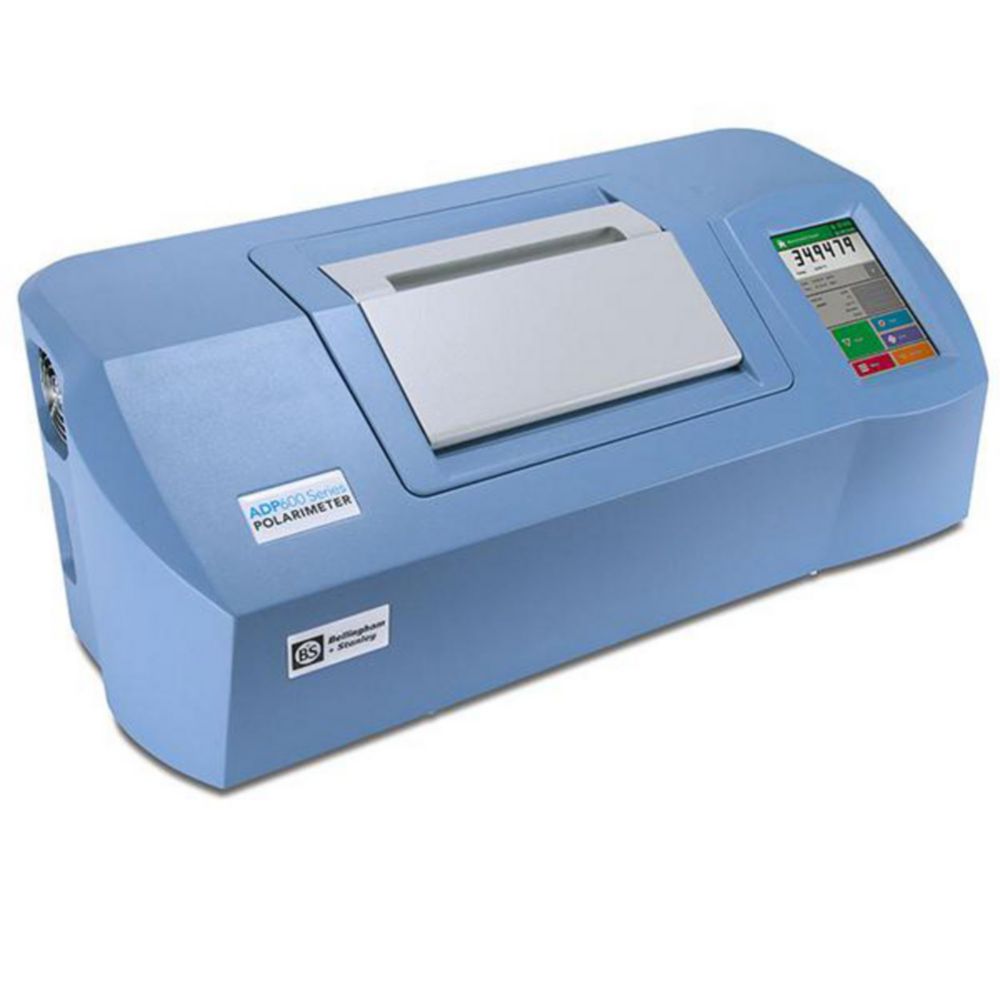

Polarimeter ADP600 series
€22,791.00*
Content:
1
Delivery according to order confirmation
Product number:
4694580
Manufacturer:
Bellingham + Stanley Ltd.
Packaging information:
Description
High-precision polarimeter with Peltier temperature control for applications in pharmacy, chemistry, food industry, and research. Pre-programmed methods (e.g. concentration, invert sugar, inversion (A-B), and specific rotation) simplify the performance of routine analyses.
- High-resolution 7.4" LCD touchscreen
- Simple menu structure with a method system
- RFID user identification
- UV/VIS lamp with narrow band filter
- Suitable for standard and low volume tubes
- USB (A), USB (B), RS232, and Ethernet interface
- Supports FDA Regulation 21 CFR Part 11
- USP/EP/BP/JP compliant
Properties
| Accuracy: | ±0.003 °A (589 nm), ±0.005 °A (365 nm) |
|---|---|
| Manufacturer Article Number: | 37-63 |
| Max. temperature: | 35 °C |
| Max. voltage: | 250 V |
| Measured range: | -355 ... 355 °A |
| Min. temperature: | 15 °C |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 250 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Resolution: | 0.0001 °A |
| Temperature: | 15 ... 35 °C |
| Type: | ADP622 |
| Type of auxiliary energy: | Mains connection |
| Wavelength: | 365/589 nm |
