Precision balance PCB, set
Product number:
4711860
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description

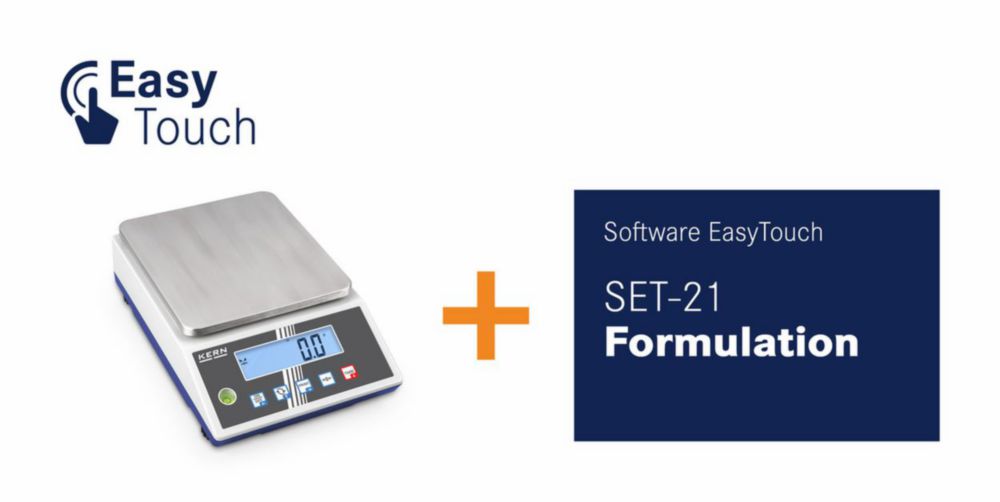

By combining the precision balance with the EasyTouch SET-21 recipes can be managed and saved. When implementing a recipe, EasyTouch Formulation guides the user through the recipe, component by component and provides support for accurate dispensing through the optical and acoustic dosing assistant. The correction function recognises overfilling and indicates this. If it is no longer possible to perform a take-out, then Easytouch can automatically adjust the recipe.
Scope of supply: Precision balance, Software EasyTouch SET-01 Base, Software EasyTouch SET-21 Formulation, USB interface adapter KERN KUP-03
Scope of supply: Precision balance, Software EasyTouch SET-01 Base, Software EasyTouch SET-21 Formulation, USB interface adapter KERN KUP-03
Properties
| Depth: | 245 mm |
|---|---|
| Depth weighing plate: | 105 mm |
| Dimensions (WxDxH): | 163 x 245 x 123 mm |
| Height: | 123 mm |
| Linearity: | ±5 mg |
| Manufacturer Article Number: | PCB 300-3-Rez |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 360 g |
| Readability: | 1 mg |
| Reproducibility: | 2 mg |
| Type: | PCB 300-3-Rez |
| Type of display: | LCD |
| UNSPSC: | 41111517 |
| Warranty: | 3 years |
| Weighing plate (WxD): | Ø 105 mm |
| Weight: | 0.85 kg |
| Width: | 163 mm |
