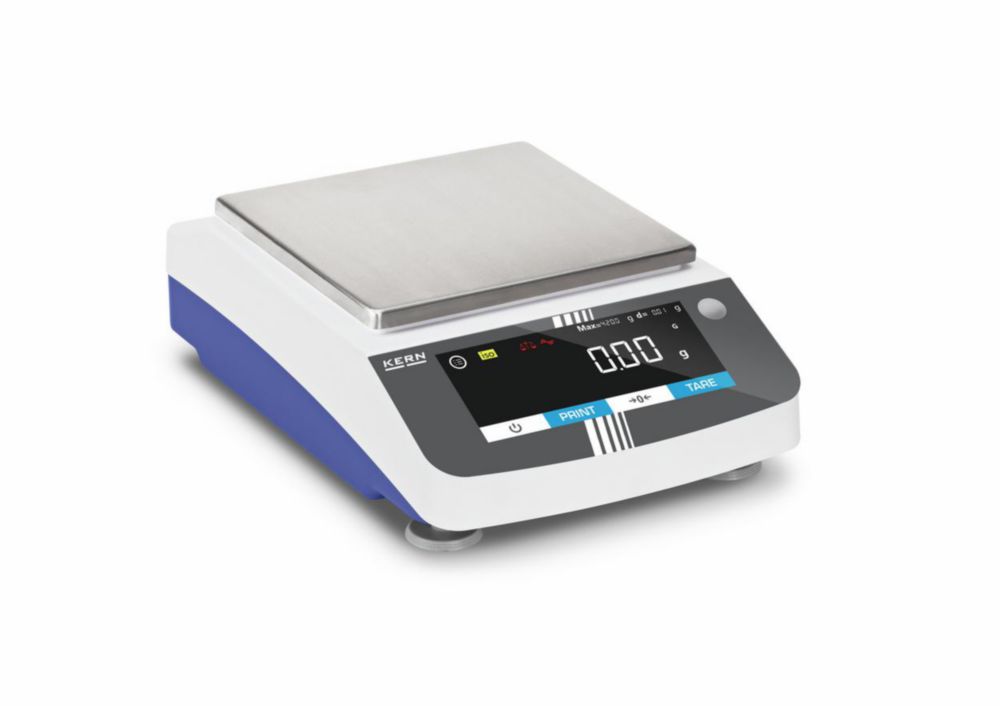

Precision balance PDS
Product number:
4711868
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description
Precision balance with flexible functionality and touch display for use in the pharmaceutical industry as well as other fields. The Windows Direct function allows weights to be transferred directly from the balance to a Windows application via a USB device connection, without the need for manual entry. Data query and remote control of the balance is carried out via computer or CRM/ERP systems using the KERN Communication Protocol.
Scope of supply: Precision balance, loop for underfloor weighing
- Backlit LCD display
- Underfloor weighing
- GLP/ISO record keeping
- RS 232 data interface and USB (Device)
- Weighing space (W×D×H) 174×162×228 mm
Scope of supply: Precision balance, loop for underfloor weighing
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 318 mm |
| Depth weighing plate: | 185 mm |
| Dimensions (WxDxH): | 207 x 318 x 110 mm |
| Height: | 110 mm |
| Linearity: | ±0,03 g |
| Manufacturer Article Number: | PDS 6000-2 |
| Material housing: | ABS |
| Material weighing plate: | Stainless steel |
| Max. load: | 6200 g |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/CH/US/AUS |
| Power supply: | 100 ... 240 V |
| Readability: | 0.01 g |
| Reproducibility: | 0.03 g |
| Type: | PDS 6000-2 |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LCD |
| UNSPSC: | 41111517 |
| Warranty: | 3 years |
| Weighing plate (WxD): | 185 x 185 mm |
| Weight: | 3.6 kg |
| Width: | 207 mm |
| Width weighing plate: | 185 mm |
| With draft shield: | No |
