Reciprocating shaker HS 501 digital
Product number:
6270850
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Length:
631 mm
Width:
548 mm
Height:
202 mm
Weight:
25.5 kg
Description
Low-profile laboratory shaker with large platform and 15 kg load capacity. With continuously adjustable speed range: 0 to 300 rpm, digital display and timer. Continuous operation is guaranteed even under extreme loads. Requires accessory attachments for operation (these are not supplied). Ideally suited for flasks, measuring cylinders and particularly separating funnels. Developed for universal applications. Timer from 1 to 55 min.
Properties
| Depth: | 585 mm |
|---|---|
| Dimensions (WxDxH): | 505 x 585 x 120 mm |
| Display: | Digital |
| Height: | 120 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0025002982 |
| Max. loading capacity: | 15 kg |
| Max. permitted ambient temperature: | 50 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 300 1/min |
| Max. voltage: | 230 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 0 1/min |
| Permitted ambient temperature: | 5 ... 50 °C |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 74 W |
| Shaking stroke: | 30 mm |
| Speed: | 0 ... 300 1/min |
| Type: | HS 501 digital |
| Type of movement: | Reciprocal |
| Weight: | 26 kg |
| Width: | 505 mm |
| With timer: | Yes |
Skip product gallery
From
€290.00*
From
€32.50*
From
€1,441.00*
From
€1,897.00*
Accessories
IKA-Werke GmbH & Co.KG
IKA-Werke GmbH & Co.KG
Accessories for Shakers KS/HS 501 digital

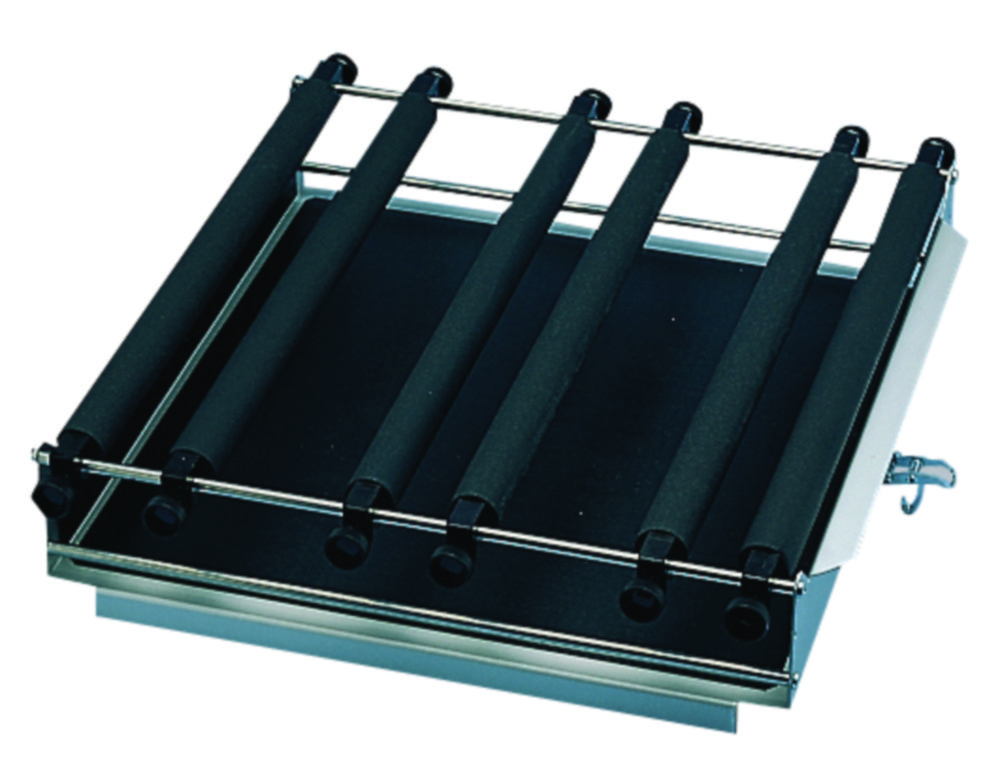

For orbital shaker KS 501 digital and reciprocating shaker HS 501 digital.AS 501.1 Universal attachmentFor a variety of vessels (flasks, beakers etc.) with volumes of at least 50 ml (ideally greater than 250 ml). With tension rollers that can be mounted on 2 levels.Usable area: 420 mm x 420 mm.AS 501.5 Dish attachmentFor the gentle movement of petri dishes, but also suitable for gentle mixing in vessels with large, flat bottoms (wide mouth erlenmeyers, beakers). Fitted with a non-slip, plastic mat.Usable area: 420 mm x 420 mm.
IKA-Werke GmbH & Co.KG
IKA-Werke GmbH & Co.KG
Clamps for IKA shakers and shaking incubators
Clamps for safe shaking of Erlenmeyer flasks.
IKA-Werke GmbH & Co.KG
IKA-Werke GmbH & Co.KG
Fixing clip platform AS 501.4
For shaking round bottom, flat-bottom, pear-shaped, volumetric and erlenmeyer flasks etc. Minimum volume 25 ml.Capacity: Number of fixing clips (volume held) 110 x AS 2.1 (25 ml), 55 x AS 2.2 (50 ml), 35 x AS 2.3 (100 ml), 16 x AS 2.4 (250 ml), 12 x AS 2.5 (500 ml), 8 x AS 2.6 (1000 ml)Without spring clips.
IKA-Werke GmbH & Co.KG
IKA-Werke GmbH & Co.KG

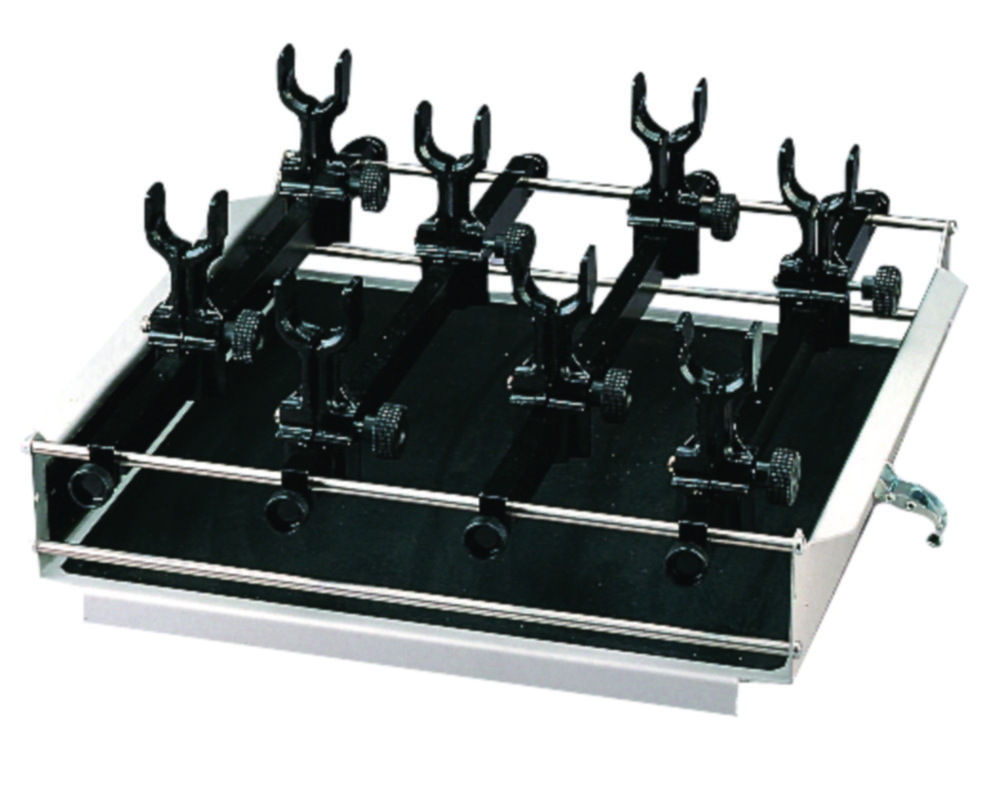

Separating funnel attachment for reciprocating shaker HS 501 digital
AS 501.2Comprises basic holder, 6 tension rollers, 2 x 6 clamping devices.Suitable for 12 x 50 ml, 10 x 100 ml or 6 x 250 ml separating funnels.AS 501.3Comprises basic holder, 4 tension rollers, 2 x 4 clamping devices.Suitable for 4 x 500 ml, 3 x 1000 ml or 2 x 2000 ml separating funnels.AS 501.6Comprising basic holder, 4 clamping devices, 4 support bars and 8 ground cone section holders.For shaking 4 x 1000 ml separating funnels.
