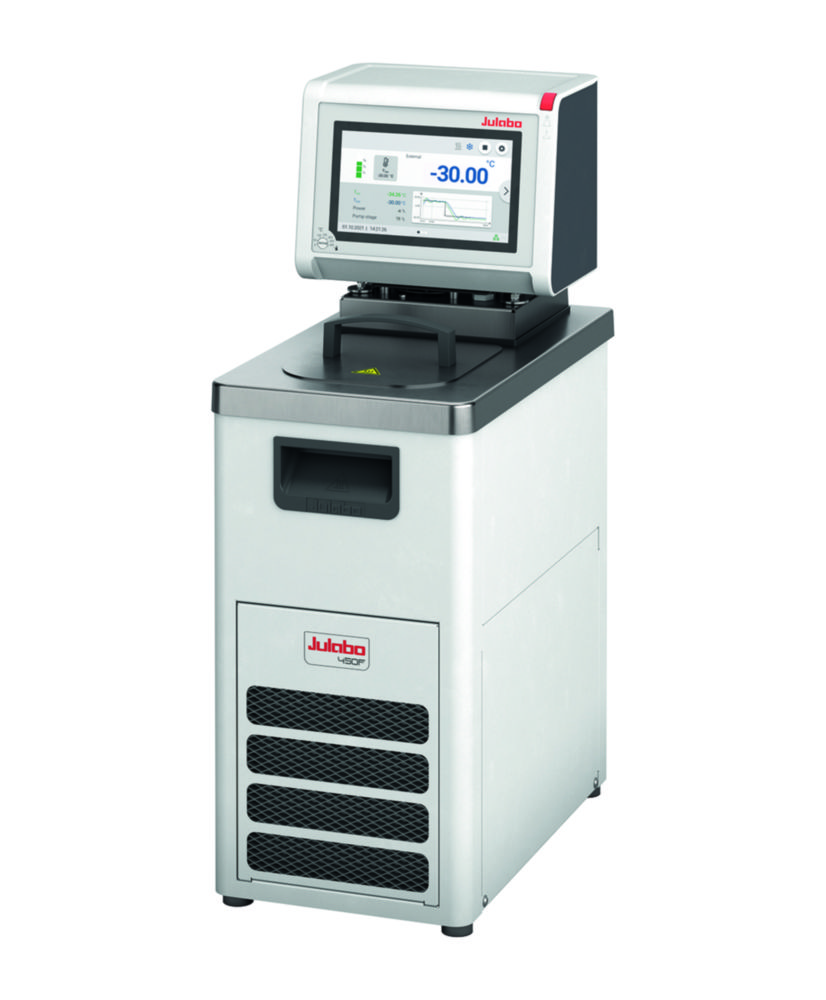

Refrigerated circulators MAGIO™ MS/MX
Product number:
4685647
Manufacturer:
Julabo GmbH
Packaging information:
Description
Refrigerated circulators for precise, reliable temperature control of demanding external applications, e.g. in basic research, material testing and technical installations.
- High-resolution 7" TFT touch display with multilingual user interface
- External pump connections (M16x1)
- Integrated programmer for 8 x 60 program steps
- Infinitely adjustable, extremely powerful pressure and suction pump
- External Pt100 connection
- USB interface
- RS232/RS485 interface
- Ethernet interface
- Modbus
- Connections for solenoid valve
- Medium-contacting parts made of stainless steel
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
Properties
| Bath depth: | 150 mm |
|---|---|
| Cooling capacity at 20 °C: | 0,4 kW |
| Depth opening: | 150 mm |
| Ext. depth: | 400 mm |
| Ext. height: | 650 mm |
| Ext. width: | 230 mm |
| External dimensions (WxDxH): | 230 x 400 x 650 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | 9032714.S1 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.92 bar |
| Max. flow rate: | 31 l/min |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 4 l |
| Min. temperature: | -30 °C |
| Min. voltage: | 200 V |
| Min. volume bath: | 3 l |
| Opening (WxD): | 130 x 150 mm |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Refrigerant: | R449A |
| Temperature: | -30 ... 200 °C |
| Temperature stability: | ±0,01 °C |
| Type: | MS-450F |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 3 ... 4 l |
| Weight: | 29 kg |
| Width opening: | 130 mm |
| With lid: | Yes |
| With timer: | Yes |
