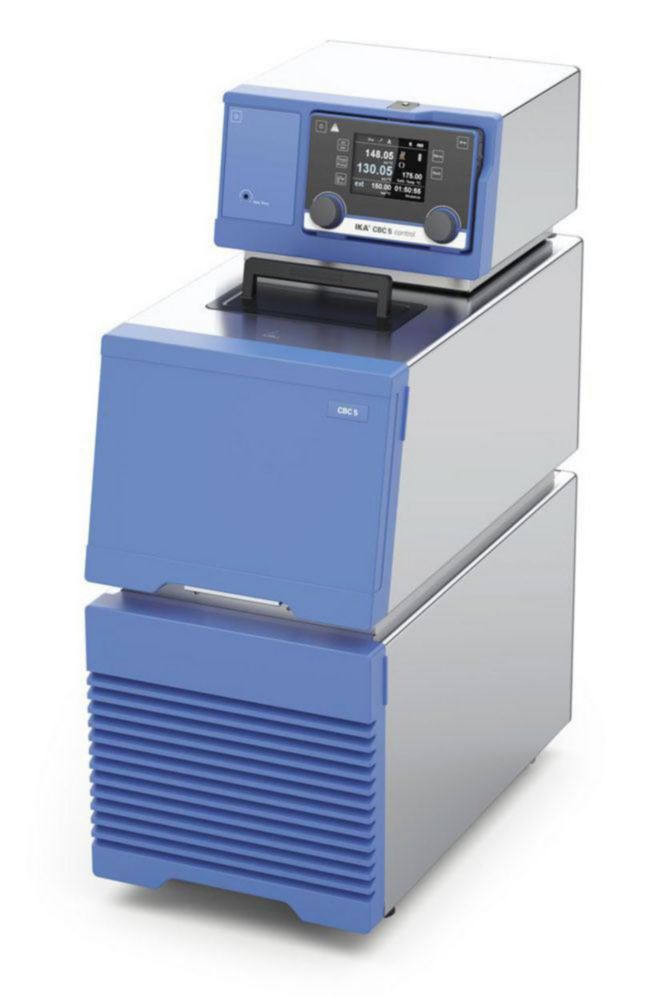

Refrigerated / heated circulatores CBC 5 control
Product number:
6289336
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Description
Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.
- Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connection
- Visual and audible warning functions
- USB/RS 232 interface
- Safety drain valve
- Adjustable safety circuit
- Calibration option
- With removable TFT display for controlling and monitoring the device parameters. The display can be used as a remote control, e.g. in a fume hood
Properties
| Bath depth: | 150 mm |
|---|---|
| Cooling capacity at 20 °C: | 350 W |
| Ext. depth: | 490 mm |
| Ext. height: | 690 mm |
| Ext. width: | 275 mm |
| External dimensions (WxDxH): | 275 x 490 x 690 mm |
| Heating capacity: | 2500 W |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0004167000 |
| Max. delivery pressure: | 0.61 bar |
| Max. flow rate: | 31 l/min |
| Max. suction pressure: | 0.45 bar |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 7 l |
| Min. temperature: | -25 °C |
| Min. volume bath: | 5 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Refrigerant: | R134a |
| Temperature: | -25 ... 200 °C |
| Temperature stability: | 0,01 K |
| Type: | CBC 5 control |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Volume bath: | 5 ... 7 l |
| Weight: | 46.5 kg |
