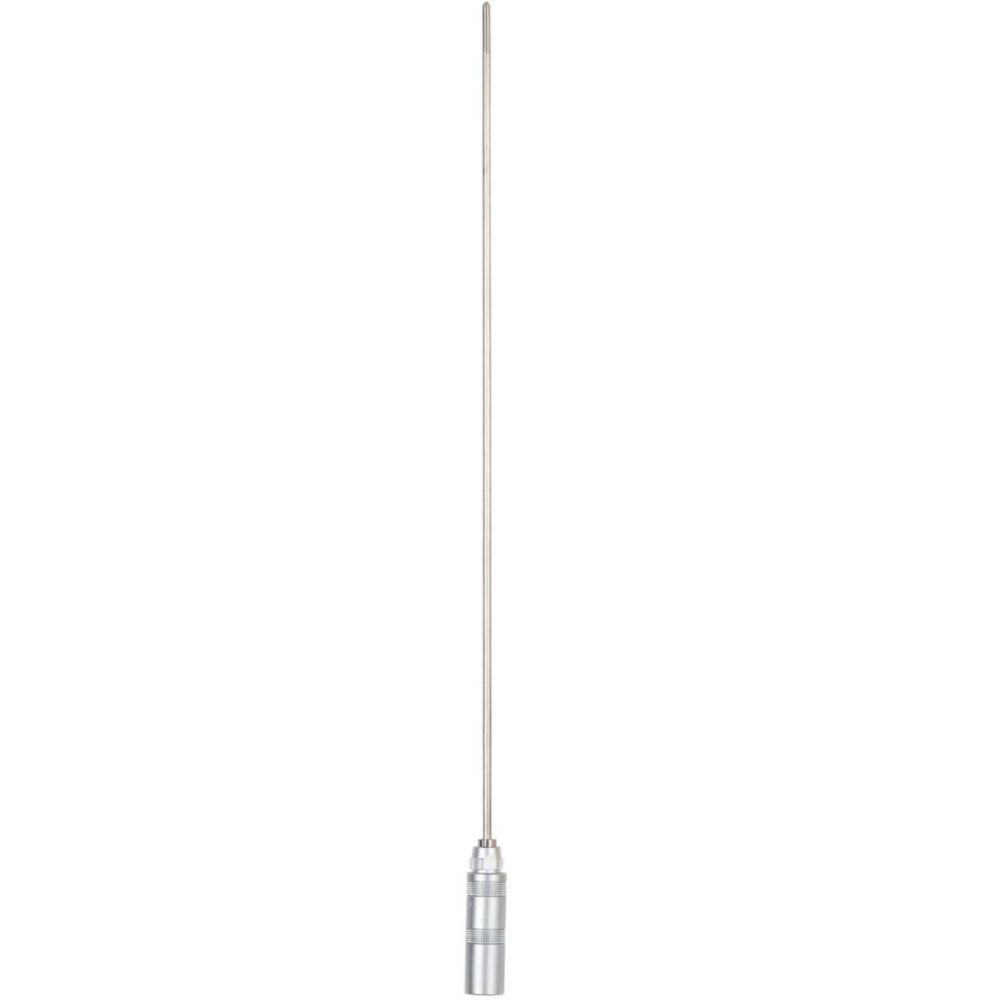

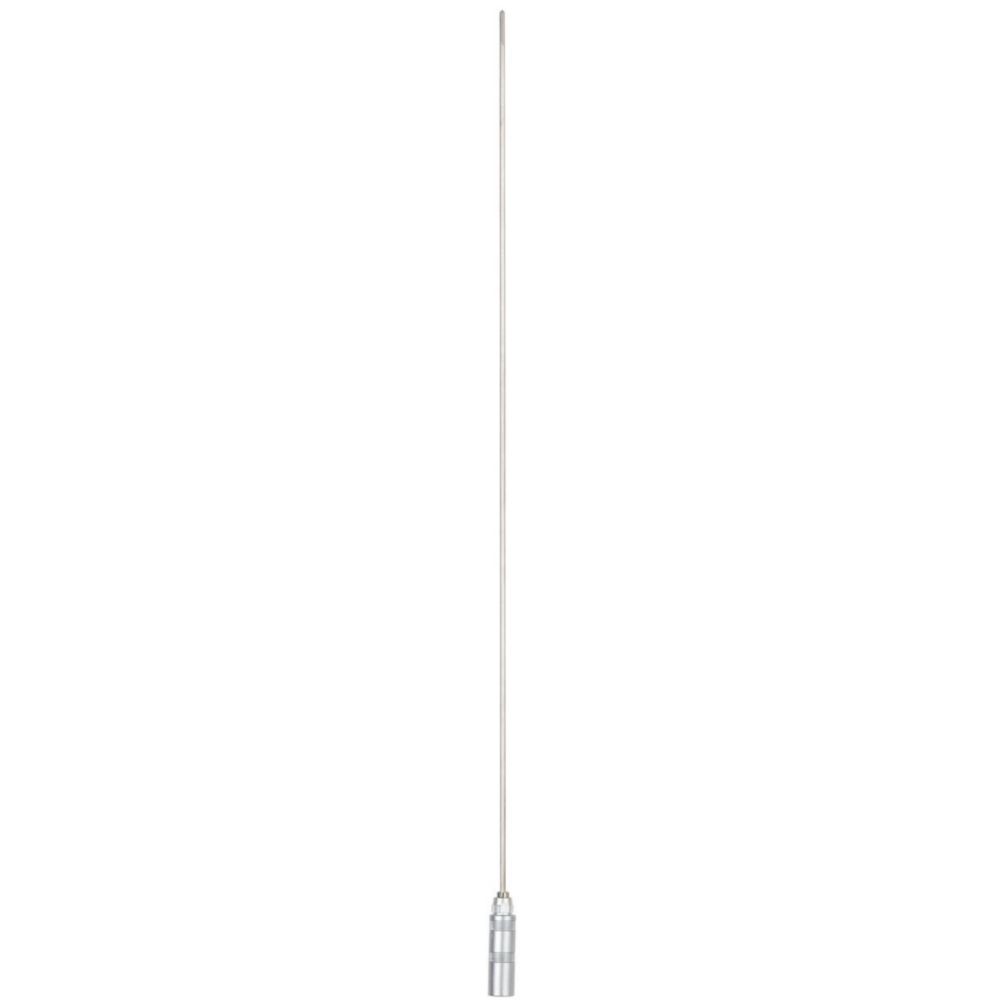

Rod probe, thermocouple, Lemo connection
Product number:
6236416
Manufacturer:
Xylem Analytics Germany (EBRO)
Packaging information:
Length:
50 mm
Width:
18 mm
Height:
15 mm
Weight:
0.011 kg
Description
Blunt rod probe with Inconel needle and Lemo connection for measuring the temperature of air, ovens, fluids, and gases. Without cable.
Properties
| Accuracy class: | 2 |
|---|---|
| Connection plug: | Lemo |
| Dimensions (ØxL): | 0.5 x 185 mm |
| Length: | 185 mm |
| Manufacturer Article Number: | 1341-0611 |
| Max. temperature: | 1100 °C |
| Min. temperature: | -40 °C |
| Temperature: | -40 ... 1,100 °C |
| Type: | TPN 100 |
| Type of probe: | Thermocouple |
| Ø: | 0.5 mm |
