Rotary evaporator package RV 10 auto pro V-C Complete
€13,447.00*
Content:
1
Delivery according to order confirmation
Product number:
4684003
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Weight:
21 kg
Description

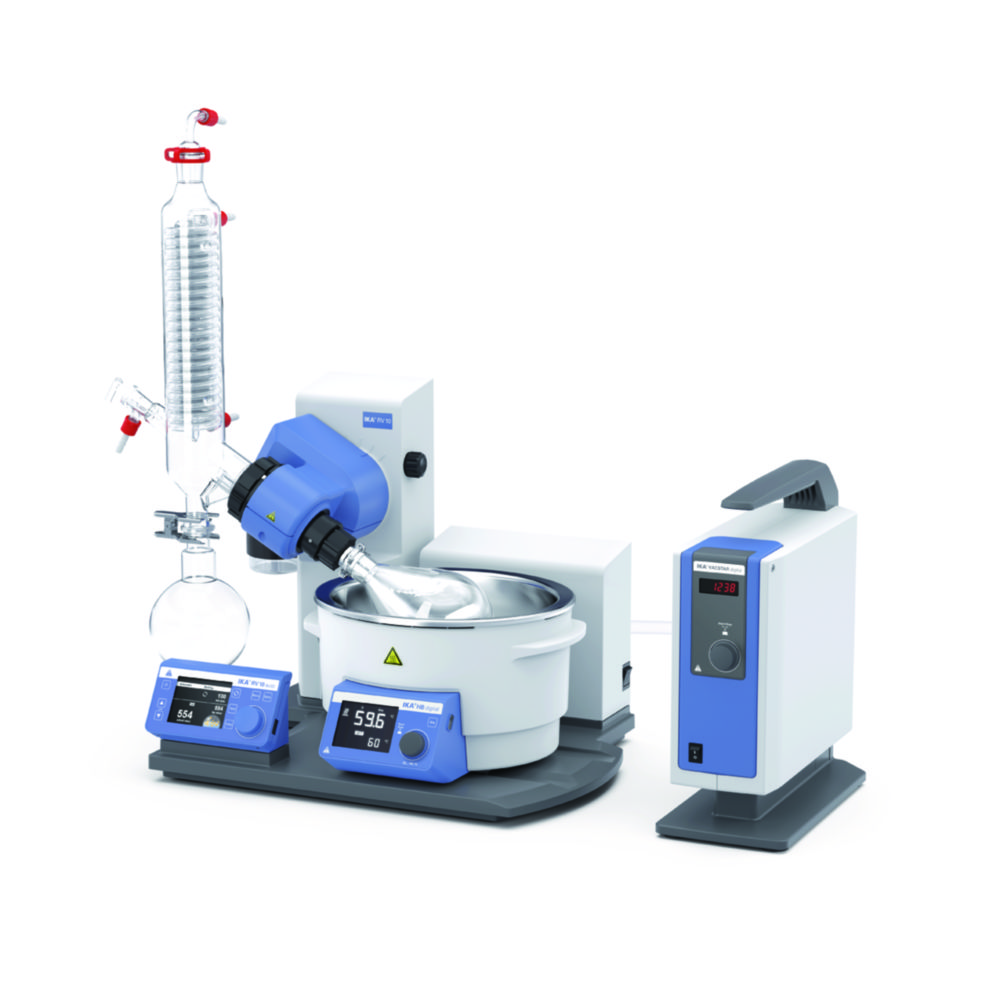

The complete solution for a rotary evaporator setup. In addition to the RV 10 auto rotary evaporator, the package includes the HB digital heating bath, the VACSTAR digital vacuum pump and the RC 2 lite circulation cooler.
Scope of supply: RV10 control rotary evaporator, RV 10.10 glassware, RV 10.70 vapour feed-through tube, HB digital S099 heating bath, VACSTAR digital vacuum pump, H.SI.8 vacuum hose, VSE 1 condenser, RC 2 lite circulation cooler, H 11 mains cable
- Rotary evaporator RV 10 auto with intuitive TFT colour display and integrated vacuum controller with automatic control of the vacuum and cooling water monitoring
- Vacuum pump VACSTAR digital achieves a minimum vacuum of 2 mbar, is controlled directly by the RV 10 auto drive unit via the data cable supplied
- Circulating cooler RC 2 lite with 400 W cooling capacity and pressure and suction pump with 0.35 bar for simple cooling tasks down to -10 °C
Scope of supply: RV10 control rotary evaporator, RV 10.10 glassware, RV 10.70 vapour feed-through tube, HB digital S099 heating bath, VACSTAR digital vacuum pump, H.SI.8 vacuum hose, VSE 1 condenser, RC 2 lite circulation cooler, H 11 mains cable
Properties
| Condenser: | Vertical |
|---|---|
| Cooling surface: | 1600 cm² |
| Depth: | 440 mm |
| Dimensions (WxDxH): | 500 x 440 x 430 mm |
| Glassware: | Coated |
| Heating capacity: | 1300 W |
| Height: | 430 mm |
| IP code: | IP 20 |
| Lift: | Electrical |
| Lifting path: | 140 mm |
| Manufacturer Article Number: | 0010007353 |
| Max. speed: | 300 1/min |
| Max. temperature: | 180 °C |
| Max. voltage: | 240 V |
| Max. volume bath: | 3 l |
| Min. speed: | 5 1/min |
| Min. voltage: | 220 V |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Speed: | 5 ... 300 1/min |
| Temperature: | RT ... 180 °C |
| Temperature addition: | RT |
| Type: | RV 10 auto pro V-C Complete |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104804 |
| Ultimate vacuum: | 1050 mbar |
| Weight: | 21.5 kg |
| Width: | 500 mm |
