Sampler LiquiSampler, PTFE/FEP
Product number:
9303950
Manufacturer:
Bürkle GmbH
Packaging information:
Length:
32 mm
Width:
32 mm
Height:
1000 mm
Weight:
0.681 kg
Description

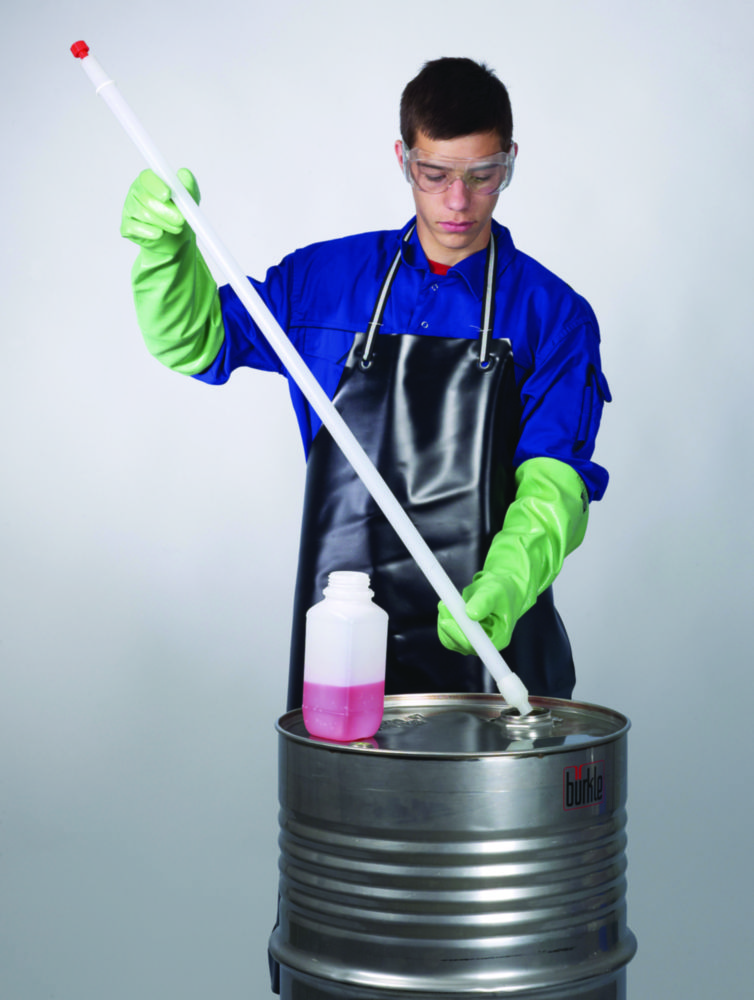

DIN EN ISO 15528. For liquids. Made of ultra pure and chemically inert PTFE/FEP for contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Properties
| Colour: | Transparent |
|---|---|
| Food safe: | Yes |
| Length: | 1000 mm |
| Manufacturer Article Number: | 5330-2100 |
| Material: | PTFE/FEP |
| Nominal capacity: | 250 ml |
| Ø: | 32 mm |
Skip product gallery
From
€193.20*
Other customers also bought
Bürkle GmbH
Bürkle GmbH
Sampler LiquiSampler, PP
DIN EN ISO 15528. For liquids. For contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Skip product gallery
Sampling Dippers DispoDipper LaboPlast® / SteriPlast®, PP, blue transparent
From
€16.12*
TeleScoop Telescopic Rods, aluminium
From
€26.30*
Angular, sample beakers, angled for TeleScoop, PP
From
€53.40*
Plankton net
From
€79.50*
Bottle holder for TeleScoop, PP/PA
From
€62.30*
Dip samplers, PP
From
€49.20*
Well Scoop Thermometers
From
€93.20*
Angled sample beaker, PP
From
€40.50*
Pendulum beaker for TeleScoop, PP
From
€49.80*
Fiber glass telescopic pole INGENIOUS
From
€43.20*
Syringe SteriPlast® , PP
From
€21.50*
Similar products
Scaled sampling tube manufactured in a clean room specially designed for disposable use. Due to the blue colour, it is also perfect for use in the food, animal feed and pharmaceutical industries. After sampling, the container can be closed and is leakproof. DispoDipper is completely manufactured in one piece and can be used for sampling and subsequent transport of the sample in one device. In this way, cross-contamination or sample impurities are almost impossible. For sampling, first remove the cover at the predetermined breaking point. Then take the sample with the sample container and close it securely. After sampling, the handle at the predetermined breaking point can be detached from the sample container. This allows for easy and space-saving transport of the sample.Individually packaged and optionally sterilised by gamma rays (SteriPlast®)Production and packaging according to clean room class 7Complies with EU food requirements and FDA regulations
Different tools can be attached to the telescopic rod (snap-in joint). The individual rods have been provided with an end stop. This means that one rod cannot accidentally slip out of another rod. The telescopic rods cannot be rotated radially.Increased rigidity by using cold-rolled profile rodSprings made of stainless steel
TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net e.g. for taking solid and organic samples from water courses) are attached to the rod by a practical snap-in joint. Ideal for sampling from baths, tanks, shafts, open water courses etc. Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.With individually variable angle adjustment.
Mesh width 65 µm, robust version with sturdy aluminium ring of 200 mm diameter. The ring is covered with nylon fabric to protect the silk gauze from ripping up. With 100 ml collecting vessel (100 ml Kautex flask). Net could be opened at the botton for filling the bottles. With universal connecting part. For use with INGENIOUS telescopic poles.
TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net e.g. for taking solid and organic samples from water courses) are attached to the rod by a practical snap-in joint. Ideal for sampling from baths, tanks, shafts, open water courses etc. Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.Holds bottles up to max. 88mm diameter incl. 750ml bottle (Spare bottle Cat. No. 9.072 987). Suitable for plastic and glass bottles. With universal quick-action clamping strap.
For simple removal of liquid samples.Good view due to transparent tubesUpper end with reflux valve, lower end with ball valveAll-layer and point sampling possible500 ml dip sampler stepless extendable from 100 to 200 cm
Well Scoop Thermometer and Tank Thermometer in brass armour, scooping vessel 70 x 32 mm, thermometer with milk glass scale, calibratable, red filling, capillary blue reflecting.
With exchangeable beaker made of PP. The construction of the beaker holder (stainless steel tension band) makes it possible to turn the beaker around in order to change the pouring direction as well as the adjustment of the click-in angle construction (0 to 180°). For use with INGENIOUS telescopic poles.
TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net e.g. for taking solid and organic samples from water courses) are attached to the rod by a practical snap-in joint. Ideal for sampling from baths, tanks, shafts, open water courses etc. Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.Automatically swings into a vertical position. Nothing can be spilt. Ideal for deep and narrow shafts.
Very robust telescopic pole, ideal for sample taking. Fiber glass makes it almost indestructible and non-corrosive. Comfortable to carry even at low temperatures. Simple extension and adjustment mechanism. You can change the length easily by a quarter rotation. (Pic. 3). At telescope poles of 3,85 to 6 m the length could be easily changed by using the clamp (Pic. 2). Comfortable use of spring mechanism. This type can take all samplers and catchers with universal connecting part. Easy exchange of the sample taking equipment by pressing the spring mechanism.
Sterilised, individually packaged, transparent. A Luer adapter is supplied for the 100 ml syringe.
Skip product gallery
b.safe Caps, with ground joint, PTFE
From
€86.10*
Customers also viewed

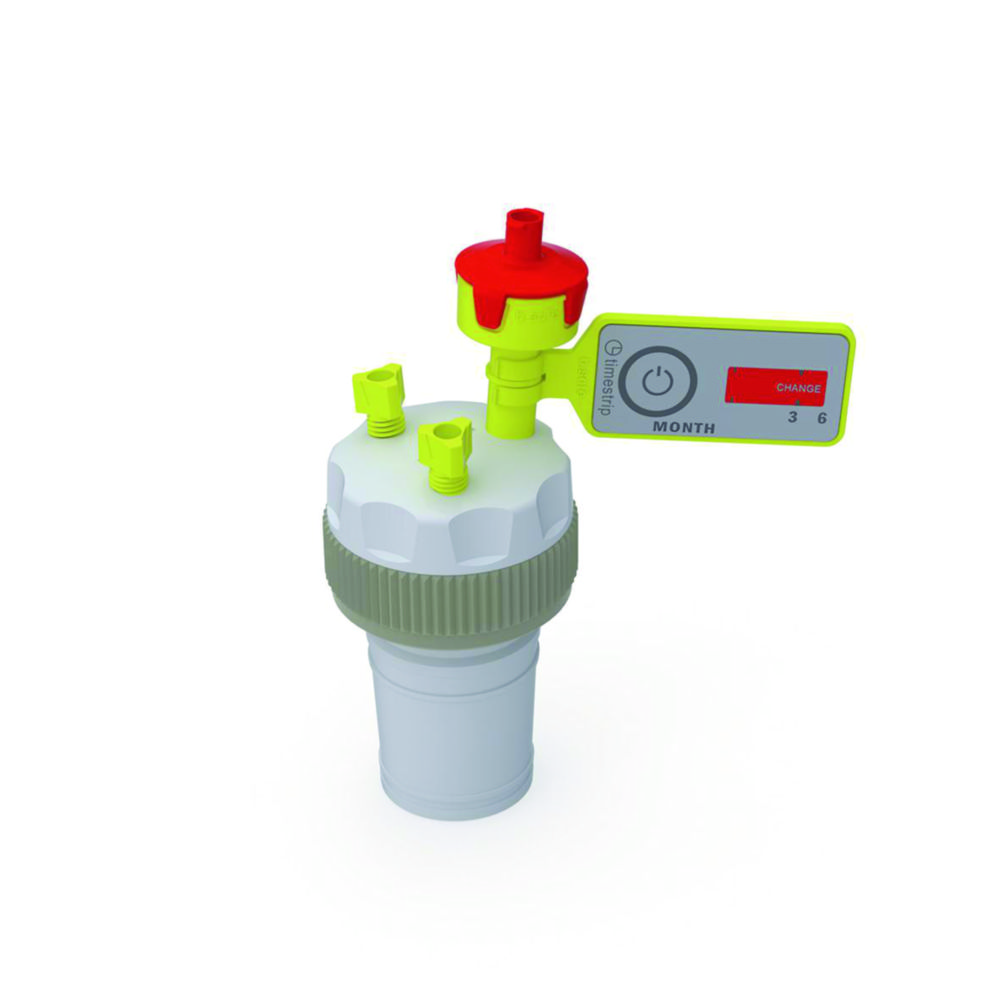

Caps with ground joint cone NS 29/32, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fitting (PFA), air valve, locking nut (PP)
