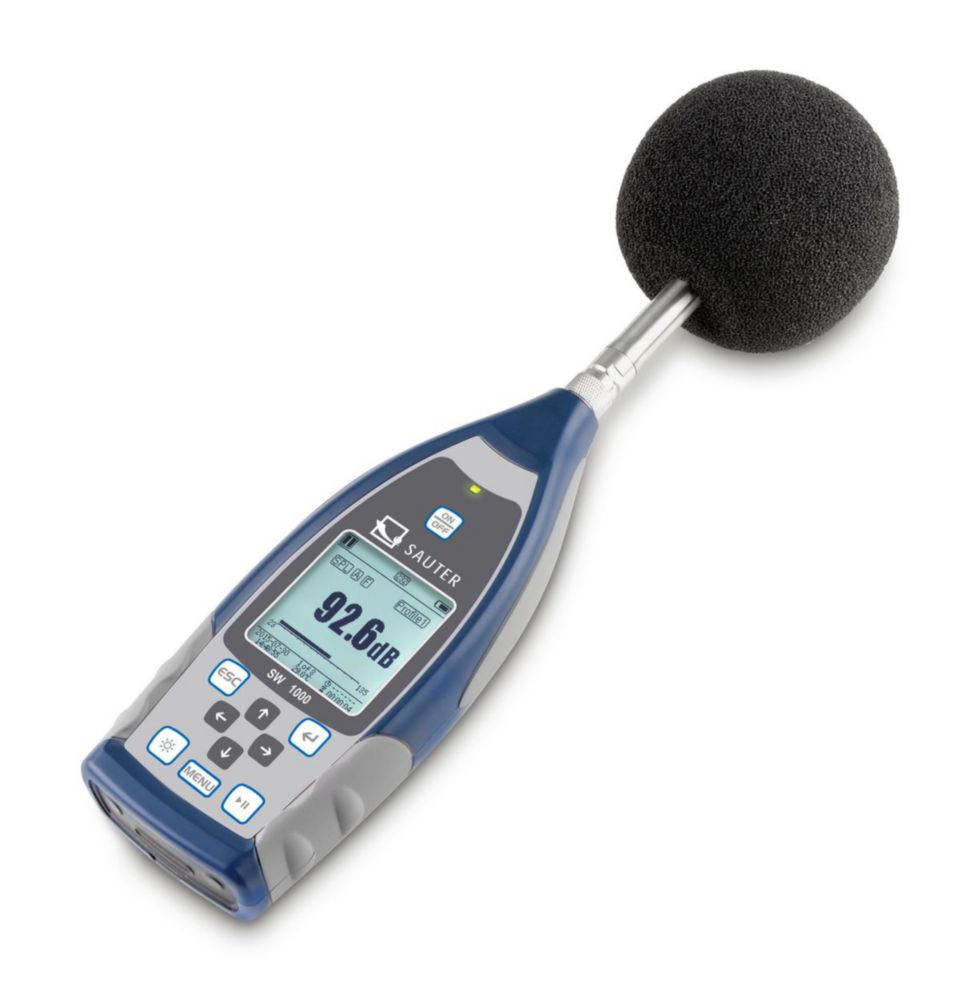

Sound level meter class I and II

Product number:
4676252
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
1.55 kg
Description
For measurements for workplaces which are outdoors, e.g. at airports, on building sites, in road construction etc. with broad access to spectrum thanks to the highly-accurate 24-Bit A/D converter.
Scope of supply: Sound level meter, memory card, hard carrying case
- Different sound pressure levels can be selected, such as, for example, Laeq, LcPeak, LaF, LaFMax, LaFMin, SD, SEL, E
- The optimised analogue frontend switch reduces the ambient noise and increases the linear measuring range
- Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting
- LN statistics and display of the graph showing the progression of time
- User-defined integral interval measurement up to a maximum of 24 hours is possible
- Frequency weighting (filter) A, B, C, Z
- Time interval during measurement: F (fast), S (slow), I (pulse)
- Freely-definable limits for the output of an optical alarm signal
- Peak Hold Mode to capture peaks
- Octavo function for targeted sound analysis
- Track function with graphic display of a measurement
- Calibration mode (with optional calibrator)
- Trigger mode: Analogue signal to switch the device on or off with 3.5 mm plug
- Automatic measurement for timer function is possible
- Measured value recording frequency selectable: 10, 5, 2 Hz
- Data transfer using MicroSD (4 GB), RS-232 or USB
- Option of fitting a column on the rear of the housing, ¼ thread
Scope of supply: Sound level meter, memory card, hard carrying case
Properties
Battery/rechargeable battery: | 4 x 1.5 V, AA |
---|---|
Depth: | 80 mm |
Designation ANSI: | AA |
Dimensions (WxDxH): | 300 x 80 x 36 mm |
Height: | 36 mm |
Manufacturer Article Number: | SW 2000 |
Material housing: | Plastic |
Max. measured value: | 136 db(A) |
Max. voltage battery/rechargeable battery: | 1.5 V |
Measured range: | 25 ... 136 db(A) |
Min. measured value: | 25 db(A) |
No. of batteries/rechargeable batteries: | 4 |
Type: | SW 2000, II |
Type of auxiliary energy: | Battery |
Width: | 300 mm |
