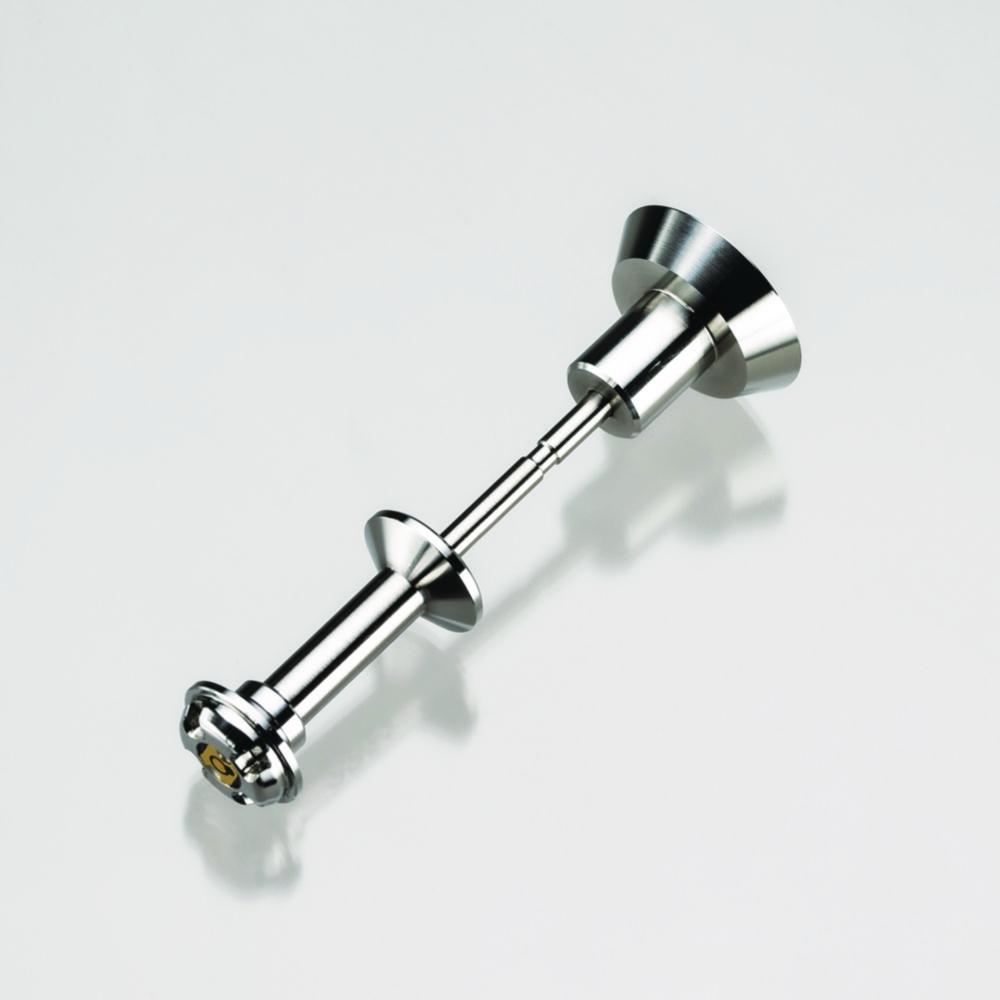

Spindles for cone/plate measuring system PTD 100 Cone-Plate
Product number:
4703001
Manufacturer:
Anton Paar Germany GmbH
Packaging information:
Description
Properties
| For: | PTD 100 Cone-Plate |
|---|---|
| Manufacturer Article Number: | 253824 |
| Material: | Stainless steel 1.4404 |
| Type: | CP51 |
| Ø: | 24 mm |
