Temperature data logger LOG200
Product number:
6284757
Manufacturer:
TFA Dostmann GmbH & Co.KG
Packaging information:
Length:
161 mm
Width:
118 mm
Height:
50 mm
Weight:
0.1 kg
Description
Data logger for monitoring and recording the temperature during storage and transportation of sensitive products. Measurement data can be transferred to a PC via the integrated USB interface. Free LogConnect software for configuration (alarms, interval, changing display settings) or LogGraph2 for convenient graphical and tabular display of measured values, including drag and zoom. Software is available for download.
Scope of supply: Temperature data logger, battery (1/2 AA, 3.6 V), wall mount
- Incl. calibration certificate
- Memory for 150000 readings
- Usable without software (pre-programmed 15 minute reading interval)
- Automatic output as PDF file
- Recording interval adjustable (10 seconds to 24 hours)
- Max-Min values in the display (resettable)
- Time marking function during recording (time marker)
- Motion sensor for shock recording e.g. change of location or opening of windows and doors
- Battery life approx. 4 years (with recording interval >15 minutes)
- Incl. wall mount
- Status and alarm LEDs with acoustic signal (buzzer)
- HACCP compliant in accordance with EN 12830
- IP65 waterproof
Scope of supply: Temperature data logger, battery (1/2 AA, 3.6 V), wall mount
Properties
| Depth: | 91.5 mm |
|---|---|
| Dimensions (WxDxH): | 42 x 91.5 x 20 mm |
| Disposable: | No |
| Height: | 20 mm |
| IP code: | IP 65 |
| Manufacturer Article Number: | 31.1057.02 |
| Material housing: | ABS |
| Max. measuring cycle: | 15 min |
| Max. temperature: | 70 °C |
| Measuring cycle: | 15 min |
| Min. temperature: | -40 °C |
| Resolution: | 0.1 °C |
| Temperature: | -40 ... 70 °C |
| Type: | LOG200 |
| Type of auxiliary energy: | Battery |
| Weight: | 70 g |
| Width: | 42 mm |
| With external sensor: | No |
Skip product gallery
WiFi Temperature logger testo Saveris 2-T1
From
€174.00*
WiFi Temperature logger testo Saveris 2-T2 Set
From
€385.00*
Temperature logger testo 175 T1
From
€161.00*
WiFi Temperature logger testo Saveris 2-T3
From
€280.00*
Standard PDF data dogger EBI 300
From
€97.00*
Surface probe, thermocouple Type K
From
€107.00*
Temperature data logger Traceable® Excursion-Trac™, with 1 vaccine bottle probe
From
€172.40*
Temperature data logger Traceable® Memory-Loc™, with 1 vaccine bottle probe
From
€216.40*
Temperature data logger Traceable® Memory-Loc™, with 2 vaccine bottle probes
From
€200.20*
Temperature data logger Traceable® Memory-Loc™, with 1 insertion probe
From
€289.10*

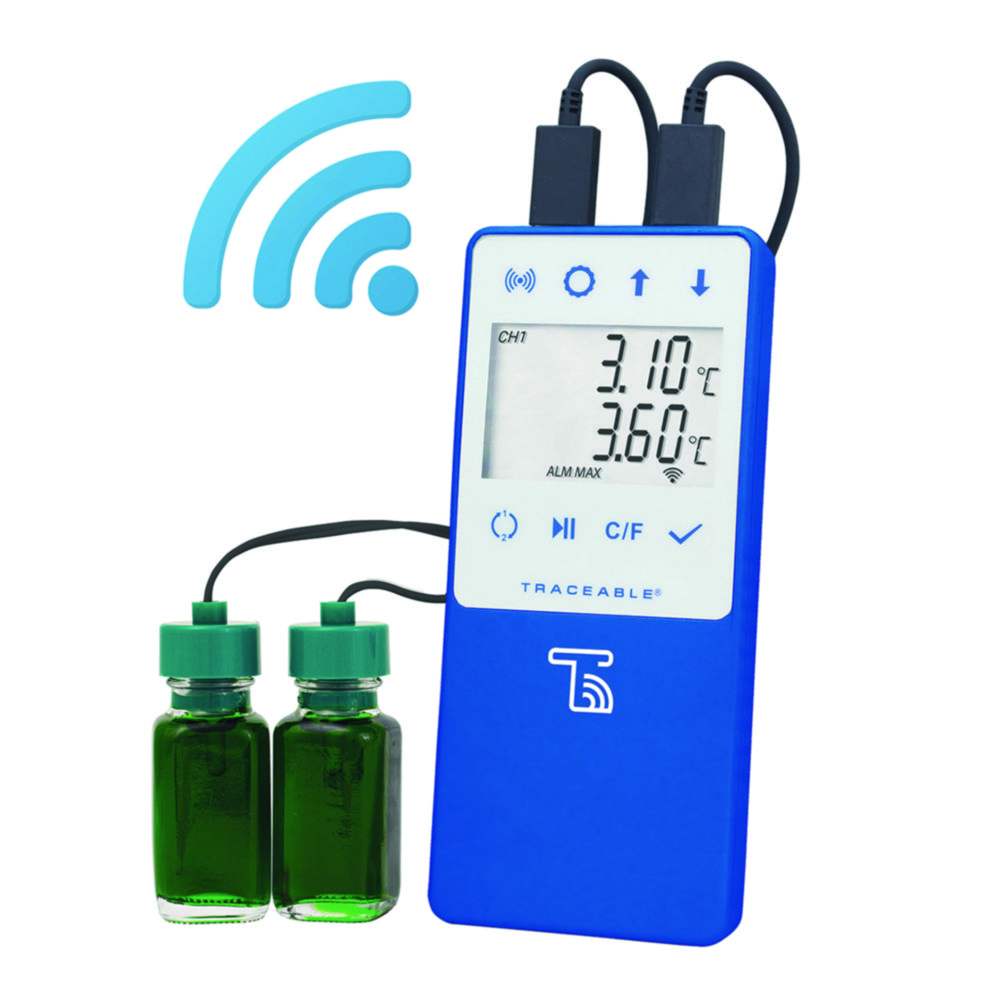

Wireless Temperature data logger TraceableLIVE®, with 2 bottle probes
