Temperature sensors for Laboratory regulator series KM-RX
Product number:
9642672
Manufacturer:
ISOHEAT GmbH
Packaging information:
Length:
143 mm
Width:
119 mm
Height:
10 mm
Weight:
0.045 kg
Description

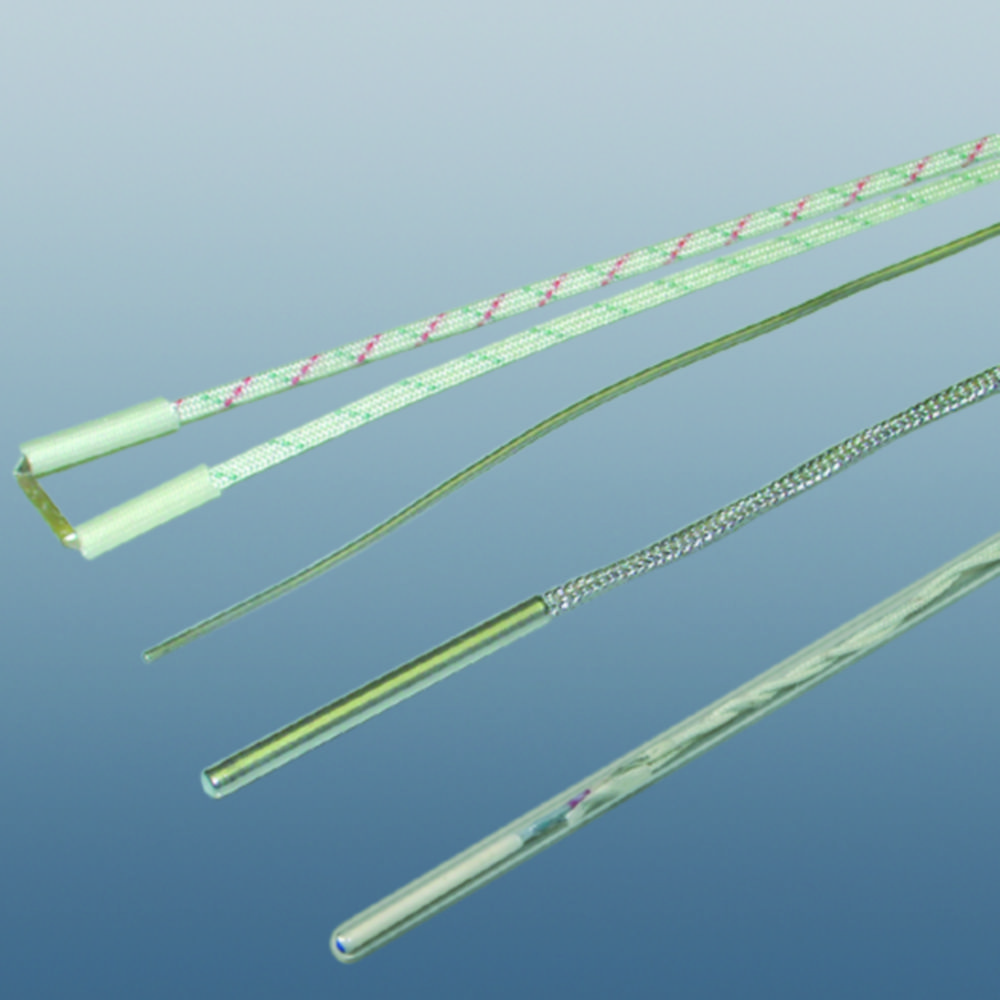

LabHEAT®-sensors. Suitable for temperature control and KM-KM-RX1001 RX1004 with permanently attached cable, with or without diode plug.
KM-TP2: Pt100, up to 400 °C, sheated element V2A, dia. 4 x 50 mm,
KM-TPG: Pt100, up to 250 °C, glass tube, dia. 6 x 40 0mm,
KM-TNS: NiCr-Ni, up to 1200 °C, rod sensor in Inconell, dia. 1.5 x 300 mm
KM-TNF: NiCr-Ni, up to 400 °C, flat sensor, 0.4 x 15 x 400 mm
Further models available on request.
KM-TP2: Pt100, up to 400 °C, sheated element V2A, dia. 4 x 50 mm,
KM-TPG: Pt100, up to 250 °C, glass tube, dia. 6 x 40 0mm,
KM-TNS: NiCr-Ni, up to 1200 °C, rod sensor in Inconell, dia. 1.5 x 300 mm
KM-TNF: NiCr-Ni, up to 400 °C, flat sensor, 0.4 x 15 x 400 mm
Further models available on request.
Properties
| Description: | without diode plug |
|---|---|
| For: | KM-RX1004 |
| Length m: | 2.0 |
| Manufacturer Article Number: | 62000120 |
| Type: | KM-TP2 |
