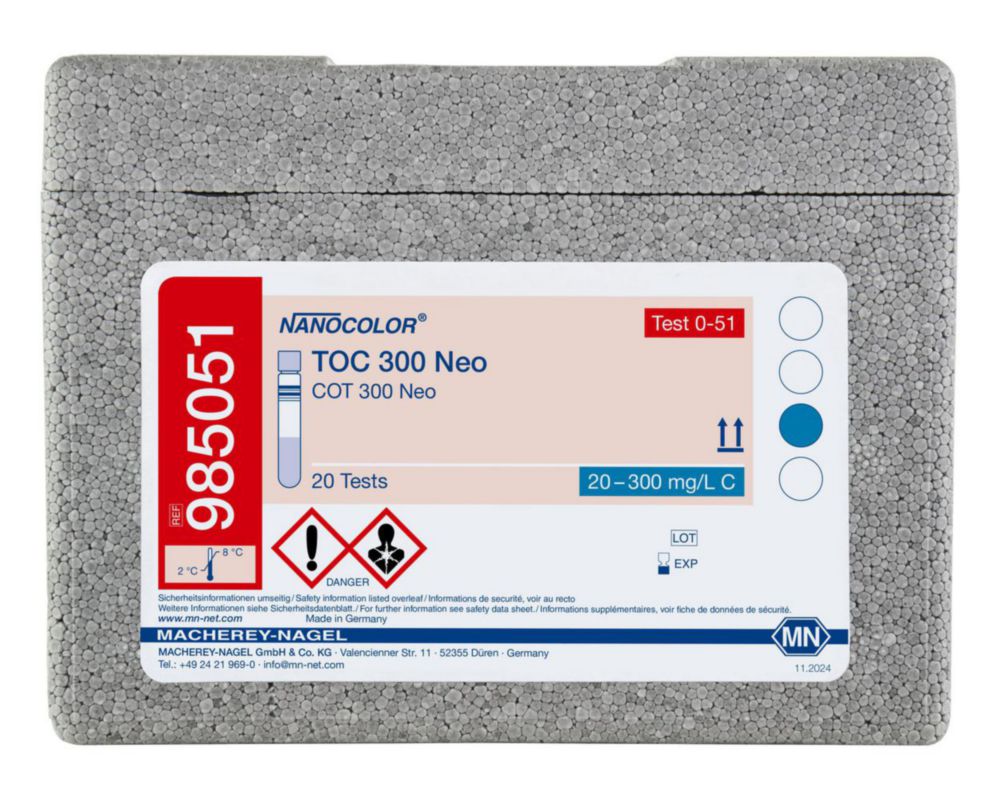

Tube tests NANOCOLOR® TOC Neo
Product number:
6493624
Manufacturer:
Macherey-Nagel GmbH & Co. KG
Packaging information:
Weight:
1.1 kg
Description
For the determination of TOC in water samples. The screw couplings make it easier to screw the cuvettes together. They ensure that the digestion is possible in a closed system.
| Hazardous Substance Data | |
| GHS |   |
| Signal word | Gefahr |
| H-Satz | H317, H319, H334 |
| P-Satz | P261sh, P280sh, P284, P302+P352, P333+P313, P342+P311, P362+P364, P501 |
| SDS | Link |
Properties
| GHS: | GHS07, GHS08 |
|---|---|
| Manufacturer Article Number: | 985051 |
| Max. measured value: | 300 mg/l |
| Measured range: | 20 ... 300 mg/l |
| Min. measured value: | 20 mg/l |
| Type: | TOC 300 Neo |
