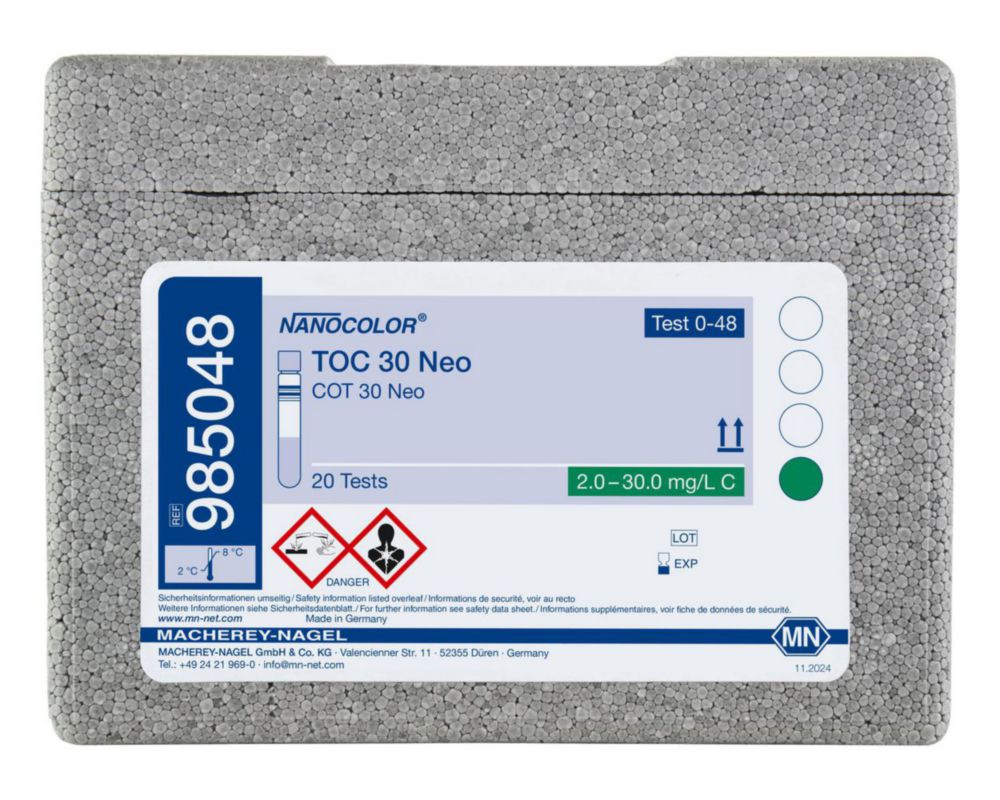

Tube tests NANOCOLOR® TOC Neo
Product number:
6493623
Manufacturer:
Macherey-Nagel GmbH & Co. KG
Packaging information:
Weight:
1 kg
Description
For the determination of TOC in water samples. The screw couplings make it easier to screw the cuvettes together. They ensure that the digestion is possible in a closed system.
| Hazardous Substance Data | |
| GHS |    |
| H-Satz | H317, H318, H334 |
| P-Satz | P261sh, P280sh, P284, P302+P352, P305+P351+P338, P310, P333+P313, P362+P364, P501 |
| SDS | Link |
Properties
| GHS: | GHS05, GHS07, GHS08 |
|---|---|
| Manufacturer Article Number: | 985048 |
| Max. measured value: | 30 mg/l |
| Measured range: | 2 ... 30 mg/l |
| Min. measured value: | 2 mg/l |
| Type: | TOC 30 Neo |
