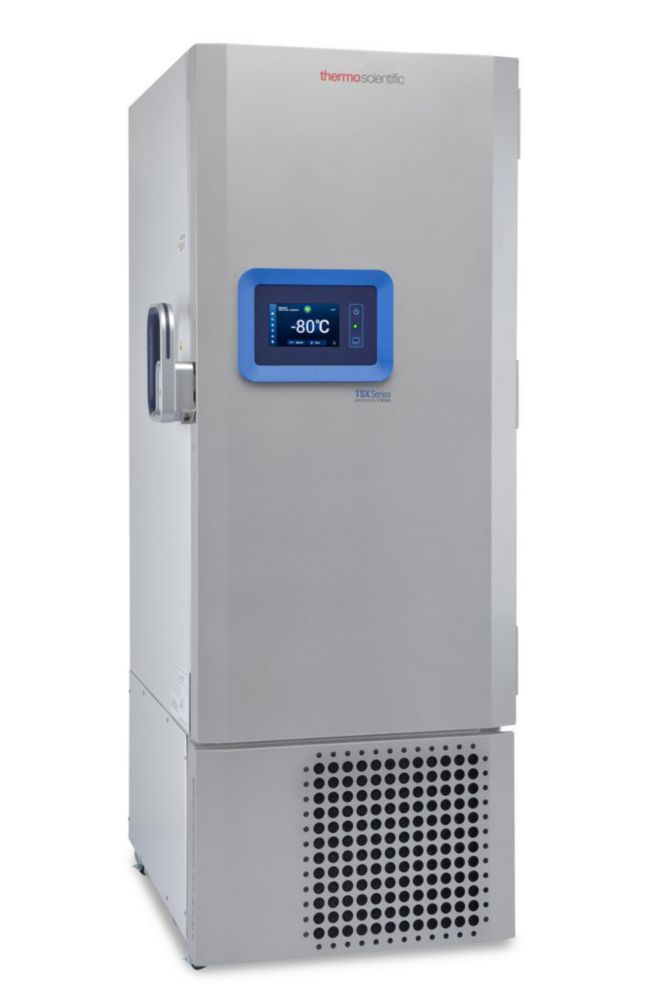

Ultra-low temperature freezer TSX Universal
€19,600.00*
Content:
1
Delivery according to order confirmation
Product number:
4699475
Manufacturer:
Thermo Elect.LED GmbH (Kendro)
Packaging information:
Description
The TSX Universal ultra-low temperature freezer ensures reliable and safe long-term storage of samples and has been designed to meet diverse research demands.
- Capacitive 7" touchscreen
- Natural refrigerants R290 and R170
- Thermal insulation: vacuum insulation panels (VIP) + water-blown PU foam
- 1 outer door, 2 stainless steel inner doors
- Universal V-Drive cooling technology offers consistently better performance: tighter peak fluctuations, uniformity, stability, faster pull-down, and shorter recovery times
- Audible and visual alarms
- Very quiet operation
- Multiple access ports
- Easy-roll castors
- Sustainable design reduces environmental impact
Properties
| Depth int.: | 719 mm |
|---|---|
| Ext. depth: | 955 mm |
| Ext. height: | 1981 mm |
| Ext. width: | 719 mm |
| External dimensions (WxDxH): | 719 x 955 x 1,981 mm |
| Height int.: | 1301 mm |
| Int. width: | 588 mm |
| Internal dimensions (WxDxH): | 588 x 719 x 1,301 mm |
| Manufacturer Article Number: | TSX40086FA |
| Max. temperature: | -40 °C |
| Max. voltage: | 230 V |
| Min. temperature: | -86 °C |
| Min. voltage: | 100 V |
| No. of chambers: | 1 |
| No. of doors: | 1 |
| No. of shelves: | 4 |
| Nominal capacity: | 549 l |
| Power supply: | 100 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | -86 ... -40 °C |
| Type: | TSX40086FA |
| Type of auxiliary energy: | Mains connection |
| Weight: | 270 kg |
| With glass door: | No |
