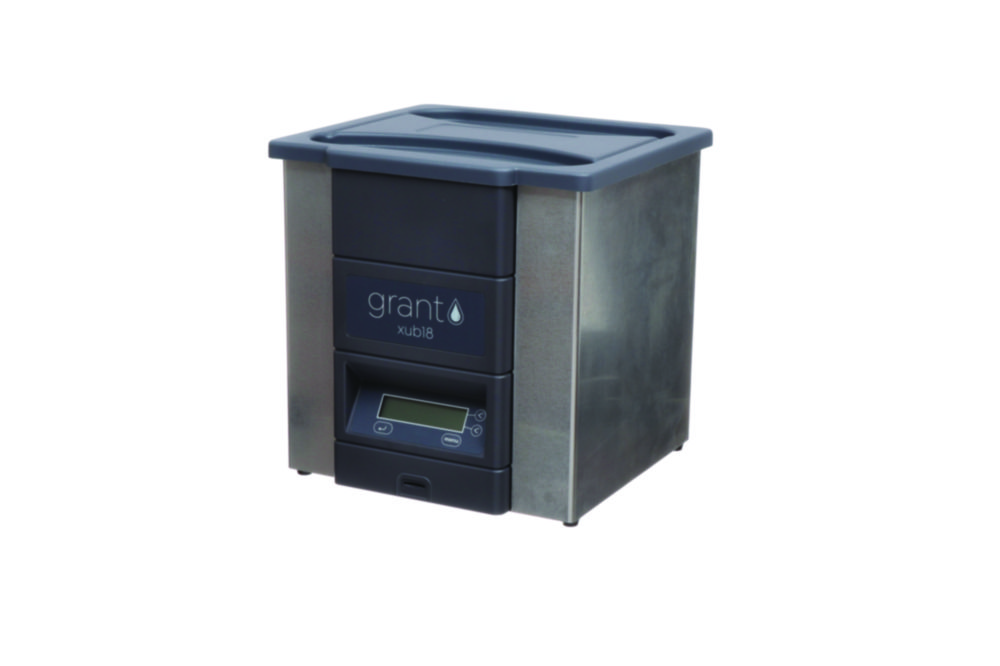

Ultrasonic baths XUB series, digital
Product number:
6272538
Manufacturer:
Grant Instruments Ltd.
Packaging information:
Description
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments. These baths offer high performance giving an accurate and precise ultrasonic process with a uniform level of ultrasonic activity.
Scope of supply: Ultrasonic bath with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution (1 bottle of 1 l), SD card and drain tap
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Temperature range from ambient +5 to 70 °C
- Timer 0 to 99 min
- Drain outlet valve 3/8'' BSP
- Accurate process control of time, temperature, ultrasonic activity, degas and power
- Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
- Adjustable power that can be reduced from 100 to 50 % in 5 % increments
- Suitable for sophisticated appliances in the scientific sector such as degassing, sonochemistry and fluid dissolution
Scope of supply: Ultrasonic bath with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution (1 bottle of 1 l), SD card and drain tap
Properties
| Depth int.: | 347 mm |
|---|---|
| Display: | Digital |
| Heating capacity: | 450 W |
| Height int.: | 366 mm |
| Int. width: | 374 mm |
| Internal dimensions (WxDxH): | 374 x 347 x 366 mm |
| Manufacturer Article Number: | XUB18 |
| Max. temperature: | 70 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| Nominal capacity: | 17.5 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | RT+5 ... 70 °C |
| Temperature addition: | RT |
| Type: | XUB18 |
| Type of auxiliary energy: | Mains connection |
| Ultrasonic frequency: | 38 kHz |
| Ultrasonic power: | 300 W |
| Weight: | 10.2 kg |
| With stopcock: | Yes |
Skip product gallery
From
€1,257.00*
Other customers also bought
Grant Instruments Ltd.
Grant Instruments Ltd.

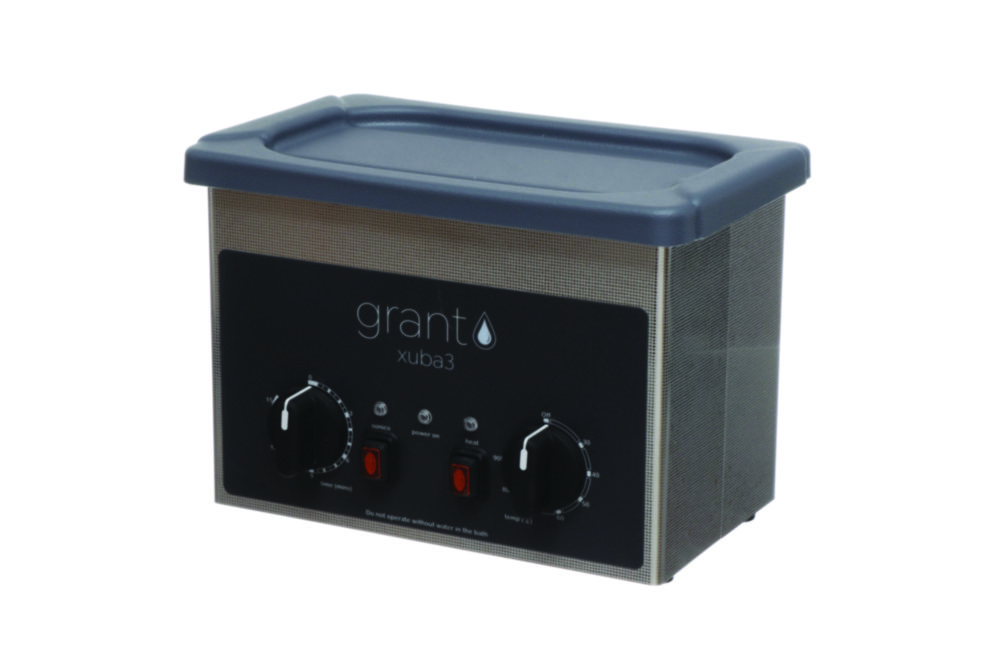

Ultrasonic baths XUBA3, analogue, with heating
