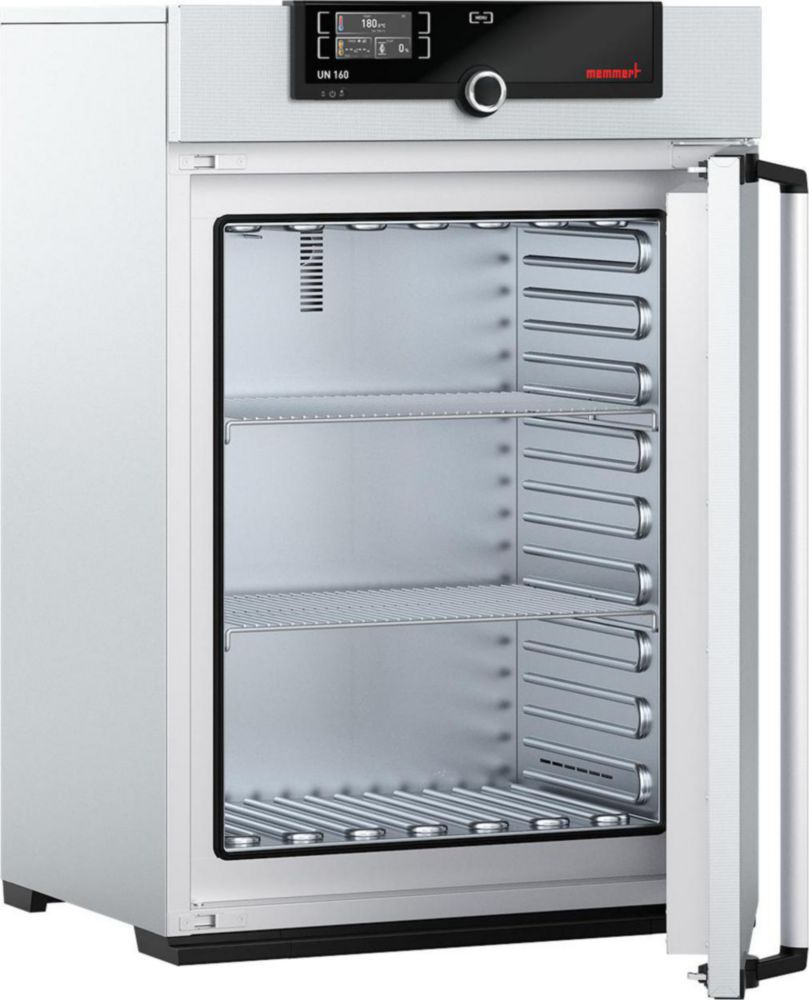

Universal ovens UN
Product number:
9869685
Manufacturer:
Memmert GmbH + Co. KG
Packaging information:
Weight:
98 kg
Description
The all-round genius among heating ovens covers a multitude of applications, ideally at temperatures above 50 °C. The fresh air is preheated in the pre-heating chamber to avoid temperature fluctuations.
SingleDISPLAY: ControlCOCKPIT with one colour display
You can find a detailed description of the "SingleDISPLAY" model at www.memmert.com
- Natural convection
SingleDISPLAY: ControlCOCKPIT with one colour display
You can find a detailed description of the "SingleDISPLAY" model at www.memmert.com
Properties
| Depth int.: | 400 mm |
|---|---|
| Ext. depth: | 584 mm |
| Ext. height: | 1104 mm |
| Ext. width: | 745 mm |
| External dimensions (WxDxH): | 745 x 584 x 1,104 mm |
| Height int.: | 720 mm |
| Int. width: | 560 mm |
| Internal dimensions (WxDxH): | 560 x 400 x 720 mm |
| Manufacturer Article Number: | UN160 |
| Material interior: | Stainless steel 1.4301 |
| Max. no. of inserts: | 8 |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| Nominal capacity: | 161 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 3200 W |
| Temperature: | RT+5 ... 300 °C |
| Temperature addition: | RT |
| Type: | UN160 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 96 kg |
| With timer: | Yes |
