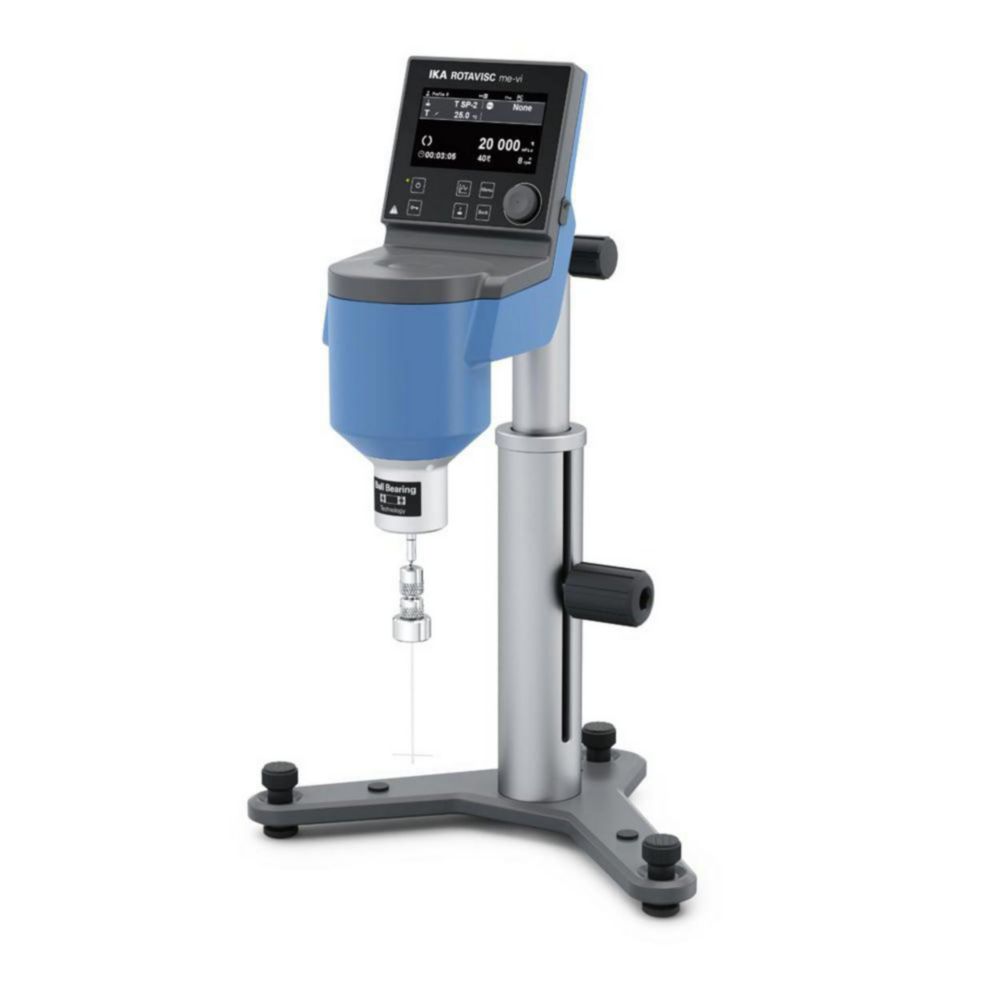

Viscometers ROTAVISC SBS Complete
Product number:
4699999
Manufacturer:
IKA-Werke GmbH & Co.KG
Packaging information:
Weight:
12.89 kg
Description
Viscometers with a large range of functions to determine the viscosity of liquids in all areas of application, ranging from laboratory to quality control. The devices are suited for different viscosity ranges. With the optional software labworldsoft 6 visc, several devices can be operated at the same time, thus expanding data processing and connecting thermostats.
Equipped with advanced ball bearing technology for demanding applications such as high sample throughput or frequent spindle changes
Scope of supply: Viscometers, stand ROTASTAND, spindles SP set-2, temperature sensor PT 100.8, protective bracket
- Highest measurement accuracy
- Stepless speed adjustment
- 4.3" TFT display
- Digital level
- Simple ramp function
- With connection for ext. PT100 sensor
Scope of supply: Viscometers, stand ROTASTAND, spindles SP set-2, temperature sensor PT 100.8, protective bracket
Properties
| Depth: | 372 mm |
|---|---|
| Dimensions (WxDxH): | 351 x 372 x 629 mm |
| Height: | 629 mm |
| IP code: | IP 40 |
| Interfaces: | RS 232, USB |
| Manufacturer Article Number: | 0010013824 |
| Max. Viscosity: | 40000000 mPa·s |
| Max. speed: | 200 1/min |
| Max. torque: | 0.7187 mNm |
| Max. voltage: | 240 V |
| Min. speed: | 0.01 1/min |
| Min. viscosity: | 100 mPa·s |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/CH |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Reproducibility: | 2 % |
| Speed: | 0.01 ... 200 1/min |
| Torque: | 0.7187 mNm |
| Type: | ROTAVISC SBS me-vi Complete |
| Type of auxiliary energy: | Mains connection |
| Viscosity: | 100 ... 40,000,000 mPa·s |
| Weight: | 7.1 kg |
| Width: | 351 mm |
