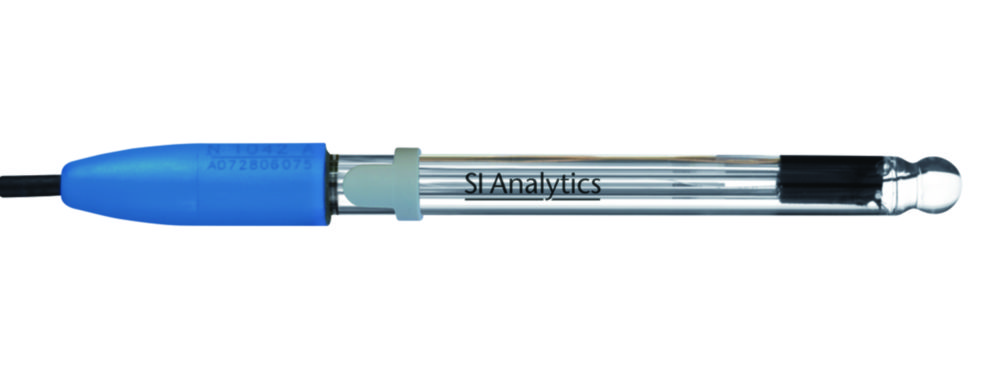

pH-Electrodes ScienceLine
Product number:
9041217
Manufacturer:
Xylem Analytics Germany (SI)
Packaging information:
Length:
255 mm
Width:
53 mm
Height:
55 mm
Weight:
0.165 kg
Description
Glass shaft, electrolyte KCl 3 mol/l, Silamid® reference system (N 6480 Eth with electrolyte L 5034 and N 6480 eis with electrolyte L 5014).
Properties
| Cable length: | 1 m |
|---|---|
| Connection plug: | DIN + 4 mm banana |
| Diaphragm: | Ceramic |
| Manufacturer Article Number: | 285104541 |
| Material shaft: | Glass |
| Max. pH value: | 14 |
| Max. temperature: | 100 °C |
| Min. pH value: | 0 |
| Min. temperature: | -5 °C |
| Shaft length: | 120 mm |
| Shaft Ø: | 12 mm |
| Shape membrane: | Sphere |
| Temperature: | -5 ... 100 °C |
| Temperature sensor: | Pt 1000 |
| Type: | N 1042 A |
| UNSPSC: | 41115604 |
| pH range: | 0 ... 14 |
