pH electrodes for pH Meter testo 206-pH3
Product number:
7036901
Manufacturer:
Testo SE & CO KGaA
Packaging information:
Length:
275 mm
Width:
123 mm
Height:
55 mm
Weight:
0.192 kg
Description

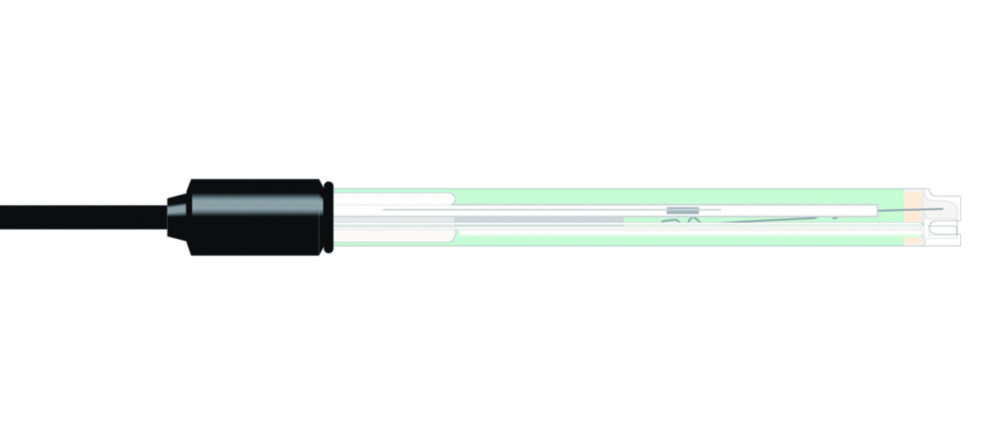

pH electrodes with gel electrolyte, BNC plug and fixed cable. Incl. wetting cap.
Properties
| Cable length: | 120 cm |
|---|---|
| Connection plug: | BNC |
| Diaphragm: | Single Pore |
| Electrolyte: | Gel |
| Manufacturer Article Number: | 06501623 |
| Material shaft: | Glass |
| Max. pH value: | 14 |
| Max. temperature: | 80 °C |
| Min. pH value: | 0 |
| Min. temperature: | -10 °C |
| Shaft length: | 120 mm |
| Shaft Ø: | 12 mm |
| Temperature: | -10 ... 80 °C |
| Temperature sensor: | Pt 1000 |
| UNSPSC: | 41-11-56-04 |
| pH range: | 0 ... 14 |
