Dispersing tools for disperser OV 625 Digital/OV 725 Digital
Product number:
4691693
Manufacturer:
Velp Scientifica SRL
Packaging information:
Description

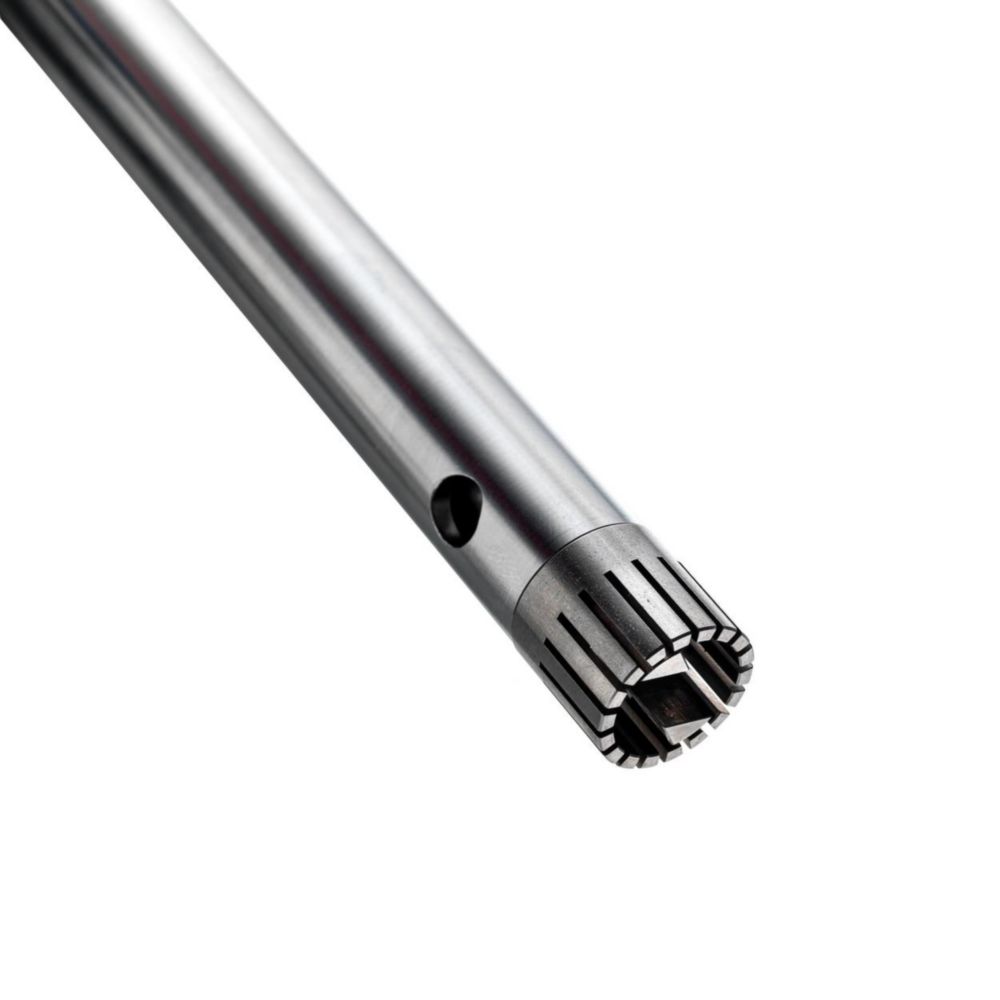

Dispersing tool with rotor/stator coupling for use with the disperser.
- Manufactured of stainless steel and a PTFE seal
- Easy changing and installation thanks to a quick connection system
- Ready-to-use
- Quick disassembly and reassembly for cleaning and maintenance purposes
- Suitable for solvents
- Max. allowable working temperature is 180 °C
Properties
| Capacity: | 50 ... 2,000 ml |
|---|---|
| Diam. rotor / stator mm: | 15/20 |
| Immersion depth mm: | 40 ... 175 |
| Manufacturer Article Number: | A00000462 |
| Max. capacity: | 2000 ml |
| Max. speed: | 25000 1/min |
| Min. capacity: | 50 ml |
| Tangential speed m / sec.: | 19.6 |
| Type: | D20-S20F-P-R20C |
| Ult. fineness suspensions / emulsions µm: | 5 ... 40/1 ... 7 |
