Platform scales DS, IoT-Line
Product number:
6235614
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
8 kg
Description

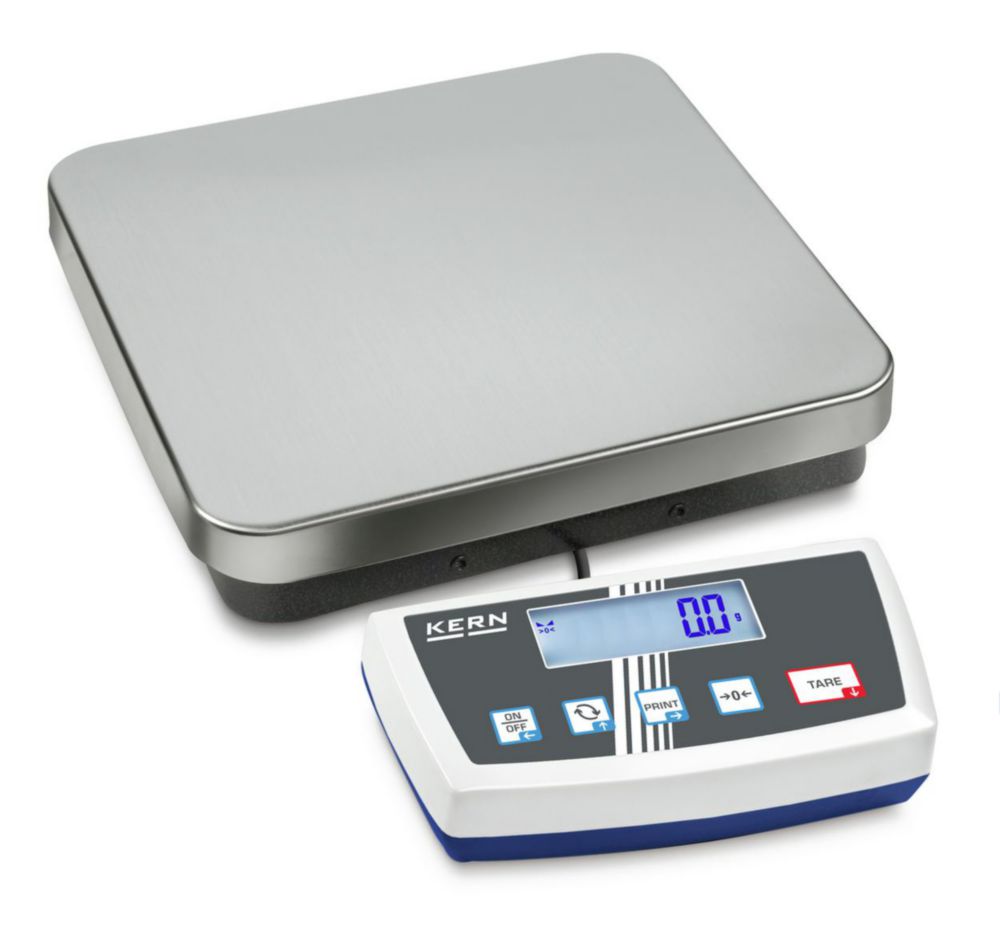

High-capacity precision balance, ideal for high volume or heavy samples to be weighed with a high degree of accuracy. The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers.
Scope of supply: Platform scale, protective working cover
- Large backlit LCD display
- Numerical subtraction of tare weight
- Freely programmable weighing unit
- Dimensions of display device (W×D×H): 225×115×60 mm
Scope of supply: Platform scale, protective working cover
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 318 mm |
| Depth weighing plate: | 318 mm |
| Dimensions (WxDxH): | 308 x 318 x 75 mm |
| Height: | 75 mm |
| Linearity: | ±0.15 g |
| Manufacturer Article Number: | DS 8K0.05 |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 8 kg |
| Max. voltage: | 240 V·AC |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.05 g |
| Reproducibility: | 0.05 g |
| Type: | DS 8K0.05 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41-11-15-17 |
| Warranty: | 3 years |
| Weighing plate (WxD): | 308 x 318 mm |
| Weight: | 8 kg |
| Width: | 308 mm |
| Width weighing plate: | 308 mm |
